C.R. Laurence CPF20BBS Brushed Stainless Curved Top Door Patch Fitting with 1NT304 Insert offers a seamless and stylish solution for modern door applications. Designed for use with monolithic tempered glass, this fitting accommodates both 3/8" and 1/2" (10 mm and 12 mm) glass thicknesses, ensuring versatility in various installations. With a pivot setback of 2-11/16" (68 mm), the CPF20BBS integrates effectively with overhead concealed door closers featuring a 9/16" (14 mm) square and 3/4" (19 mm) long spindle. The unit comes complete with gaskets, a helpful template, and clear instructions for straightforward installation. Important guidelines dictate a maximum door height of 102" (2591 mm), a maximum weight of 194 lbs (88 kg), and a maximum width of 42" (1092 mm). For doors exceeding these limits, full door rails should be utilized. Please note that this fitting is not suitable for laminated glass. The brushed stainless steel finish not only enhances aesthetics but also requires periodic maintenance to retain its factory appearance. Elevate your architectural designs with the durable and elegant CPF20BBS, a product that combines functionality and style for discerning professionals and homeowners alike.

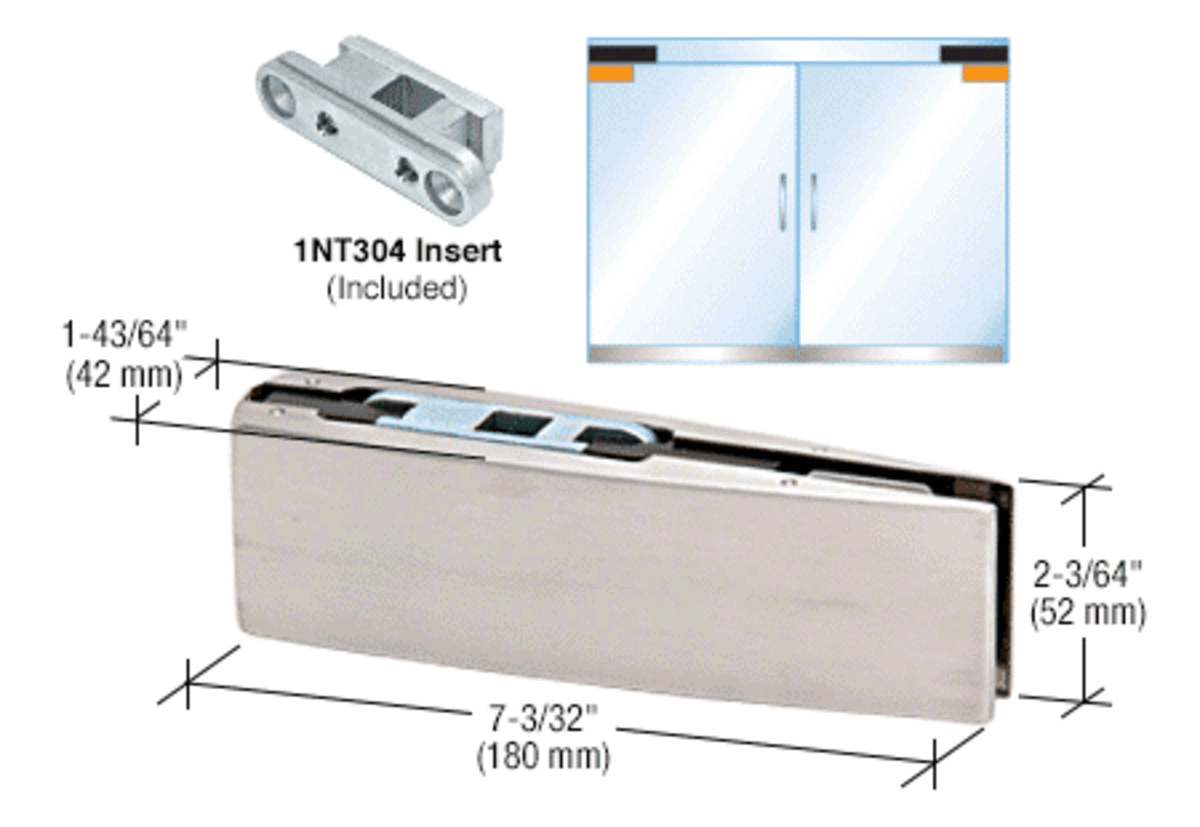

Brushed Stainless Curved Top Door Patch Fitting with 1NT304 Insert
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Brushed Stainless Steel
Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)
Insert Type: 1NT304
Pivot Setback: 2-11/16
Series: Curved
Shipping Limitations: None
Type: Top
With Insert: Yes
