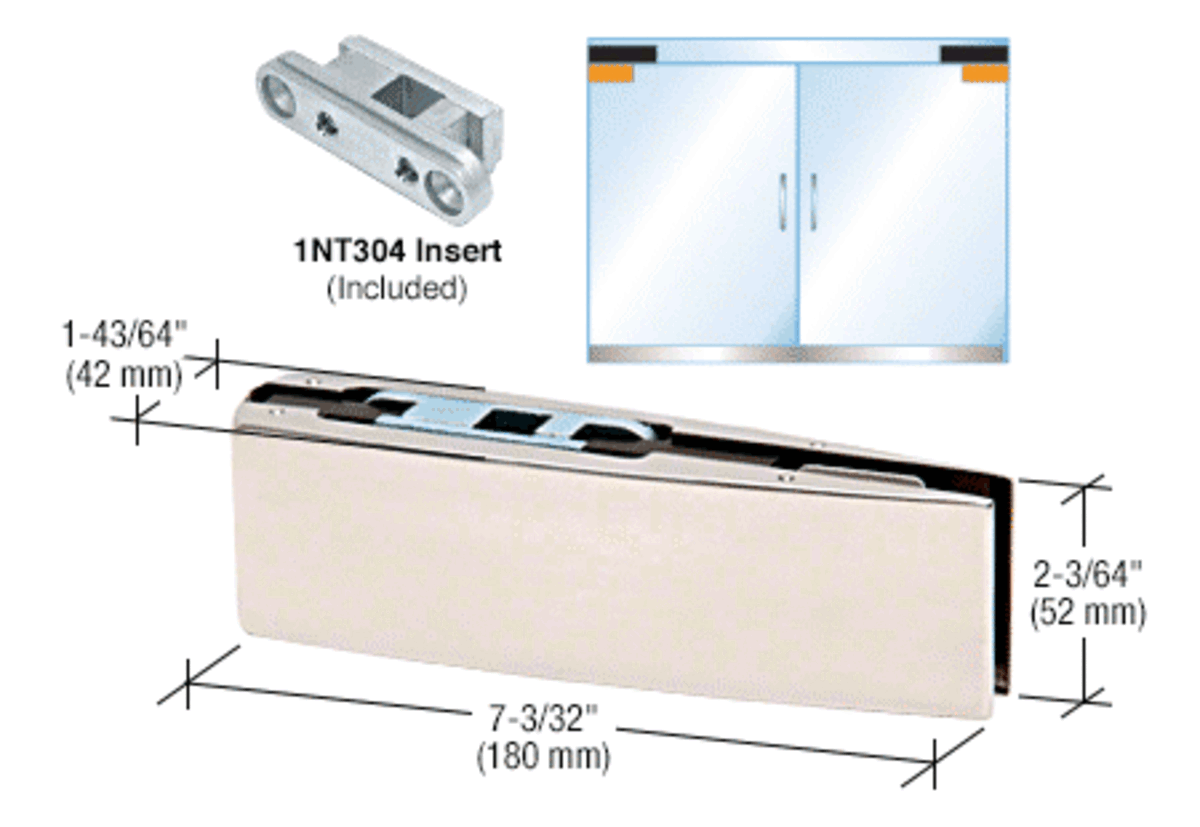

CRL CPF20BPS Polished Stainless Curved Top Door Patch Fitting with 1NT304 Insert

Your Price: $132.05

Retail Price:$158.08

Your Savings:$26.03(16%)

The CRL CPF20BPS Curved Top Door Patch Fitting offers polished stainless steel design for 3/8" or 1/2" glass applications.

Part Number : CRL_CPF20BPS

Availability: 11 In Stock

Quantity

Description

CRL CPF20BPS Polished Stainless Curved Top Door Patch Fitting with 1NT304 Insert

C.R. Laurence CPF20BPS Polished Stainless Curved Top Door Patch Fitting with 1NT304 Insert is the ideal solution for modern glass door applications, seamlessly combining style and functionality. Designed for use with 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass, this fitting ensures a secure and elegant installation. The 2-11/16" (68 mm) pivot setback makes it compatible with overhead concealed door closers featuring a 9/16" (14 mm) square and 3/4" (19 mm) long spindle. Included with the CPF20BPS are gaskets for easy fitting with both glass thicknesses, along with a template and detailed instructions for straightforward installation. Notably, the glass fabrication requires a 3/4" (19 mm) diameter hole and corner notch, ensuring precision and reliability during setup. It is essential to note that this fitting is not suitable for laminated glass and has specific maximum dimensions: a height of 102" (2591 mm), weight of 194 lbs (88 kg), and width of 42" (1092 mm). For doors exceeding these limits, full door rails should be considered. Constructed from polished stainless steel, the CPF20BPS not only resists corrosion but also requires periodic maintenance to preserve its pristine finish. Elevate your glass door installations with C.R. Laurence’s premium quality fittings.

Polished Stainless Curved Top Door Patch Fitting with 1NT304 Insert

2-11/16" (68 mm) Pivot Setback
For 3/8" or 1/2" (10 or 12 mm) Glass
Use Monolithic Tempered Glass

The CRL Curved Top Door Patch Fitting includes the 1NT304 Insert for use with our Overhead Concealed Door Closers that have a 9/16" (14 mm) square and 3/4" (19 mm) long spindle. Gaskets are supplied that allow this Patch Fitting to be used with either 3/8" or 1/2" (10 or 12 mm) Glass.

GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) Diameter
Hole and Corner Notch

COMES WITH:
Template and Instructions

IMPORTANT NOTE: Door Closer needs to be adjusted back 1/16" (1.6 mm) to achieve 2-11/16" (68 mm) pivot setback to work with this patch fitting.

Product Warning:

These fittings are not for use with Laminated Glass.

The following guidelines are to be used when making a door using this hardware:
MAXIMUM HEIGHT: 102" (2591MM)
MAXIMUM WEIGHT: 194 LBS (88KG)
MAXIMUM WIDTH: 42" (1092MM)
If the door exceeds any of these limitations, full door rails should be used.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Stainless Steel Advisory:

Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.

Attributes

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Finish/ Color:: Polished Stainless Steel

Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)

Insert Type: 1NT304

Pivot Setback: 2-11/16

Series: Curved

Shipping Limitations: None

Type: Top

With Insert: Yes
