CRL CPF34BS Brushed Stainless Curved Wall Mount Transom Patch

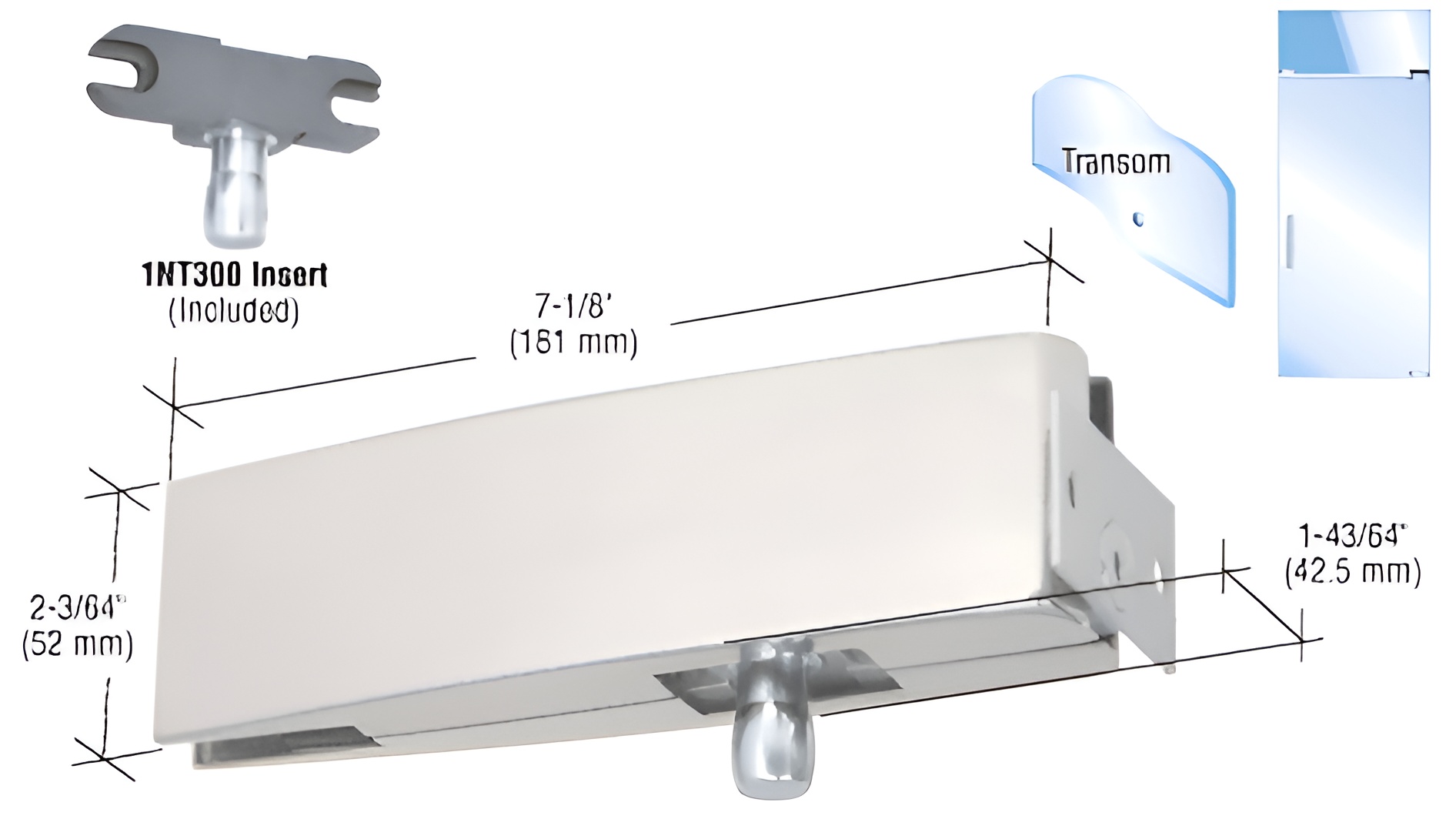

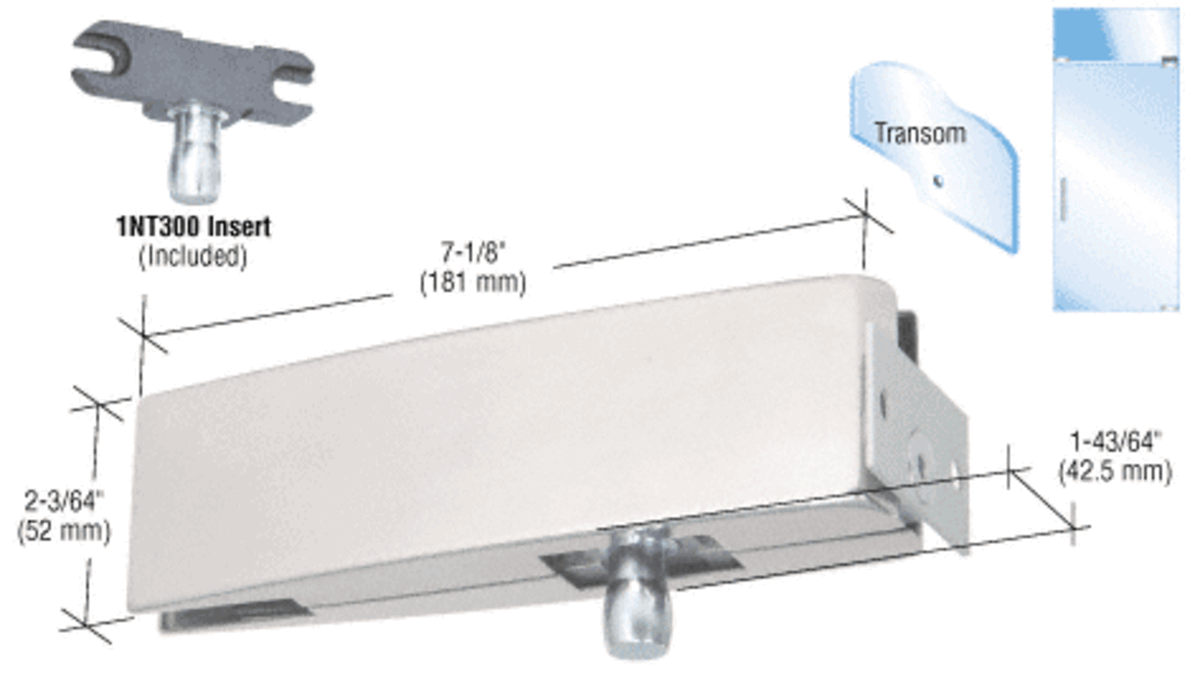

C.R. Laurence CPF34BS Brushed Stainless Wall Mount Transom Curved Patch is expertly designed to provide robust support for transoms mounted from a side jamb. Compatible with 2-11/16" (68 mm) pivot setback door patch fittings, this versatile patch accommodates both 3/8" and 1/2" (10 or 12 mm) glass thicknesses, ensuring a secure fit for your glazing needs. Included with the patch is a 1NT300 Top Insert, which allows for easy door mounting. For configurations requiring a double swinging door, the insert can be removed on the non-hinged side. Additionally, a 1NT306 Transom Patch Door Stop Insert can be utilized to create a one-way door, enhancing functionality. Glass fabrication is necessary, requiring a 3/4" (19 mm) diameter hole and corner notch, making installation straightforward for professionals. The product comes complete with a template and instructions, ensuring a smooth setup process. Constructed from brushed stainless steel, the CPF34BS is both aesthetically pleasing and durable. However, it's important to note that while stainless steel is resistant to corrosion, it is not completely rust-proof, so periodic maintenance is recommended to preserve its finish. Elevate your architectural projects with this reliable and stylish wall mount transom patch.

Brushed Stainless Wall Mount Transom Curved Patch

• Works with 2-11/16" (68 mm) Pivot Setback Door Patch Fittings
• For 3/8" or 1/2" (10 or 12 mm) Glass

Stainless Steel Advisory:

Resources

• CPF34 Template
• CRL Stainless Steel Disclaimer
• Glass Fabrication Details cpf34.pdf
