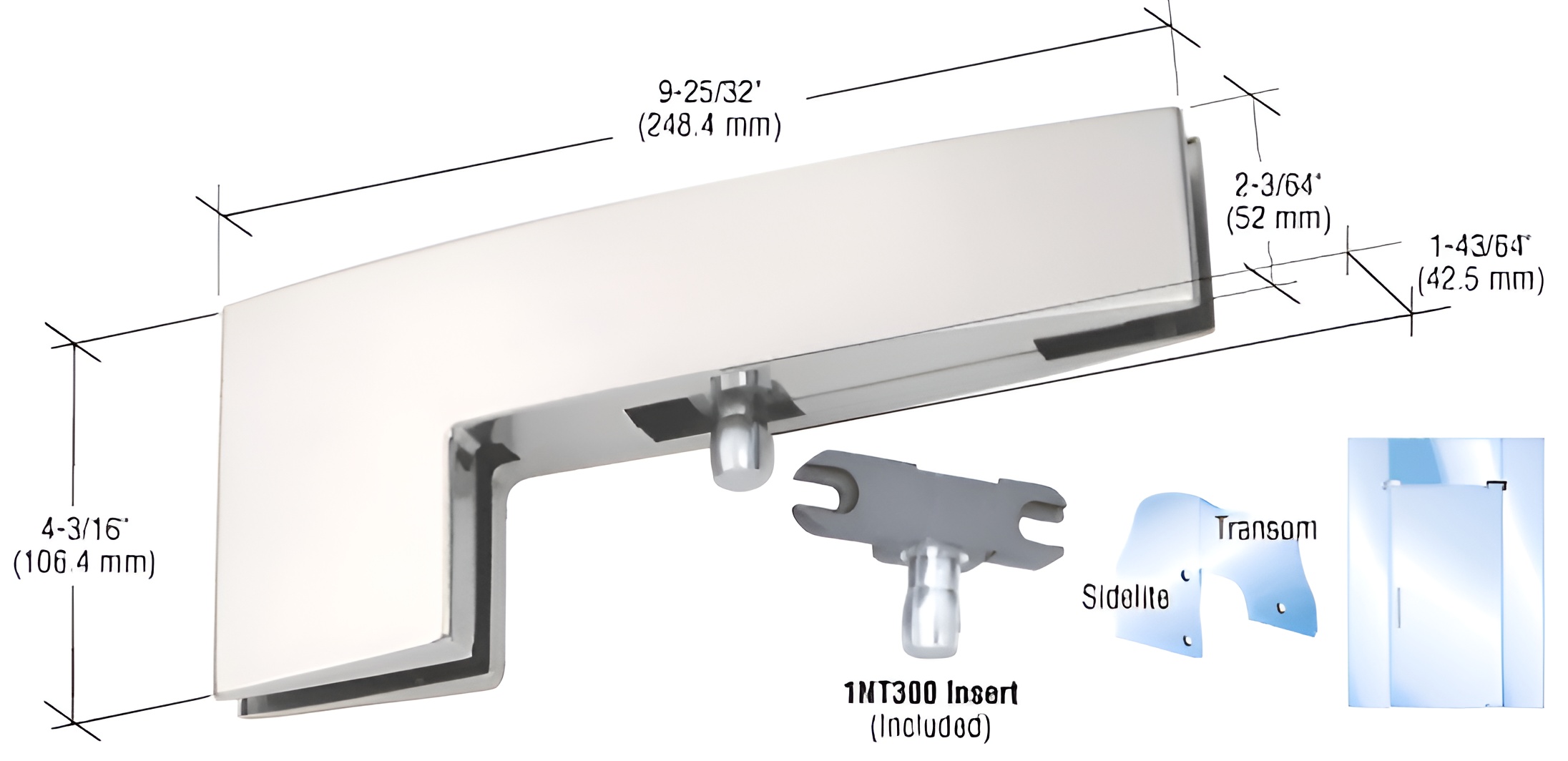

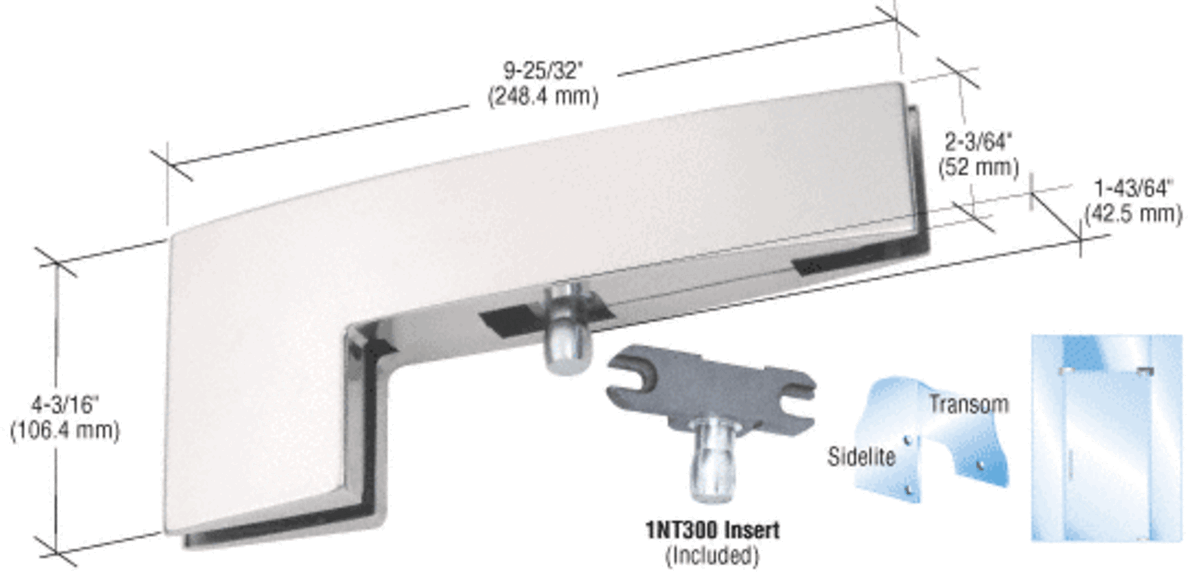

C.R. Laurence CPF40BS Brushed Stainless Sidelite Mounted Transom Curved Patch is expertly designed to support a transom from a sidelite glass panel, enhancing both functionality and aesthetics. This versatile patch is compatible with 2-11/16" (68 mm) Pivot Setback Door Patch Fittings and accommodates monolithic tempered glass in thicknesses of either 3/8" or 1/2" (10 or 12 mm). The unit includes a 1NT300 Top Insert for seamless door mounting, which can be easily removed on the non-hinged side to facilitate double swinging doors. For added flexibility, the 1NT306 Transom Patch Door Stop Insert can be employed to create a one-way door option, making it an ideal choice for various applications. To ensure precise installation, glass fabrication requires three 3/4" (19 mm) diameter holes and a corner notch. Each purchase comes complete with a comprehensive template and instructions, simplifying the installation process. Crafted from brushed stainless steel, this patch not only promotes a sleek, modern look but also provides durability. While resistant to corrosion, periodic maintenance is advised to preserve its factory finish. Elevate your architectural projects with the reliability and elegance of the C.R. Laurence CPF40BS.
Brushed Stainless Sidelite Mounted Transom Curved Patch
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Brushed Stainless Steel
Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)
Insert Type: 1NT300
Mounting Type: Sidelite
Series: Curved
Shipping Limitations: None
With Insert: Yes
