CRL CS10X10BR Polished Brass 10" Glass Mounted Pull HandleC.R. Laurence CS10X10BR Polished Brass 10" Solid Glass Mounted Standard Pull Handle combines elegance and functionality, making it an exceptional choice for glass installations. Designed for use with 3/8" to 3/4" (10 to 19 mm) thick monolithic tempered glass, this pull handle features a robust 1" (25 mm) diameter solid construction, available in a stunning polished brass finish. Installation is straightforward, requiring two 5/8" (16 mm) diameter holes for glass mounting. This model is equipped with through-bolts, matching finish metal washers, and rubber gaskets to ensure a secure fit and a finished look. With a mounting center-to-center distance of 10 in. (254 mm), it provides a comfortable grip while maintaining a sleek profile. The polished brass finish, while durable, is susceptible to oxidation, which can lead to a tarnished appearance over time; regular maintenance will ensure its beauty lasts. This versatile handle is suitable for various applications, enhancing both residential and commercial spaces. Enhance your glass entry systems with the C.R. Laurence CS10X10BR, where quality craftsmanship meets timeless design.

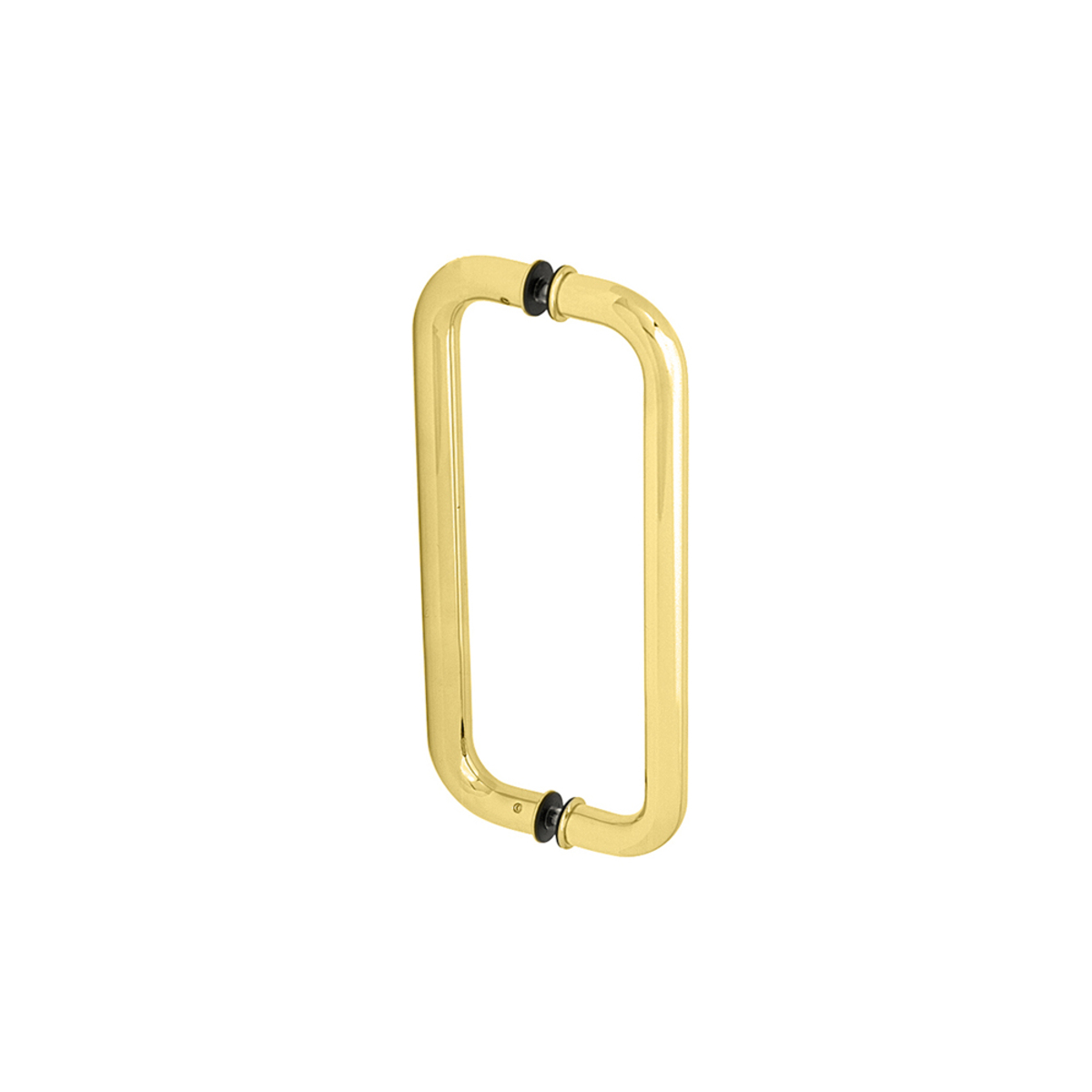

Polished Brass 10" Solid Glass Mounted Standard Pull Handle
- For Use with 3/8" to 3/4" (10 to 19 mm) Thick Glass
- 1" (25 mm) Diameter Solid Stainless Steel or Brass
- Use Monolithic Tempered Glass
This
CRL Glass Mounted Standard Pull Handle is available in several sizes and finishes.
SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) Glass
Construction: 1" (25 mm) Round Stainless Steel Tubing

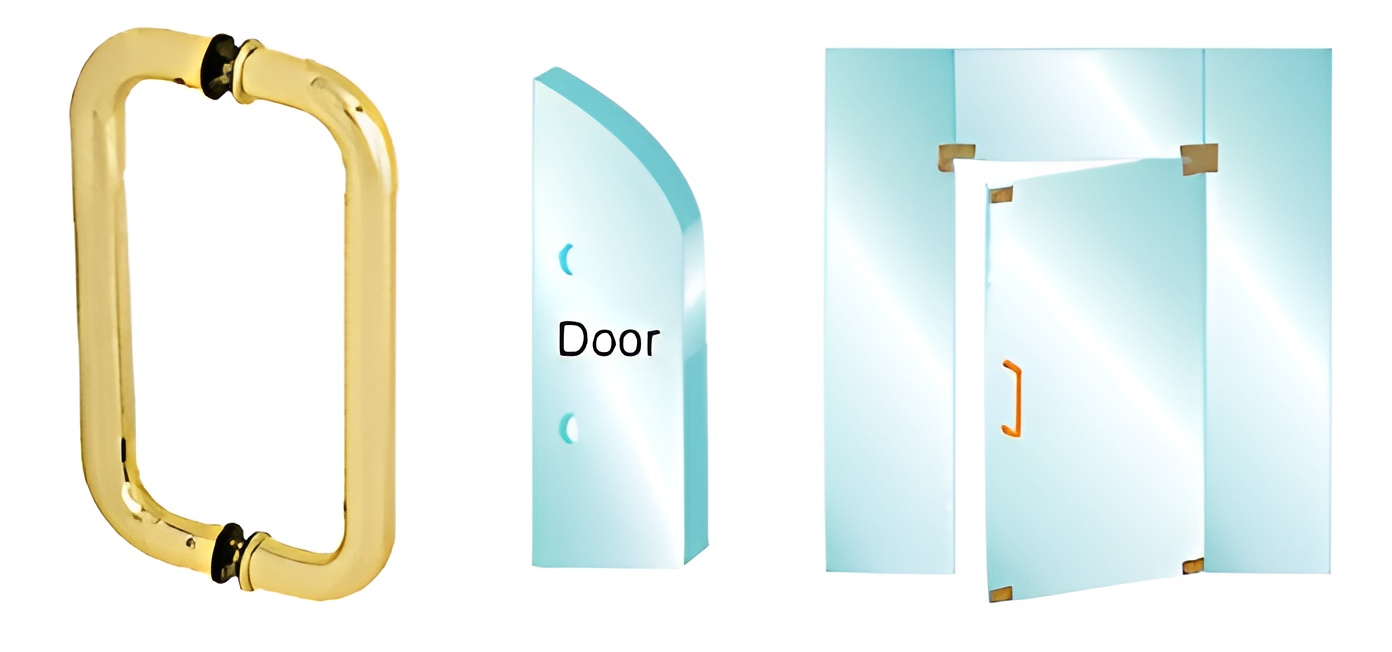

Glass Fabrication Required: Two 5/8" (16 mm) Diameter Holes
INCLUDES:
2 Each: Through-Bolts for Glass Mounting
4 Each: 1-1/4" (32 mm) Diameter Matching Finish
Metal Washers and Rubber Gaskets
Product Warning:
NOTE CRL Cat. No. TB2CH, TB4CH and F40WK will not work with the "CS" Series handles.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Polished Brass
Glazing Thickness: 3/8 in. To 3/4 in. (10 mm To 19 mm)
Mounting Center To Center: 10 in. (254 mm)
Mounting Hole Diameter: 5/8 in. (16 mm)
Mounting Type: Back-to-Back
Shipping Limitations: None
Style Washer Diameter: 1-1/4 in. (32 mm)
Style Washers: Yes
