C.R. Laurence CS2A 36" Cielo C-Shape Core Mount Stanchion is engineered for both aesthetic appeal and structural integrity, making it an ideal choice for high-altitude applications such as rooftop pools, dining areas, and lounges. This stanchion features a sleek 3-1/4" front trim and a 4-1/2" post depth, providing virtually unobstructed views while complying with IBC 2018 windload requirements. Constructed from durable 6005-T6 aluminum, the Cielo stanchion is available in heights of 6, 7, and 8 feet, ensuring versatility for various installation needs. Its design eliminates the need for horizontal extrusions, allowing for expansive glass spans while maintaining stability. The unique snap-in system for post covers simplifies the installation process and hides fasteners for a clean, streamlined appearance. Designed for use with 1/2" monolithic or 9/16" laminated glass, this stanchion can be surface or core mounted on steel or concrete, adapting to different project requirements. Standard finishes are available in Matte Black, Silver Metallic, and Sky White, allowing customization to fit any architectural style. With the C.R. Laurence Cielo Stanchion, you can achieve both elegance and functionality in your building projects.

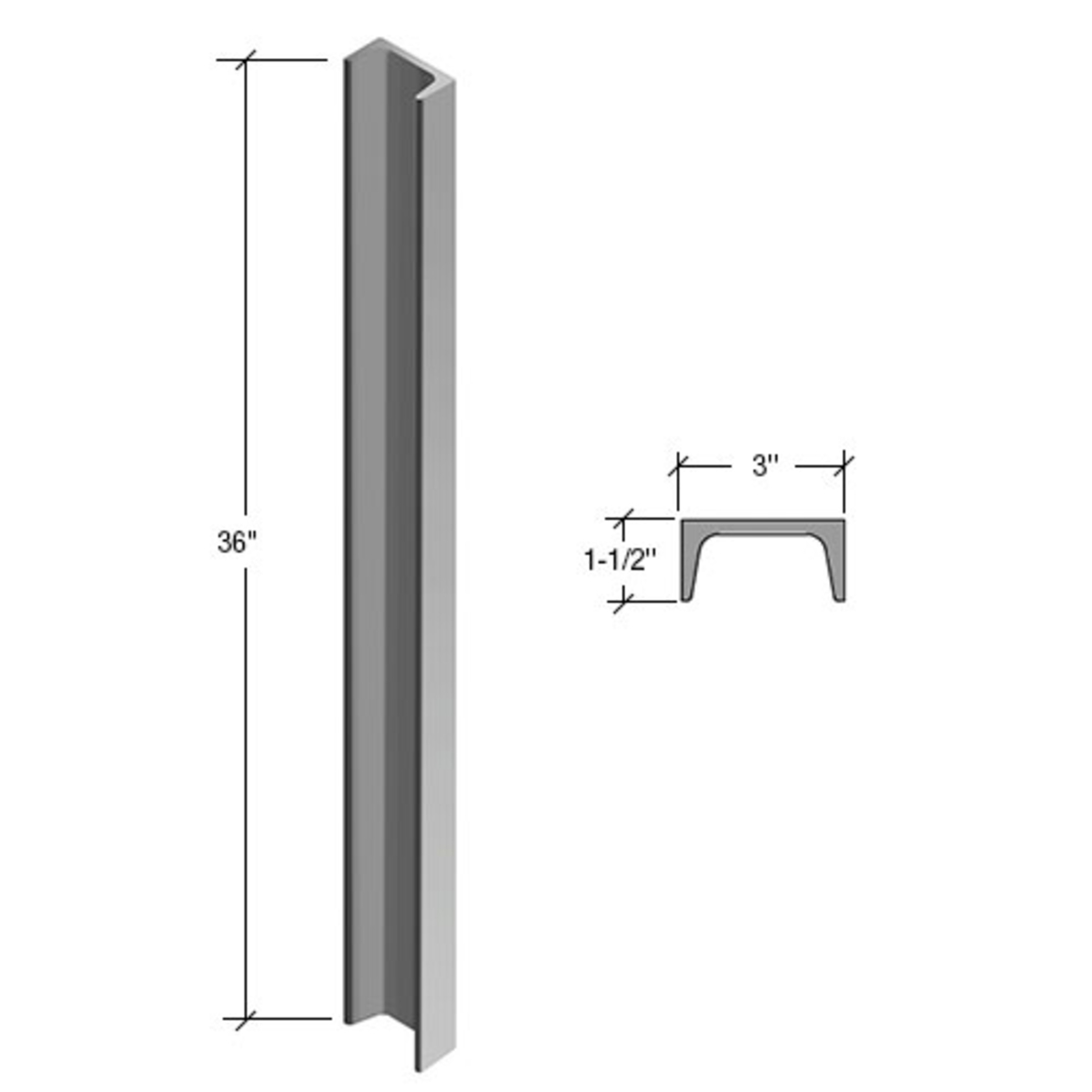

36" Cielo C-Shape Core Mount Stanchion
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Ship via: No UPS - Common Carrier Only
Alloy: 6005-T6
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Depth: 4-1/2 in. (114 mm)
Finish/ Color:: Specify
Glass Included: No
Glazing Thickness: 1/2 in. & 9/16 in. (12 mm & 14 mm)
Height: 36 in. (914 mm)
Material: Zinc Plated Steel
Shipping Limitations: No UPS - Common Carrier Only
Width: 3-1/4 in. (83 mm)
