C.R. Laurence CY18X18PS Polished Stainless Glass Mounted Round Tube Curved Shape Handle offers a sleek and modern design ideal for enhancing the aesthetic of glass doors. Measuring 18 inches in overall length, this handle is designed for back-to-back mounting using the provided through-bolts, ensuring a secure and stylish installation. Constructed from 1-inch diameter stainless steel tubing, it is compatible with tempered glass ranging from 3/8" to 3/4" (10 to 19 mm) thick. The handle includes two through-bolts for glass mounting and four 1-1/4" diameter matching finish metal washers along with rubber gaskets, providing everything needed for a professional finish. The polished stainless steel finish not only adds a touch of elegance but is also resistant to corrosion, making it a practical choice for both commercial and residential applications. To achieve optimal results, glass fabrication requires two 5/8" diameter holes. While stainless steel is durable, regular maintenance is advised to preserve its factory finish. The CY18X18PS handle is a perfect blend of form and function, offering strength and style for any glass entrance or interior system. Elevate your design with this sophisticated handle from C.R. Laurence.

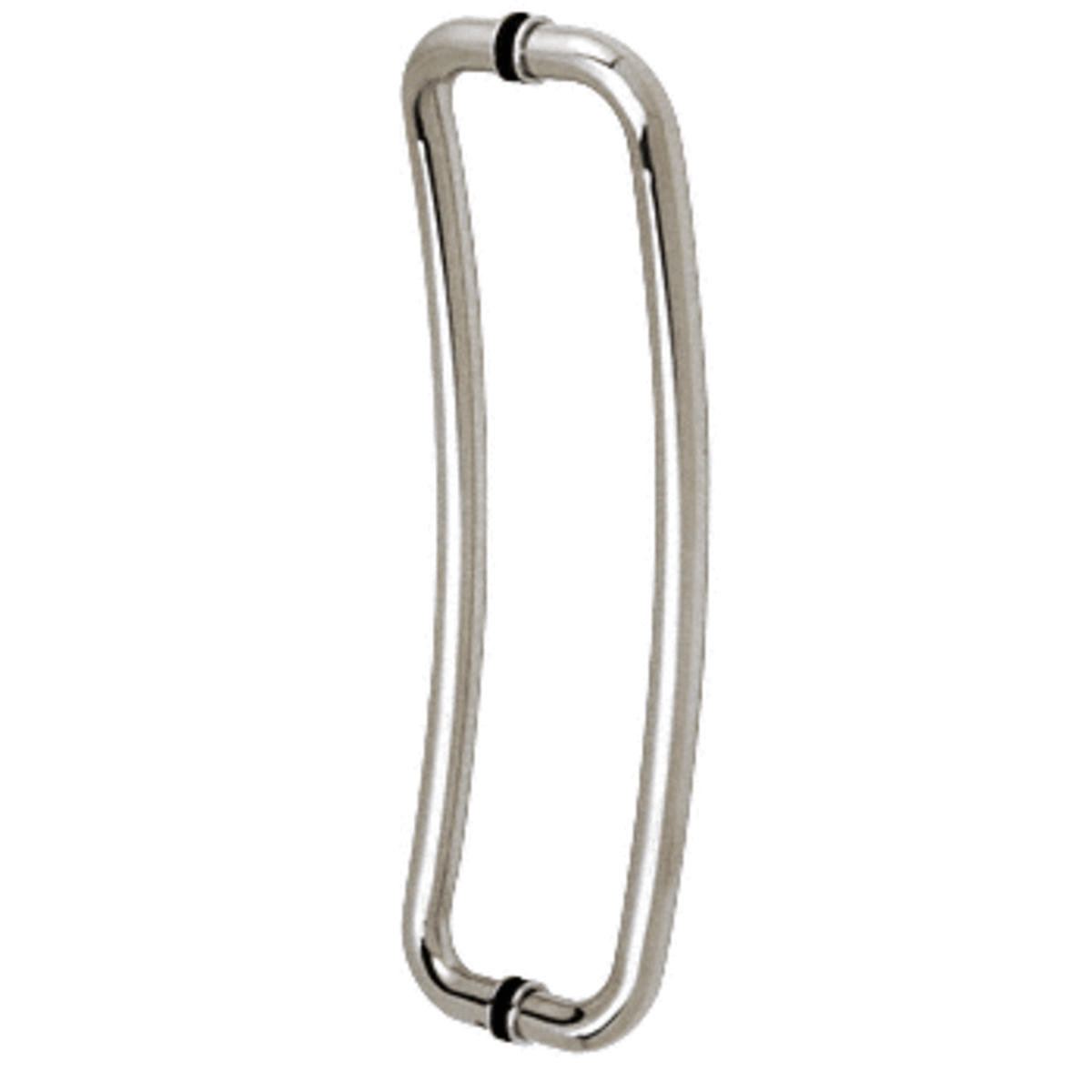

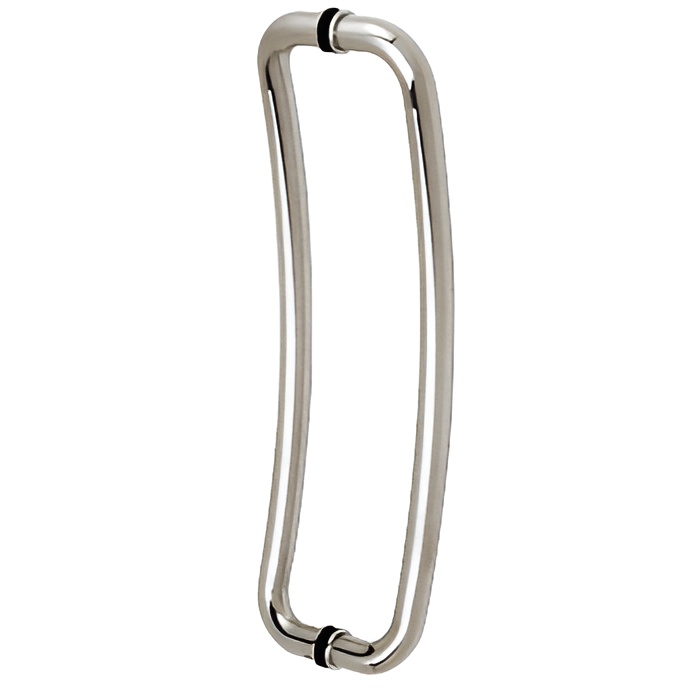

Polished Stainless Glass Mounted Round Tube Curved Shape Handle - 18" (455 mm)
CRL Round Tube Curved Pull Handle are for back-to-back mounting with supplied through-bolts. They are intended for use on doors made from 3/8" to 3/4" tempered glass. Stock size is 18" overall length. Standard finishes are polished stainless and brushed stainless. The pulls are constructed of 1" diameter stainless-steel tubing.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 1 in. (25 mm)
Finish/ Color:: Polished Stainless Steel
Glazing Thickness: 3/8 in. To 3/4 in. (10 mm To 19 mm)
Material: Stainless Steel
Mounting Center To Center: 18 in. (457 mm)
Mounting Hole Diameter: 5/8 in. (16 mm)
Mounting Type: Back-to-Back
Shipping Limitations: None
Style Washer Diameter: 1-1/4 in. (32 mm)
Style Washers: Yes
