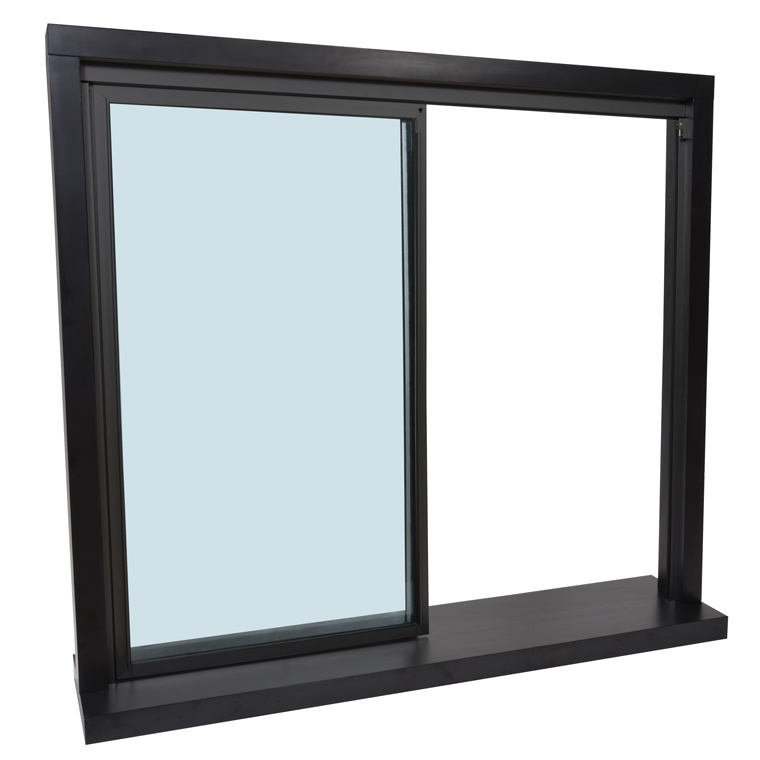

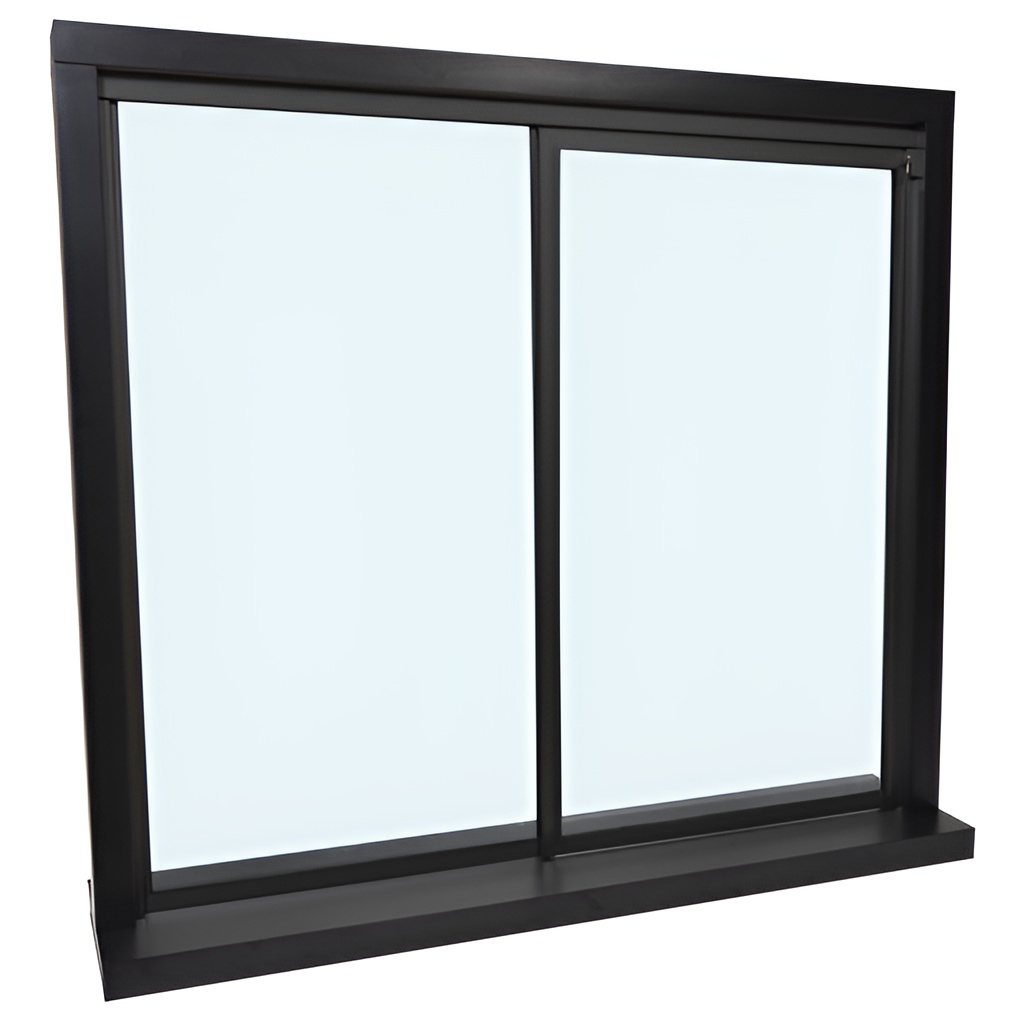

CRL D1038DU0X4848 Florence Duranodic Bronze "OX" Model 48" Glazed Pass-Thru with 1/4" Glass

C.R. Laurence D1038DU0X4848 Florence Duranodic Bronze Factory Glazed "OX" Model offers a sophisticated solution for your pass-thru assembly needs. This elegantly designed assembly features a net frame size of 48" in width and 48" in height, accommodating openings approximately 48-1/8" wide by 48-1/8" high. The kit includes high-quality 1/4" clear tempered glass, ensuring durability and safety. The Florence model is assembled and ready to install, making it an ideal choice for both professionals and knowledgeable homeowners seeking efficiency without compromising on aesthetics. With a striking Duranodic Bronze finish, this assembly not only enhances the visual appeal of any space but also provides a robust framework for everyday use. This configuration includes two panels-one fixed and one sliding-offering a convenient clerk side view. The glass lites come fully glazed, although some assembly is required during installation. Additionally, it ships via UPS with no shipping limitations, ensuring a hassle-free delivery experience. Choose the C.R. Laurence Florence Duranodic Bronze pass-thru assembly for a perfect blend of functionality and elegance in your architectural projects.

Florence Duranodic Bronze Factory Glazed "OX" Model with 1/4" Tempered Glass Pass-Thru Assembly 48" Width 48" Height

• Assembled and ready to install
• Satin Anodized or Duranodic Bronze Finish
• Two Panels: One Fixed, One Sliding
• View: Clerk Side View
• Counter not included

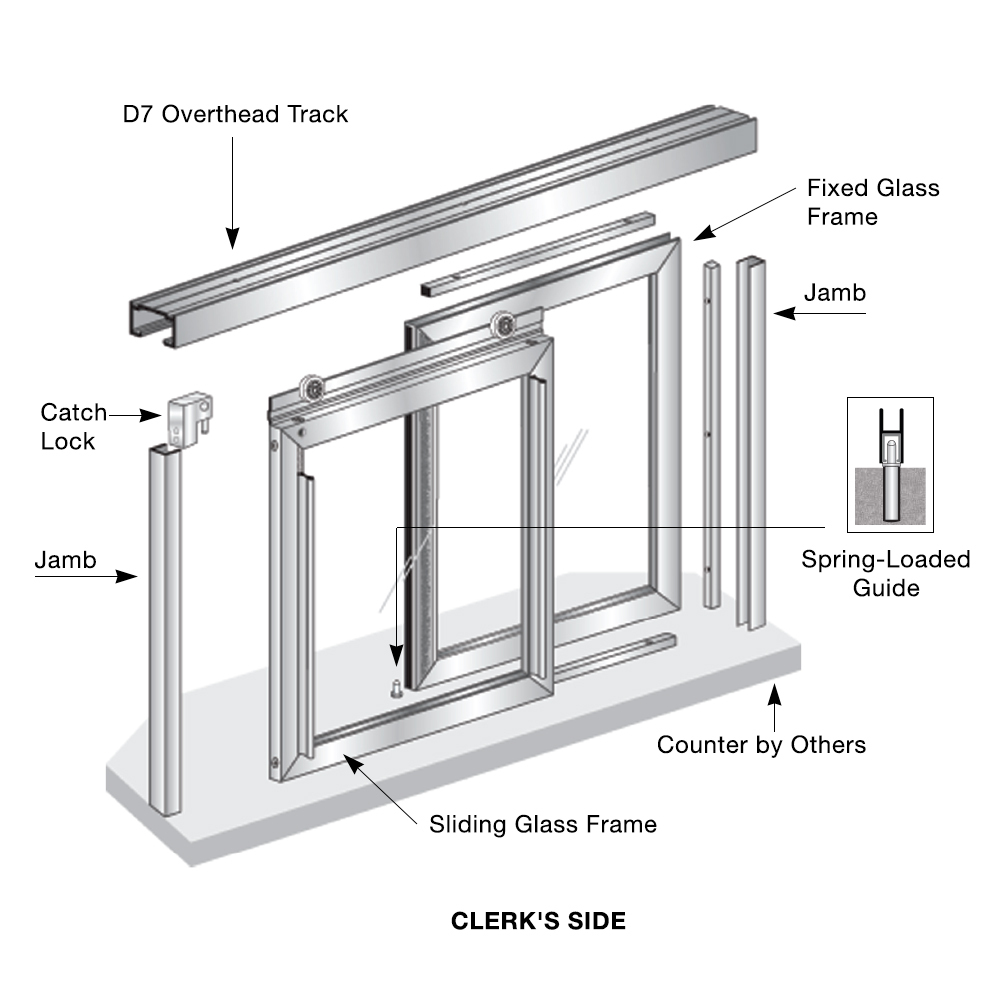

This kit includes 1/4" clear tempered glass. The net frame size is 48"w x 48"h designed for an opening approximately 48-1/8"w x 48-1/8"h. The kit ships with glass lites assembled assembly of the overall frame required during installation. On OX or XO Models X= sliding panel, clerk side view.

Resources

• Aluminum Interior Sliding Service Window 3-Part Spec
• Florence D1038 CAD Drawings.pdf
• Florence Model Pass-Thru No Screen Models D1038 D1039 Installation Instructions
