C.R. Laurence D20PASS0RB Oil Rubbed Bronze Passage Heavy-Duty Grade 1 Lever Lockset offers a robust solution for both commercial and residential applications. Designed to meet ANSI A156.2 Grade 1 standards, this lockset ensures exceptional durability and security. Its non-handed and reversible design provides flexibility, making installation straightforward for any door thickness ranging from 1-3/8" to 1-3/4" (35 to 45 mm). This lockset features a clutch mechanism that enhances its reliability, alongside a UL listing that guarantees compliance with rigorous safety standards, including a 3-hour fire rating. The package includes a matching ANSI 1-1/4" x 4-7/8" (32 x 124 mm) strike, ensuring a complete installation. The passage function allows both levers to remain always free, making it ideal for areas where controlled access is not a priority. Finished in a sophisticated oil-rubbed bronze, this lockset not only provides outstanding functionality but also adds an elegant touch to your doors. With a handle length of 4-5/8" and a projection of 2-1/2", the D20PASS0RB combines style with practicality, making it a perfect choice for those seeking quality hardware for their spaces.
Oil Rubbed Bronze Passage Heavy-Duty Grade 1 Lever Lockset
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Backset: 2-3/4
Category: Door Accessories
Certification: ANSI A156.2 Grade 1
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Thickness Range: 1-3/8" To 1-3/4"
Door Type: Aluminum, Wood, Hollow Metal
Finish/ Color:: Oil Rubbed Bronze
Fire Rating Hour: 3
Function: Passage
Handing: Non Handed and Reversible

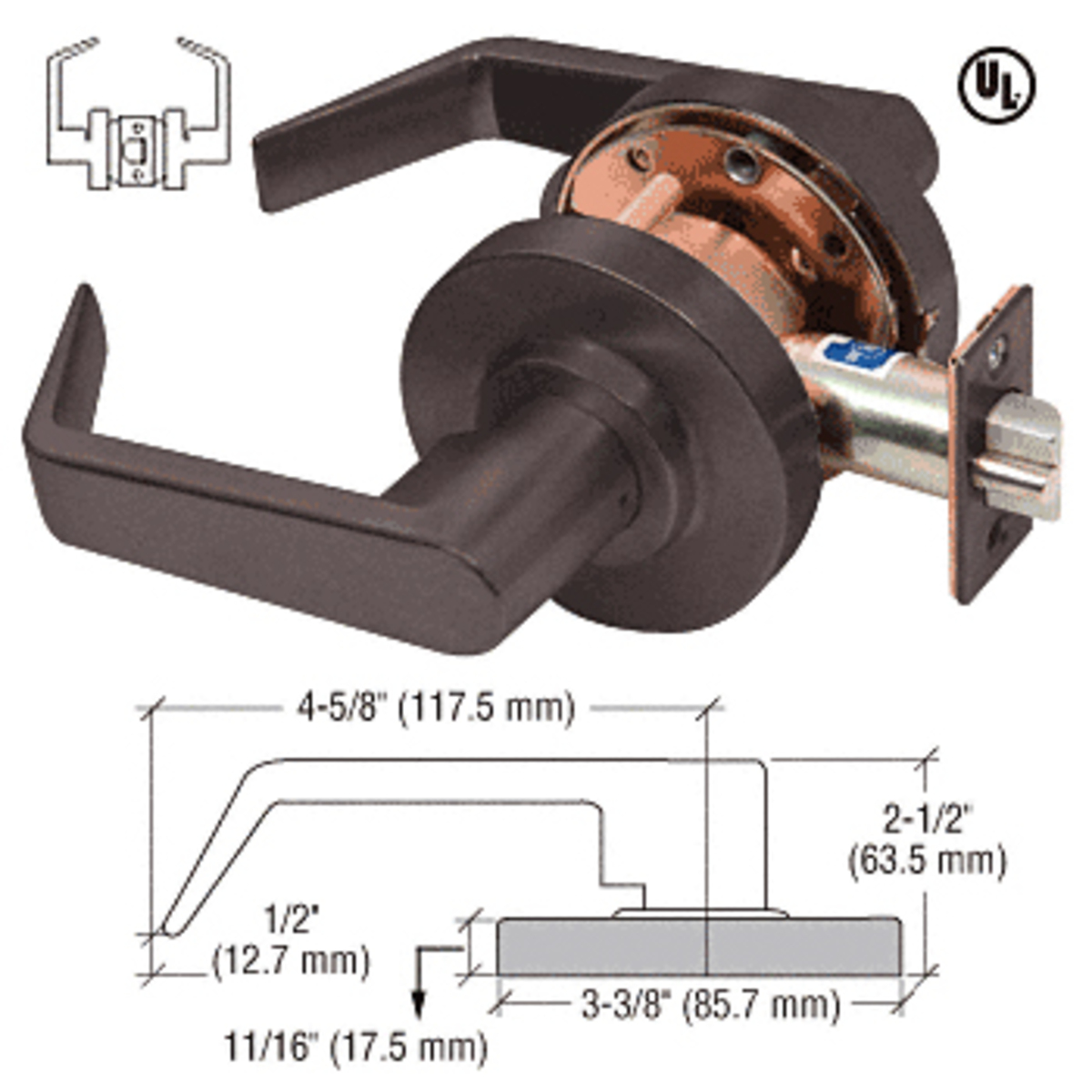

Handle Length: 4-5/8
Includes: Strike
Operation Type: F75 Passage Lever
Projection: 2-1/2
Rosette Base Height: 11/16
Rosette Base Width: 3-3/8
Shipping Limitations: None
Strike Height: 4-7/8
Strike Width: 1-1/4
Type: Heavy Duty Lever Lockset
UL Listed: Yes
