CRL D2203BN36 Brushed Nickel 36" Track Assembly D603 Upper D602 Lower with Nylon Wheels

CRL D2203BN36 Brushed Nickel 36" Track Assembly D603 Upper D602 Lower with Nylon Wheels

C.R. Laurence D2203BN36 Brushed Nickel 36" Packaged Track Assembly features a robust design tailored for seamless operation in interior settings. This assembly includes the D603 upper and D602 lower tracks, equipped with nylon wheels for smooth sliding action, ensuring years of reliable service. Available in a striking brushed nickel finish, this low-profile track assembly is offered in three convenient pre-cut lengths, minimizing material waste and simplifying installation. Packed in a convenient shipping tube, all necessary components are included, making setup straightforward. The dual 'H' Bar sections allow for a 1-1/2" overlap, accommodating bypassing doors with ease. For optimal performance, consider CRL Cat. No. D332 end caps, sold separately, and for those utilizing 1/4" (6 mm) glass, the GC728C vinyl is also available to purchase separately. Designed for maximum panel sizes of 36" W x 48" H (914 mm x 1.22 m), it provides a practical solution for various interior applications. The assembly adheres to general glass cutting guidelines, ensuring a precise fit. Additionally, CRL offers a wide selection of ratchet and plunger locks to enhance security. Elevate your space with this efficient and stylish track assembly from C.R. Laurence.

Brushed Nickel 36" Packaged Track Assembly D603 Upper and D602 Lower Track With Nylon Wheels

• Available in Three Convenient Pre-Cut Lengths
• Satin Anodized, and Brushed Nickel Finishes

These Track Assemblies are smooth operating, and will provide years of reliable service. CRL's Low Profile Track Assembly, available in three popular pre-cut lengths, is the most efficient way to purchase a track system for your pass-thru since it minimizes waste of materials.


All the Track Assembly components you require are packed in a convenient shipping tube. They are easy-to-install. The two pieces of 'H' Bar for the bypassing doors have a 1-1/2" (38 mm) overlap. CRL Cat. No. D332 End Caps for the 'H' Bar can be purchased separately. For dry glazing with 1/4" (6 mm) glass use Cat. No. GC728C Vinyl sold separately). To provide security, refer to the large selection of CRL Ratchet and Plunger Type Locks are available.

NOTE: Maximum suggested panel size is 36" W x 48" H (914 mm x 1.22 m).

General Glass Cutting: Guidelines Glass Height = Opening Height Minus 1-1/8" (28.6 mm)

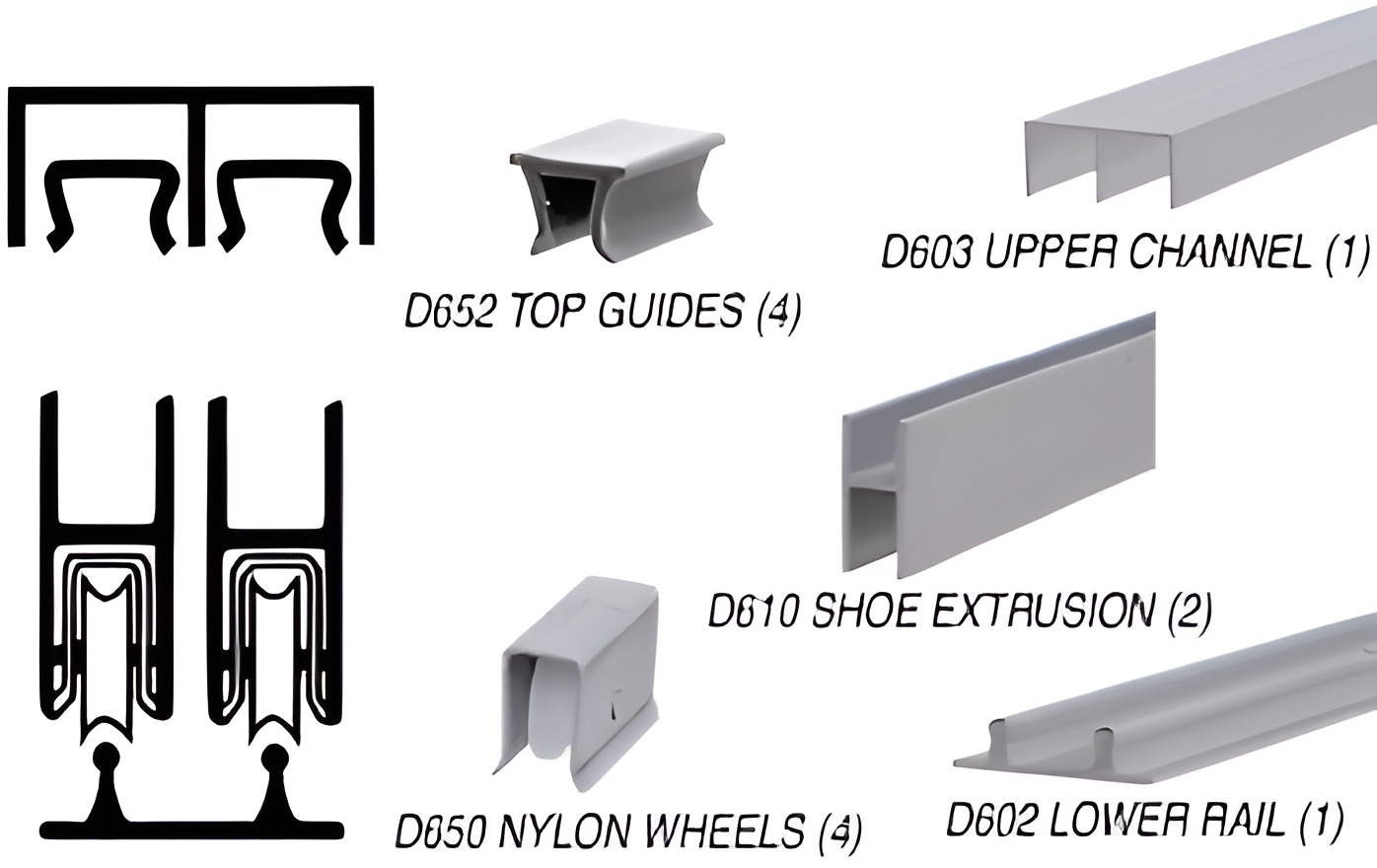

Components for D2203BN

D602 (x1)

D603 (x1)

D650 (x12)

D610 (x1)

D652 (x12)

D9650 (x1)



Product Warning:

If you need a very tight fit, you should figure your own dimensions. The dimensions shown are just guideline dimensions that are satisfactory to most installers.

D2203 Series = Rolling Track Assembly: Glass Height = Opening Minus 1-1/8"
D2204 Series = Rolling Track Assembly: Glass Height = Opening Minus 1-1/8"
D2300 Series = Rolling Track Assembly: Glass Height = Opening Minus 1-3/8"
D2301 Series = Rolling Track Assembly: Glass Height = Opening Minus 1-3/8"
D2303 Series = Rolling Track Assembly: Glass Height = Opening Minus 1-3/8"
D2305 Series = Rolling Track Assembly: Glass Height = Opening Minus 1-3/8"
D2306 Series = Rolling Track Assembly: Glass Height = Opening Minus 1-5/8"
D2307 Series = Rolling Track Assembly: Glass Height = Opening Minus 1-5/8"

Resources

• Aluminum Interior Pass Window Assemblies 3-Part Spec.doc
• Dimensions CRL-TRACK-ASSEMBLY-SYSTEMS.dwg
• Specifications spec track-assembly.doc
• Track Assembly System CAD Drawings.dwg
