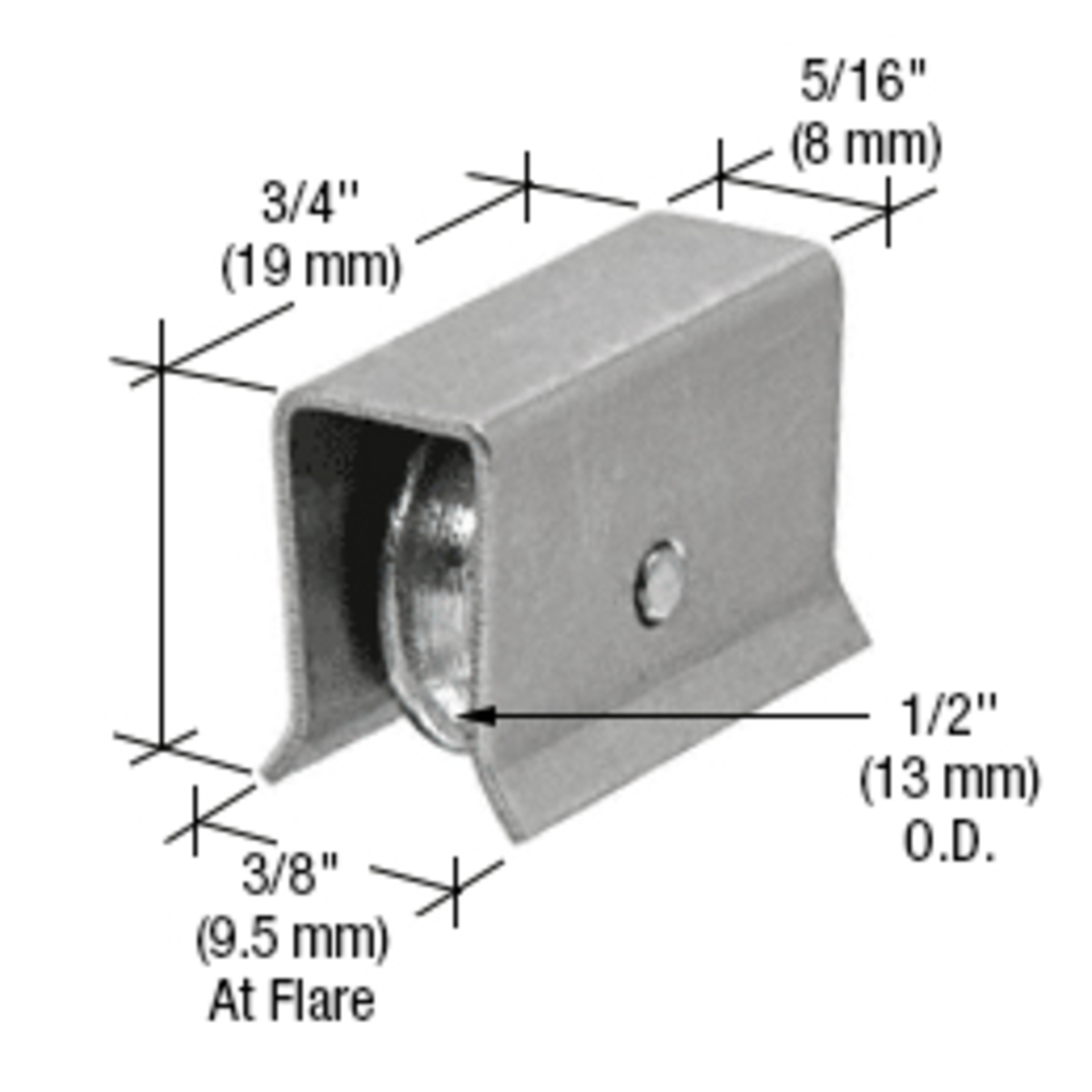

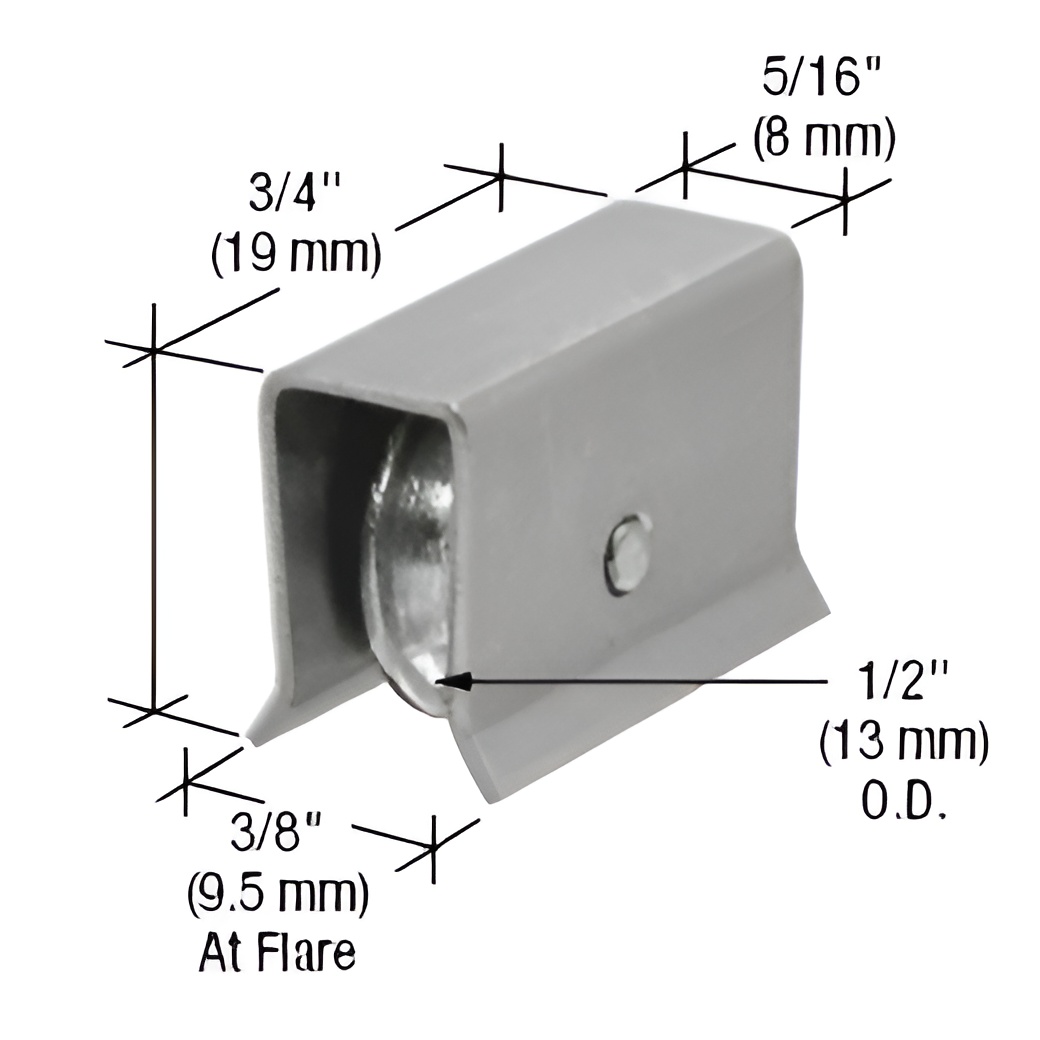

C.R. Laurence D649 Heavy-Duty Ball Bearing Wheel Assembly for H-Bars offers a robust solution for sliding glass applications. Designed specifically for custom showcases with sliding rear doors utilizing D610, D615, LK610, KK610, and MC610 H-Bars, this assembly ensures efficient and economical operation. The D649 features a stamped steel housing that is engineered to press-fit securely into the bottom of the H-Bar, providing reliable support for sliding glass panels. Capable of accommodating panels fabricated with up to 15 square feet of 1/4" (6 mm) plate glass or other glazing materials, this assembly is perfect for larger installations. For optimal performance with larger panels, it is recommended to use four D649 ball bearing steel rollers. Measuring 1/2 inch in height, 3/4 inch in length, and 5/16 inch in width, the D649 is compact yet durable, constructed from high-quality steel to withstand daily use. Each pack contains 100 units, making it an economical choice for both contractors and builders. With no shipping limitations and the capability to ship via UPS, the D649 Ball Bearing Wheel Assembly is a practical addition to any glazing project, ensuring smooth operation and long-lasting performance.
Heavy-Duty Ball Bearing Wheel Assembly for H-Bars
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Height: 1/2 in. (12.7 mm)
Length: 3/4 in. (19.1 mm)
Material: Steel
Pack Quantity: 100
Shipping Limitations: None
Width: 5/16 in. (7.9 mm)
