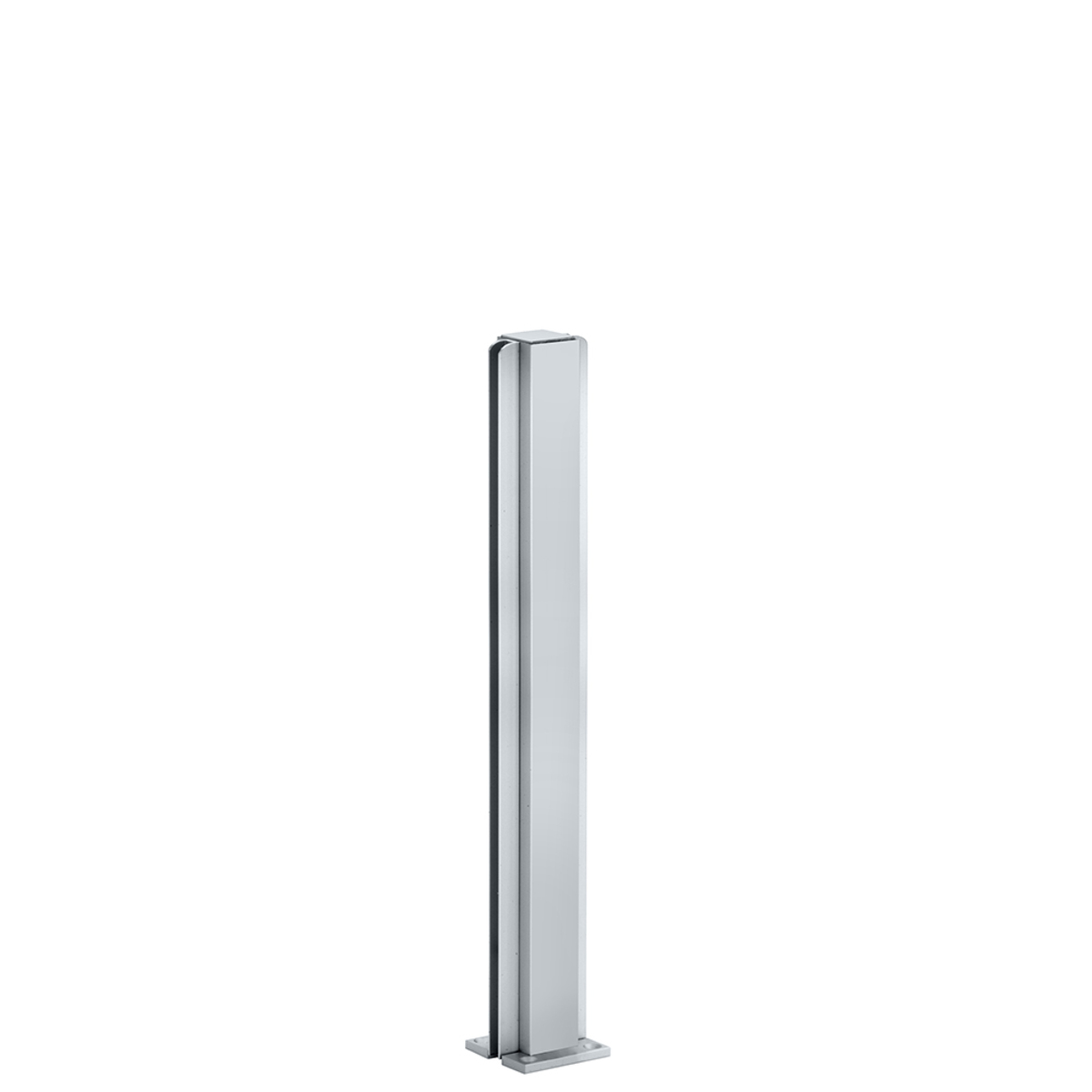

CRL D990A16C Satin Anodized 16" Center Design Partition PostC.R. Laurence D990A16C Satin Anodized 16" Center Design Series Partition Post offers a sleek and efficient solution for modern glass partitioning. Designed with a slim profile, this post is available in standard heights of 12", 18", and 24" (305, 457, and 610 mm) and is ready for immediate delivery. Crafted from durable aluminum, it features full-length glazing channels that accommodate 1/4" (6 mm) glass, ensuring a secure fit. This partition post comes fully assembled, measuring 1-1/8" (28.6 mm) square, with a 2" (51 mm) square mounting base that simplifies installation. The included top cap and mounting base, along with four wood screws, make the setup process straightforward. Ideal for use in banks, offices, and restaurants, the D990A16C is both functional and aesthetically pleasing. Additionally, the post allows for flexibility with five standard configurations-end, center, corner, 3-way, and 4-way-catering to various design needs. For enhanced support, glazing vinyl is supplied for both 1/4" (6 mm) and 3/16" (5 mm) glass. With the option to "Make Your Own" Design Series Partition Posts using CRL components, customization is at your fingertips. Experience the perfect blend of style and practicality with the C.R. Laurence D990A16C.
Satin Anodized 16" Center Design Series Partition Post
- Stock Post Sizes, RED-E to Ship
- Standard Heights of 12", 18", and 24" (305, 457, and 610 mm) Available in Four Finishes
- Five Standard Configurations – End, Center, Corner, 3-Way, and 4-Way
- Aluminum Tubing With Full Length Channels for 1/4" (6 mm) Glass
- Top Cap and Mounting Base Included
- Use Monolithic Tempered Glass
CRL Design Series Partition Posts are very popular, available in the standard stock sizes and are ready for immediate delivery. These Posts have been used for years in banks, offices, and restaurants. A slim line profile and easy-to-install Mounting Base have made them a favorite in the industry. The glass is easily secured into the glazing channels using Cat. No. 33SC Clear Silicone. Also available in some finishes and sizes are Custom 135 Degree Posts. Each Post contains one attached Top Cap, one attached Mounting Base, and four Wood Screws for mounting.

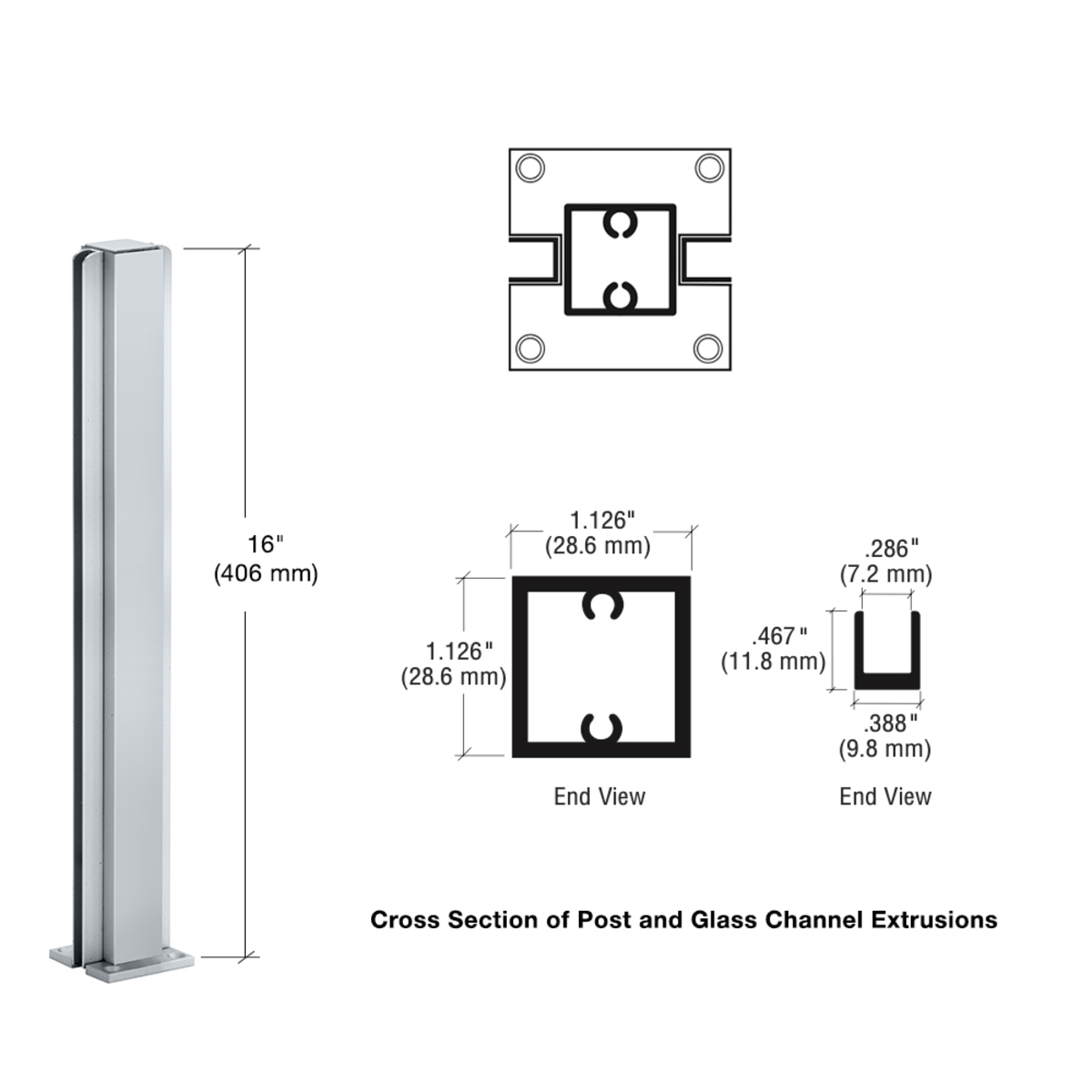

These fully assembled Design Series Posts measure 1-1/8" (28.6 mm) square. Post Mounting Base Plates measure 2" (51 mm) square. Glazing Channels measure full length and rise 15/32" (12 mm) from the post surface. Glazing Vinyl for 1/4" (6 mm) and 3/16" (5 mm) glass is supplied to fill glass channel.
You can also "Make Your Own" Design Series Partition Posts With CRL Components.
Instructions and requirements, " target="_blank">https://catalogs.crlaurence.com/CRL93G-Glass-and-Glazing/GG182/">Instructions and requirements,
parts page.
Product Warning:
The glass is easily secured into the glazing channels using Cat. No. 33SC Clear Silicone.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Base Type: Square Flat - Mechanical
Cap Type: Flat
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Configuration: Center Post
Finish/ Color:: Satin Anodized
Glazed: No
Glazing Attachment Type: U-Channel
Glazing Thickness: 1/4 in. (6 mm)
Height: 8 (406.4 mm)
Material: Aluminum
Series: Design
Shipping Limitations: None
Tube Size: 1-1/8 in. (28.6 mm)
Tube Type: Square
