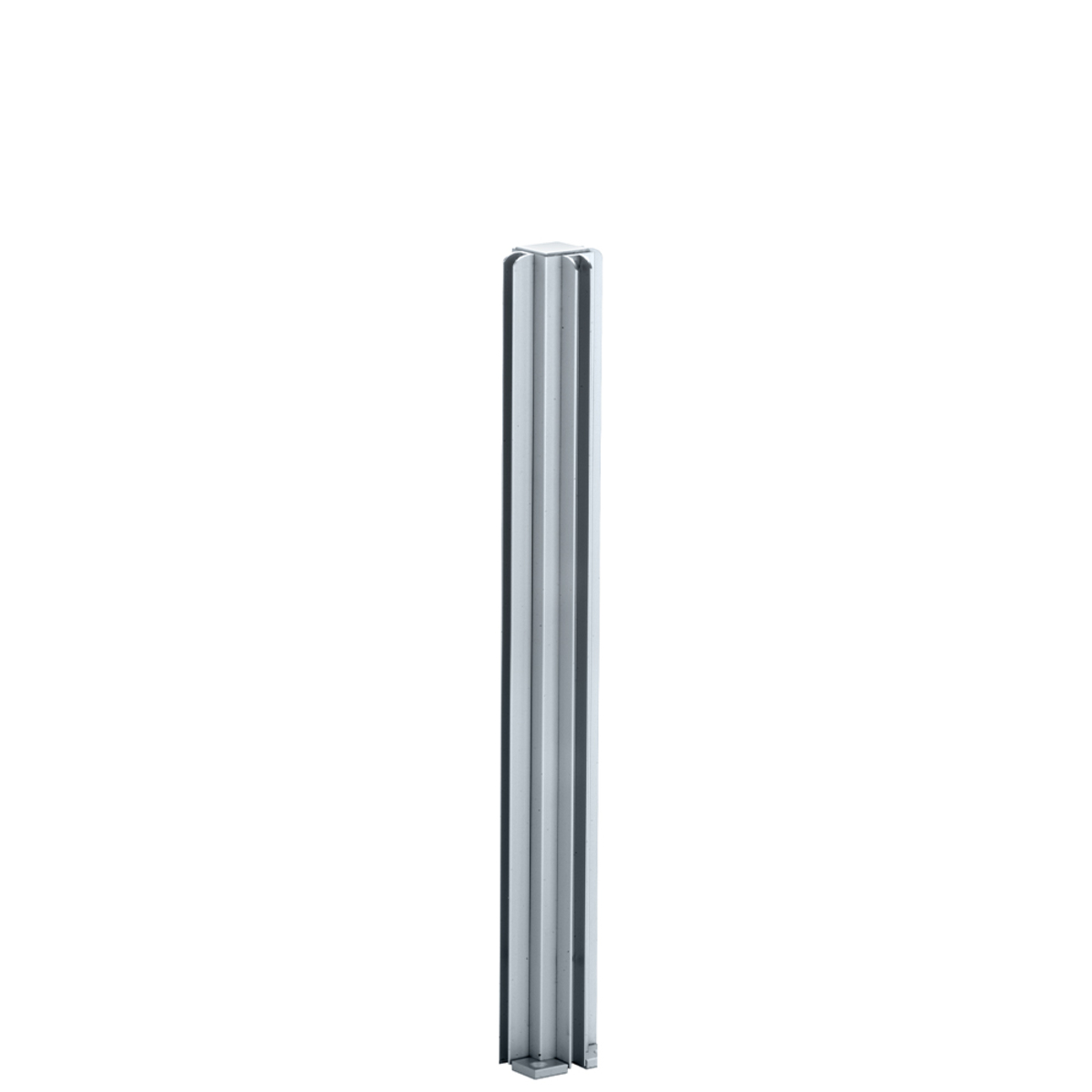

CRL D990A183W Satin Anodized 18" 3-Way Partition PostC.R. Laurence D990A183W Satin Anodized 18" 3-Way Design Series Partition Post offers a versatile solution for glass partitioning in commercial spaces. Constructed from durable aluminum, this post features a sleek 1-1/8" square profile, making it an ideal choice for modern interiors, including banks, offices, and restaurants. Its standard height of 18 inches (457 mm) is part of a range of stock sizes that are RED-E to ship, ensuring prompt delivery for your projects. This partition post accommodates 1/4" (6 mm) monolithic tempered glass, secured effortlessly within full-length glazing channels. The included top cap and square flat mounting base simplify installation, while the supplied glazing vinyl ensures a snug fit for the glass. With five standard configurations available-end, center, corner, 3-way, and 4-way-this product can adapt to various design needs. The D990A183W post is not just functional; it also enhances aesthetic appeal with its satin anodized finish. Each post comes fully assembled and is designed for easy mounting, making it a popular choice among building professionals. For those looking to customize their designs, CRL offers components to create your own partition posts, providing flexibility for unique applications.
Satin Anodized 18" 3-Way Design Series Partition Post
- Stock Post Sizes, RED-E to Ship
- Standard Heights of 12", 18", and 24" (305, 457, and 610 mm) Available in Four Finishes
- Five Standard Configurations – End, Center, Corner, 3-Way, and 4-Way
- Aluminum Tubing With Full Length Channels for 1/4" (6 mm) Glass
- Top Cap and Mounting Base Included
- Use Monolithic Tempered Glass
CRL Design Series Partition Posts are very popular, available in the standard stock sizes and are ready for immediate delivery. These Posts have been used for years in banks, offices, and restaurants. A slim line profile and easy-to-install Mounting Base have made them a favorite in the industry. The glass is easily secured into the glazing channels using Cat. No. 33SC Clear Silicone. Also available in some finishes and sizes are Custom 135 Degree Posts. Each Post contains one attached Top Cap, one attached Mounting Base, and four Wood Screws for mounting.

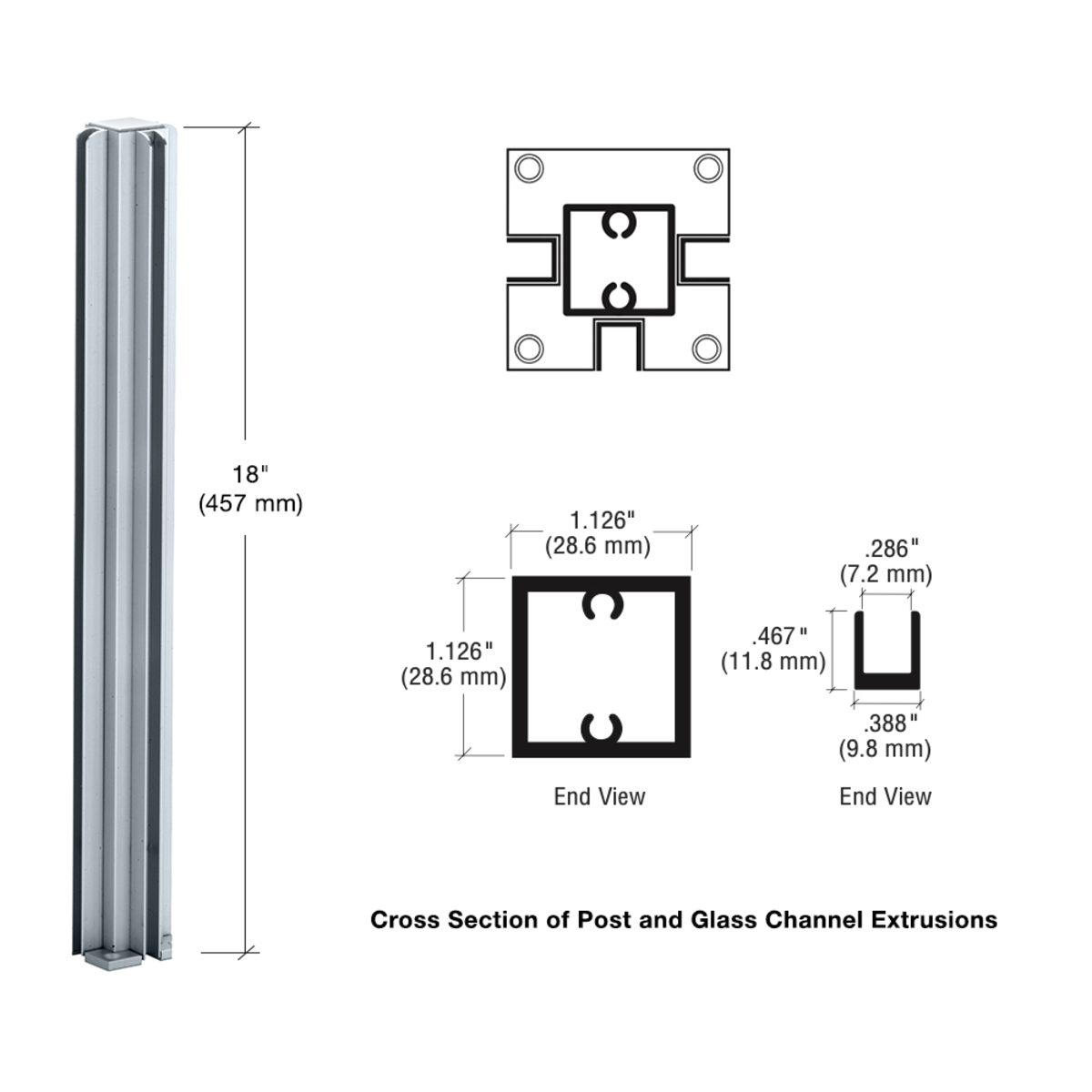

These fully assembled Design Series Posts measure 1-1/8" (28.6 mm) square. Post Mounting Base Plates measure 2" (51 mm) square. Glazing Channels measure full length and rise 15/32" (12 mm) from the post surface. Glazing Vinyl for 1/4" (6 mm) and 3/16" (5 mm) glass is supplied to fill glass channel.
You can also "Make Your Own" Design Series Partition Posts With CRL Components.
Instructions and requirements, " target="_blank">https://catalogs.crlaurence.com/CRL93G-Glass-and-Glazing/GG182/">Instructions and requirements,
parts page.
Product Warning:
The glass is easily secured into the glazing channels using Cat. No. 33SC Clear Silicone.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Base Type: Square Flat - Mechanical
Cap Type: Flat
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Configuration: 3-Way Post
Finish/ Color:: Satin Anodized
Glazed: No
Glazing Attachment Type: U-Channel
Glazing Thickness: 1/4 in. (6 mm)
Height: 18 in. (457.2 mm)
Material: Aluminum
Series: Design
Shipping Limitations: None
Tube Size: 1-1/8 in. (28.6 mm)
Tube Type: Square
