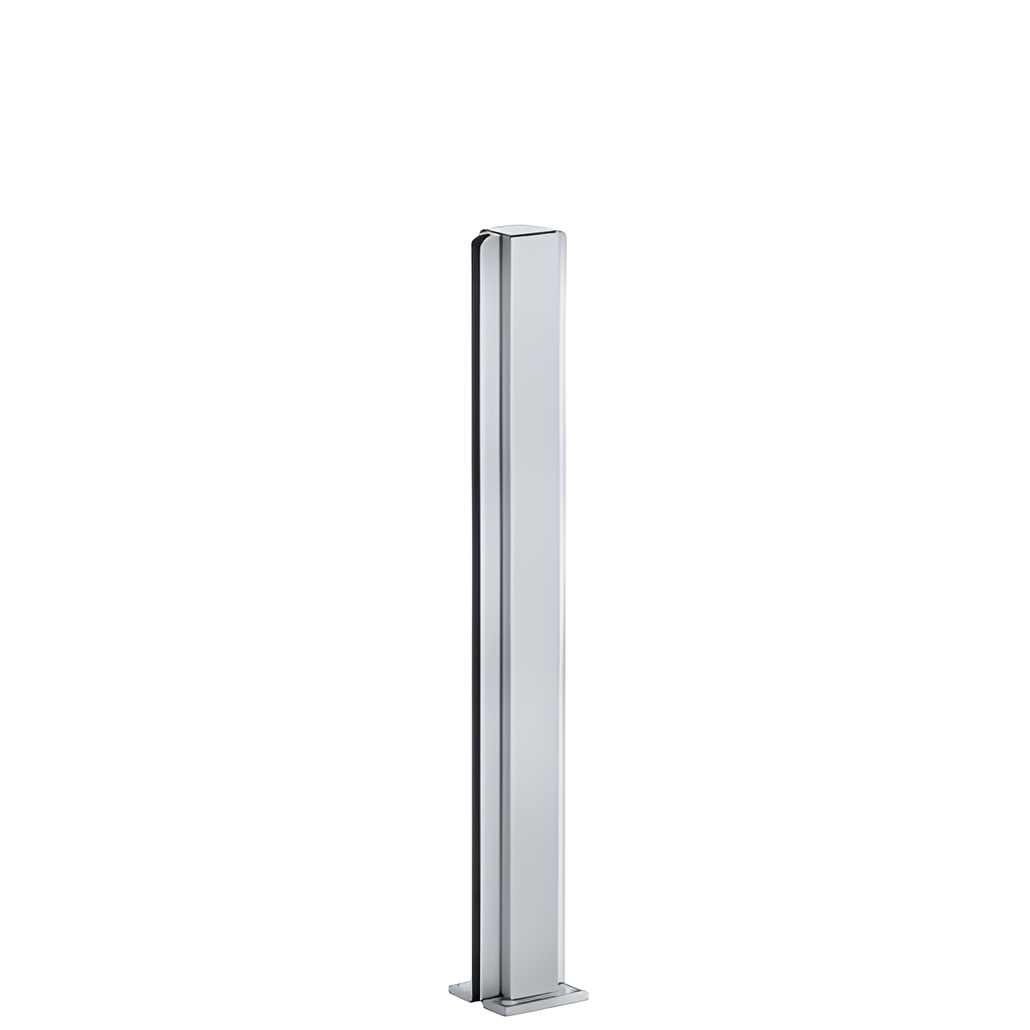

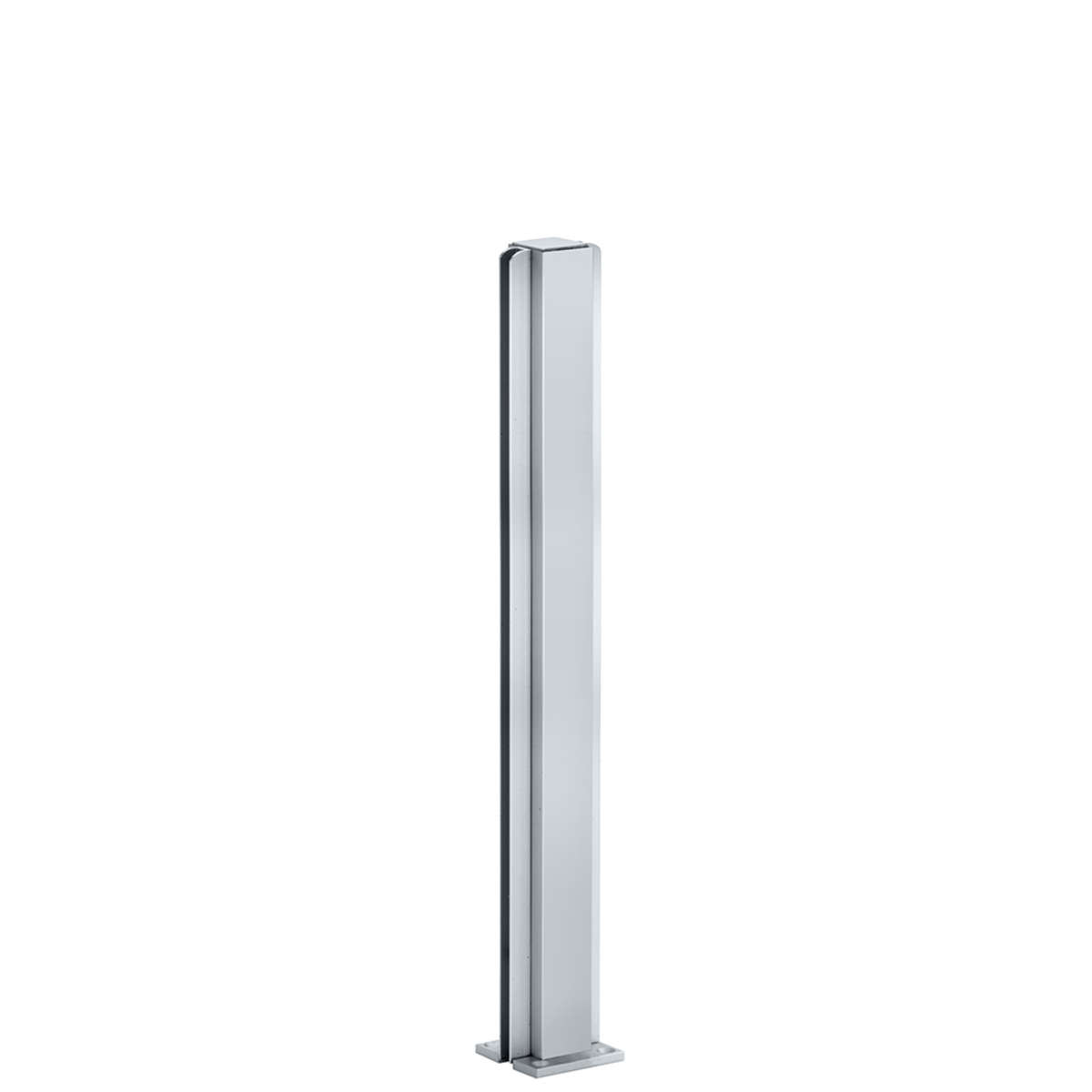

CRL D990A18C Satin Anodized 18" Center Design Partition PostC.R. Laurence D990A18C Satin Anodized 18" Center Design Series Partition Post is a versatile and stylish solution for modern architectural needs. This robust post, constructed from durable aluminum, features a sleek 1-1/8" (28.6 mm) square profile that enhances the aesthetic of any interior space, from banks and offices to restaurants. Designed for ease of installation, the D990A18C comes complete with an attached top cap, mounting base, and four wood screws for reliable anchoring. The full-length glazing channels accommodate 1/4" (6 mm) tempered glass, allowing for seamless integration into various configurations, including end, center, corner, 3-way, and 4-way setups. The post's mounting base measures 2" (51 mm) square, providing a stable foundation. Available in standard heights of 12", 18", and 24" (305, 457, and 610 mm) and finished in satin anodized, this partition post not only meets functional requirements but also complements diverse design themes. Additionally, you can customize your posts with CRL components for unique applications. For secure glass installation, utilize Cat. No. 33SC Clear Silicone. Experience the perfect blend of form and function with the C.R. Laurence D990A18C Partition Post, engineered for professional-grade performance and reliability.
Satin Anodized 18" Center Design Series Partition Post
- Stock Post Sizes, RED-E to Ship
- Standard Heights of 12", 18", and 24" (305, 457, and 610 mm) Available in Four Finishes
- Five Standard Configurations – End, Center, Corner, 3-Way, and 4-Way
- Aluminum Tubing With Full Length Channels for 1/4" (6 mm) Glass
- Top Cap and Mounting Base Included
- Use Monolithic Tempered Glass
CRL Design Series Partition Posts are very popular, available in the standard stock sizes and are ready for immediate delivery. These Posts have been used for years in banks, offices, and restaurants. A slim line profile and easy-to-install Mounting Base have made them a favorite in the industry. The glass is easily secured into the glazing channels using Cat. No. 33SC Clear Silicone. Also available in some finishes and sizes are Custom 135 Degree Posts. Each Post contains one attached Top Cap, one attached Mounting Base, and four Wood Screws for mounting.

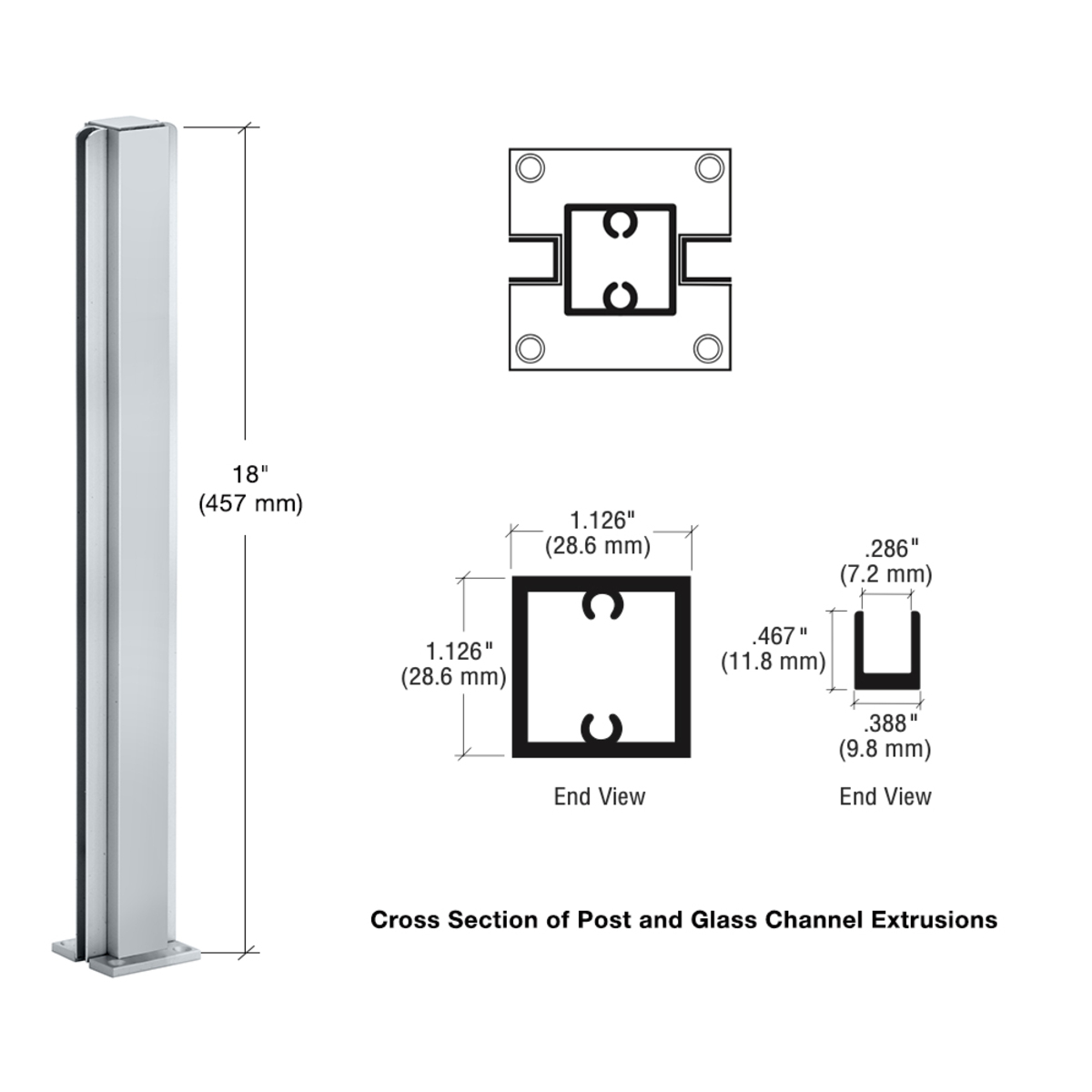

These fully assembled Design Series Posts measure 1-1/8" (28.6 mm) square. Post Mounting Base Plates measure 2" (51 mm) square. Glazing Channels measure full length and rise 15/32" (12 mm) from the post surface. Glazing Vinyl for 1/4" (6 mm) and 3/16" (5 mm) glass is supplied to fill glass channel.
You can also "Make Your Own" Design Series Partition Posts With CRL Components.
Instructions and requirements, " target="_blank">https://catalogs.crlaurence.com/CRL93G-Glass-and-Glazing/GG182/">Instructions and requirements,
parts page.
Product Warning:
The glass is easily secured into the glazing channels using Cat. No. 33SC Clear Silicone.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Base Type: Square Flat - Mechanical
Cap Type: Flat
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Configuration: Center Post
Finish/ Color:: Satin Anodized
Glazed: No
Glazing Attachment Type: U-Channel
Glazing Thickness: 1/4 in. (6 mm)
Height: 18 in. (457.2 mm)
Material: Aluminum
Series: Design
Shipping Limitations: None
Tube Size: 1-1/8 in. (28.6 mm)
Tube Type: Square
