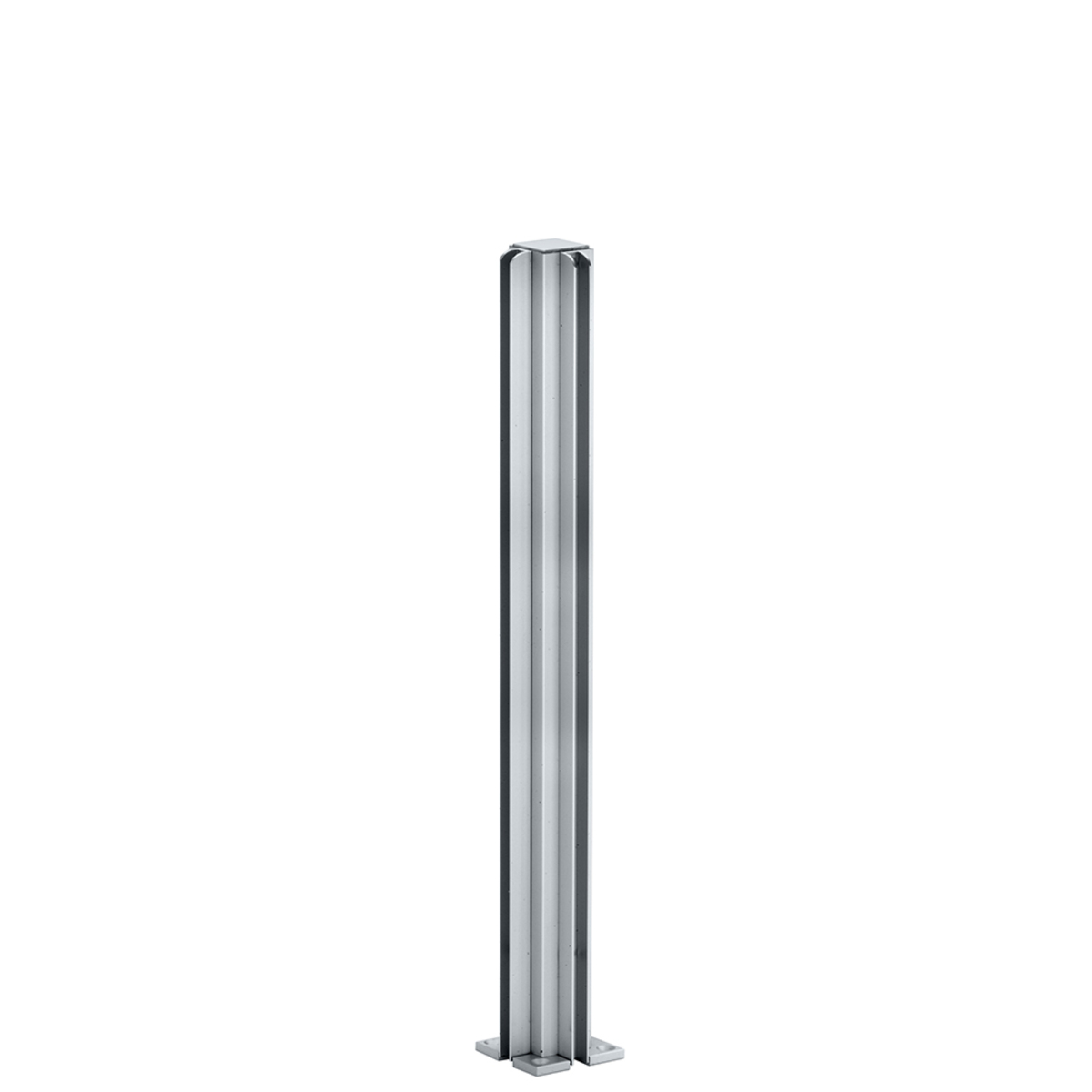

CRL D990A18CR Satin Anodized 18" Corner Partition PostC.R. Laurence D990A18CR Satin Anodized 18" Corner Design Series Partition Post offers an ideal solution for creating elegant and functional glass partitions in various commercial settings. This robust post is available in standard heights of 12", 18", and 24", ensuring a perfect fit for your project needs. Crafted from high-quality aluminum, it features a slim profile that enhances aesthetic appeal while providing structural integrity. Designed for seamless installation, the D990A18CR comes with a top cap and mounting base, allowing quick setup. Its full-length glazing channels accommodate 1/4" (6 mm) tempered glass, securely held in place with the recommended Cat. No. 33SC Clear Silicone. This corner post configuration is perfect for 90-degree applications, making it a versatile choice for banks, offices, and restaurants. Each partition post measures 1-1/8" (28.6 mm) square, with a mounting base plate of 2" (51 mm) square. The glazing channels rise 15/32" (12 mm) from the post surface, while glazing vinyl for 1/4" (6 mm) and 3/16" (5 mm) glass is included to ensure a secure fit. C.R. Laurence’s commitment to quality and innovation shines through in this Design Series Partition Post, perfect for any contemporary interior setting.
Satin Anodized 18" Corner Design Series Partition Post
- Stock Post Sizes, RED-E to Ship
- Standard Heights of 12", 18", and 24" (305, 457, and 610 mm) Available in Four Finishes
- Five Standard Configurations – End, Center, Corner, 3-Way, and 4-Way
- Aluminum Tubing With Full Length Channels for 1/4" (6 mm) Glass
- Top Cap and Mounting Base Included
- Use Monolithic Tempered Glass
CRL Design Series Partition Posts are very popular, available in the standard stock sizes and are ready for immediate delivery. These Posts have been used for years in banks, offices, and restaurants. A slim line profile and easy-to-install Mounting Base have made them a favorite in the industry. The glass is easily secured into the glazing channels using Cat. No. 33SC Clear Silicone. Also available in some finishes and sizes are Custom 135 Degree Posts. Each Post contains one attached Top Cap, one attached Mounting Base, and four Wood Screws for mounting.

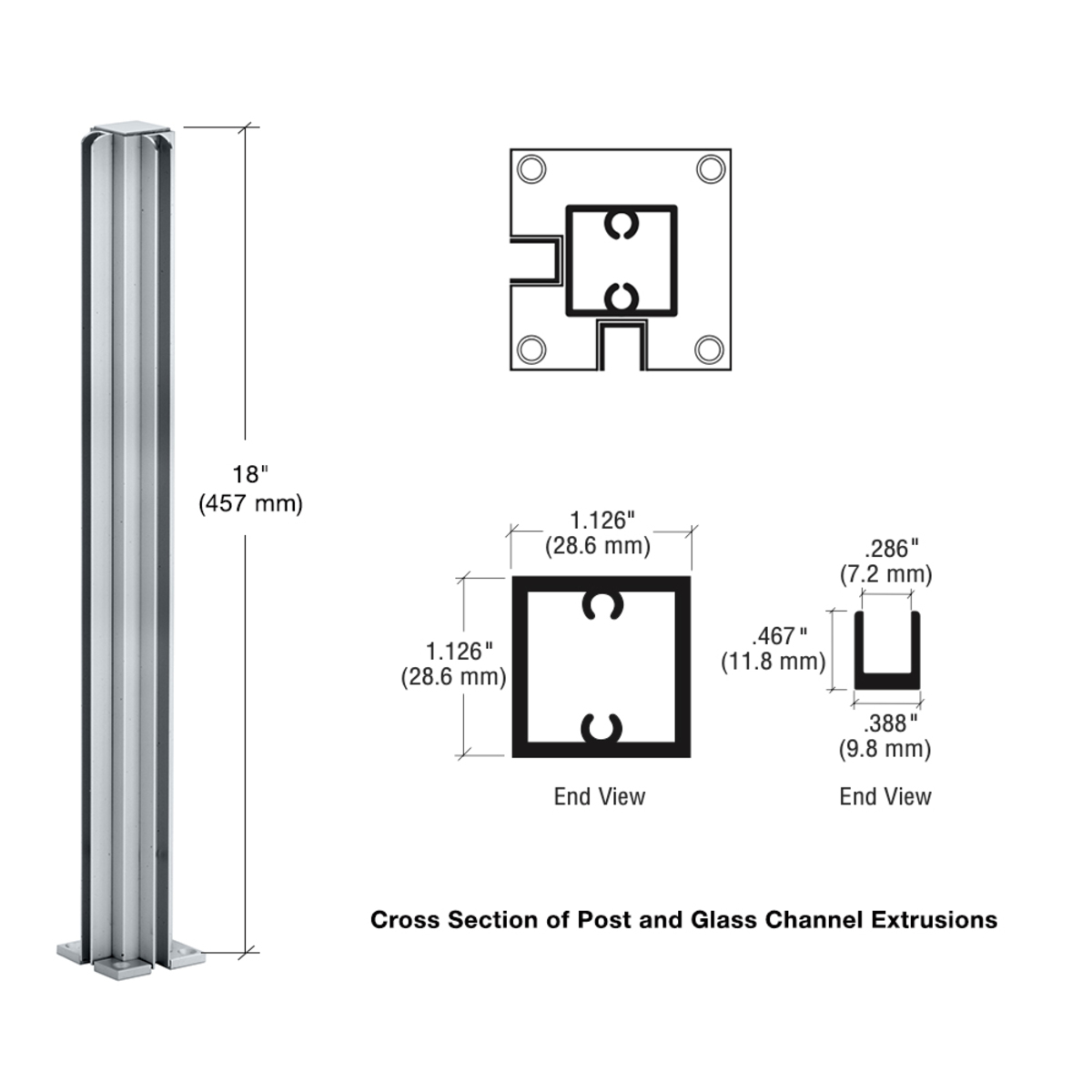

These fully assembled Design Series Posts measure 1-1/8" (28.6 mm) square. Post Mounting Base Plates measure 2" (51 mm) square. Glazing Channels measure full length and rise 15/32" (12 mm) from the post surface. Glazing Vinyl for 1/4" (6 mm) and 3/16" (5 mm) glass is supplied to fill glass channel.
You can also "Make Your Own" Design Series Partition Posts With CRL Components.
Instructions and requirements, " target="_blank">https://catalogs.crlaurence.com/CRL93G-Glass-and-Glazing/GG182/">Instructions and requirements,
parts page.
Product Warning:
The glass is easily secured into the glazing channels using Cat. No. 33SC Clear Silicone.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Base Type: Square Flat - Mechanical
Cap Type: Flat
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Configuration: 90 Degree Corner Post
Finish/ Color:: Satin Anodized
Glazed: No
Glazing Attachment Type: U-Channel
Glazing Thickness: 1/4 in. (6 mm)
Height: 18 in. (457.2 mm)
Material: Aluminum
Series: Design
Shipping Limitations: None
Tube Size: 1-1/8 in. (28.6 mm)
Tube Type: Square
