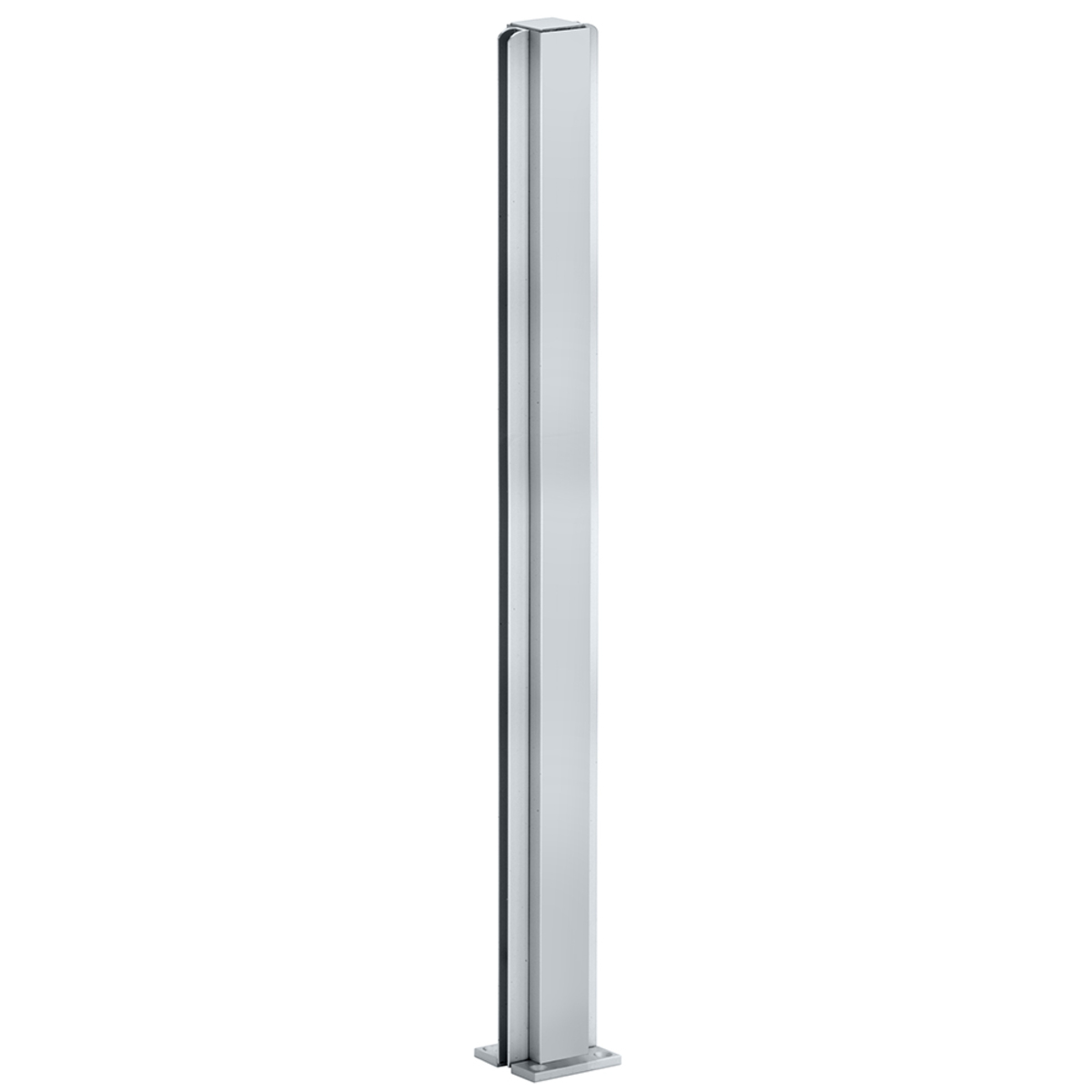

CRL D990A30C Satin Anodized 30" Center Design Partition PostC.R. Laurence D990A30C Satin Anodized 30" Center Design Series Partition Post offers a sleek and versatile solution for modern interior spaces. This high-quality partition post, measuring 30 inches in height, is crafted from durable aluminum and features a 1-1/8" (28.6 mm) square profile that ensures both strength and aesthetic appeal. The full-length glazing channels accommodate 1/4" (6 mm) tempered glass, securely holding it in place with ease. The D990A30C is available in a satin anodized finish and is designed for quick and simple installation, making it a popular choice for banks, offices, and restaurants. Its included top cap and mounting base streamline the setup process, while the four wood screws ensure a sturdy hold. The post's mounting base plate measures 2" (51 mm) square, providing ample support for various configurations, including end, center, corner, 3-way, and 4-way setups. For added convenience, glazing vinyl for 1/4" (6 mm) and 3/16" (5 mm) glass is supplied to fill the glass channel, enhancing the post’s functionality. With its ready-to-ship availability, the C.R. Laurence D990A30C partition post is an ideal choice for professionals seeking reliability and elegance in their architectural designs.
Satin Anodized 30" Center Design Series Partition Post
- Stock Post Sizes, RED-E to Ship
- Standard Heights of 12", 18", and 24" (305, 457, and 610 mm) Available in Four Finishes
- Five Standard Configurations – End, Center, Corner, 3-Way, and 4-Way
- Aluminum Tubing With Full Length Channels for 1/4" (6 mm) Glass
- Top Cap and Mounting Base Included
- Use Monolithic Tempered Glass
CRL Design Series Partition Posts are very popular, available in the standard stock sizes and are ready for immediate delivery. These Posts have been used for years in banks, offices, and restaurants. A slim line profile and easy-to-install Mounting Base have made them a favorite in the industry. The glass is easily secured into the glazing channels using Cat. No. 33SC Clear Silicone. Also available in some finishes and sizes are Custom 135 Degree Posts. Each Post contains one attached Top Cap, one attached Mounting Base, and four Wood Screws for mounting.

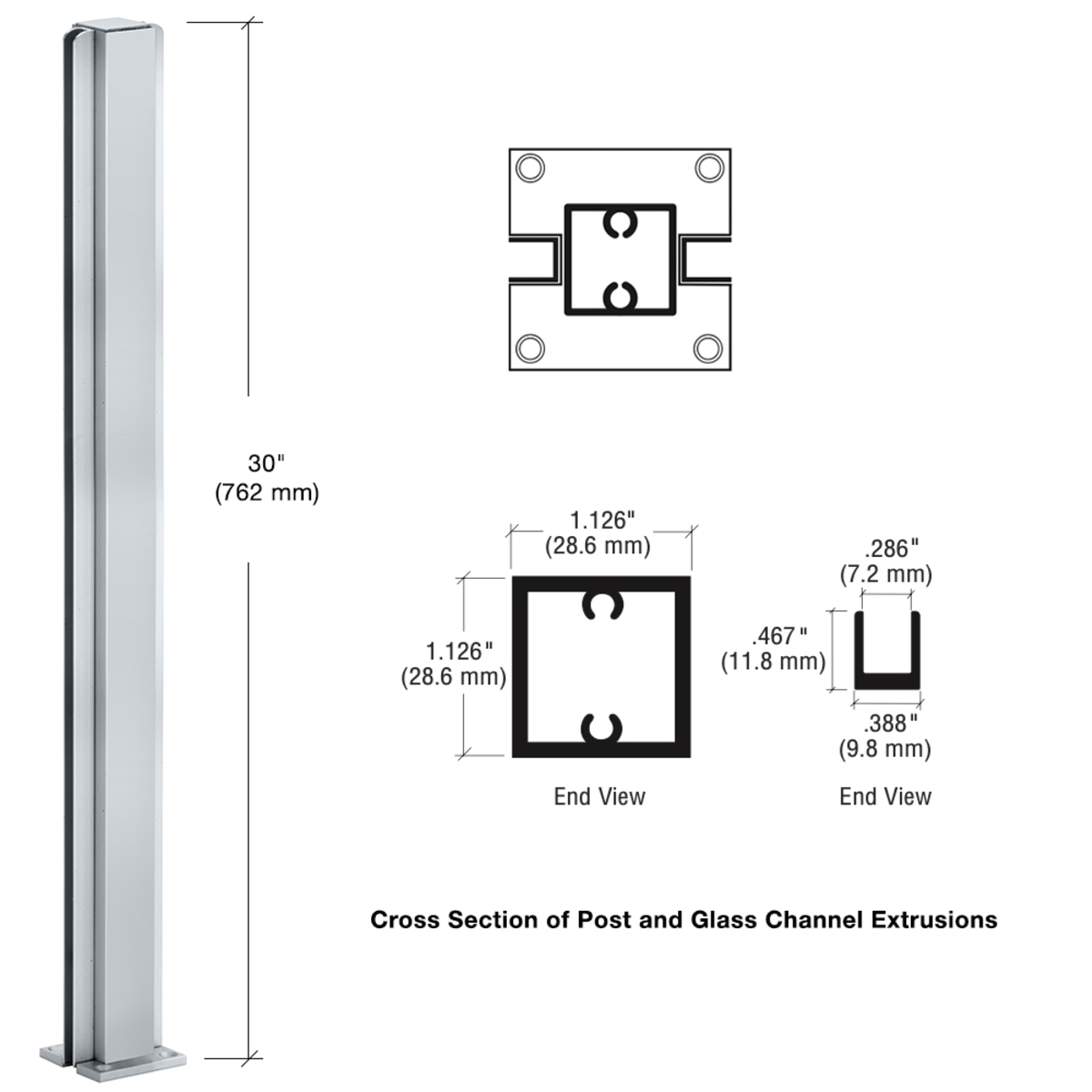

These fully assembled Design Series Posts measure 1-1/8" (28.6 mm) square. Post Mounting Base Plates measure 2" (51 mm) square. Glazing Channels measure full length and rise 15/32" (12 mm) from the post surface. Glazing Vinyl for 1/4" (6 mm) and 3/16" (5 mm) glass is supplied to fill glass channel.
You can also "Make Your Own" Design Series Partition Posts With CRL Components.
Instructions and requirements, " target="_blank">https://catalogs.crlaurence.com/CRL93G-Glass-and-Glazing/GG182/">Instructions and requirements,
parts page.
Product Warning:
The glass is easily secured into the glazing channels using Cat. No. 33SC Clear Silicone.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Base Type: Square Flat - Mechanical
Cap Type: Flat
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Configuration: Center Post
Finish/ Color:: Satin Anodized
Glazing Attachment Type: U-Channel
Glazing Thickness: 1/4 in. (6 mm)
Height: 30 in. (762 mm)
Material: Aluminum
Series: Design
Shipping Limitations: None
Tube Size: 1-1/8 in. (28.6 mm)
Tube Type: Square
