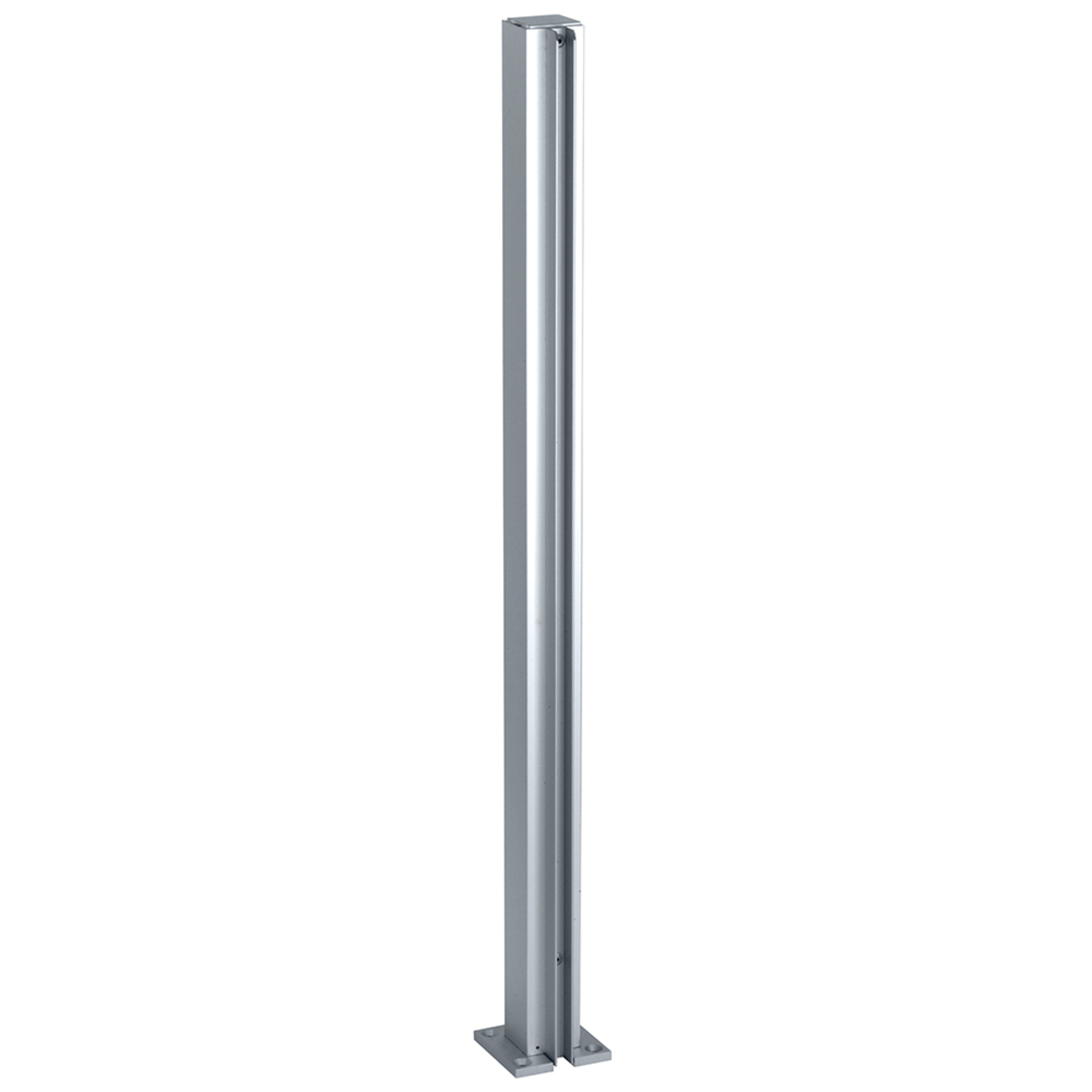

CRL D990A30E Satin Anodized 30" End Design Partition PostC.R. Laurence D990A30E Satin Anodized 30" End Design Series Partition Post combines functionality and aesthetic appeal, making it an ideal solution for modern architectural spaces. Designed for quick delivery, this partition post is available in standard heights of 12", 18", and 24", along with an impressive range of finishes to suit diverse design schemes. Crafted from durable aluminum tubing, each post measures 1-1/8" (28.6 mm) square and features full-length glazing channels to securely accommodate 1/4" (6 mm) monolithic tempered glass. The included top cap and mounting base facilitate straightforward installation, ensuring that your project runs smoothly. With five standard configurations-End, Center, Corner, 3-Way, and 4-Way-this versatile post meets various layout needs, whether for offices, banks, or restaurants. The mounting base plates measure 2" (51 mm) square, providing a stable foundation. For added convenience, glazing vinyl is supplied to fill the glass channel, ensuring a clean and professional finish. If customization is required, you can easily create your own Design Series Partition Posts using CRL components. With the D990A30E, elevate your space with a reliable and stylish solution that stands the test of time.
Satin Anodized 30" End Design Series Partition Post
- Stock Post Sizes, RED-E to Ship
- Standard Heights of 12", 18", and 24" (305, 457, and 610 mm) Available in Four Finishes
- Five Standard Configurations – End, Center, Corner, 3-Way, and 4-Way
- Aluminum Tubing With Full Length Channels for 1/4" (6 mm) Glass
- Top Cap and Mounting Base Included
- Use Monolithic Tempered Glass
CRL Design Series Partition Posts are very popular, available in the standard stock sizes and are ready for immediate delivery. These Posts have been used for years in banks, offices, and restaurants. A slim line profile and easy-to-install Mounting Base have made them a favorite in the industry. The glass is easily secured into the glazing channels using Cat. No. 33SC Clear Silicone. Also available in some finishes and sizes are Custom 135 Degree Posts. Each Post contains one attached Top Cap, one attached Mounting Base, and four Wood Screws for mounting.

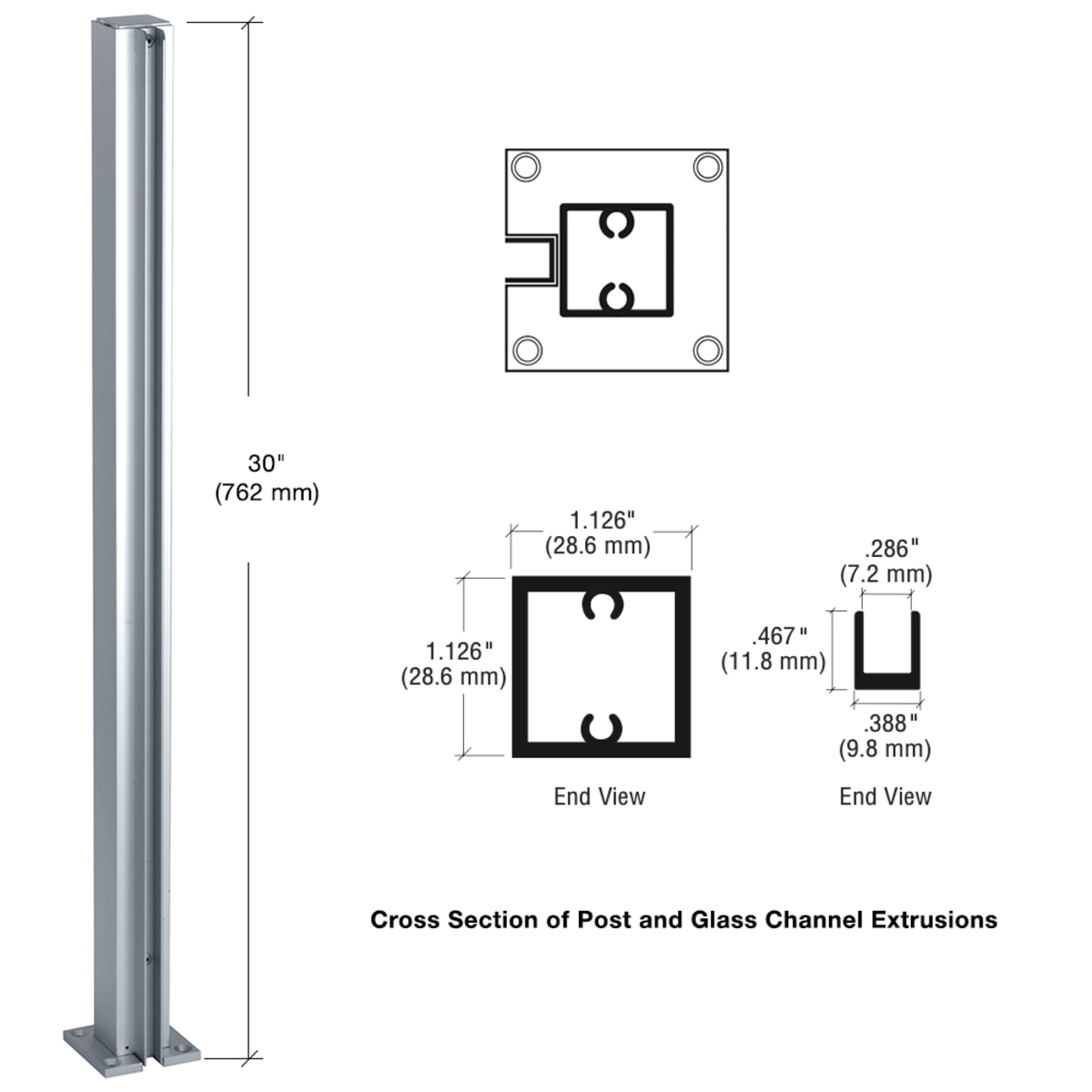

These fully assembled Design Series Posts measure 1-1/8" (28.6 mm) square. Post Mounting Base Plates measure 2" (51 mm) square. Glazing Channels measure full length and rise 15/32" (12 mm) from the post surface. Glazing Vinyl for 1/4" (6 mm) and 3/16" (5 mm) glass is supplied to fill glass channel.
You can also "Make Your Own" Design Series Partition Posts With CRL Components.
Instructions and requirements, " target="_blank">https://catalogs.crlaurence.com/CRL93G-Glass-and-Glazing/GG182/">Instructions and requirements,
parts page.
Product Warning:
The glass is easily secured into the glazing channels using Cat. No. 33SC Clear Silicone.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Base Type: Square Flat - Mechanical
Cap Type: Flat
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Configuration: Non-Handed End Post
Finish/ Color:: Satin Anodized
Glazing Attachment Type: U-Channel
Glazing Thickness: 1/4 in. (6 mm)
Height: 30 in. (762 mm)
Material: Aluminum
Series: Design
Shipping Limitations: None
Tube Size: 1-1/8 in. (28.6 mm)
Tube Type: Square
