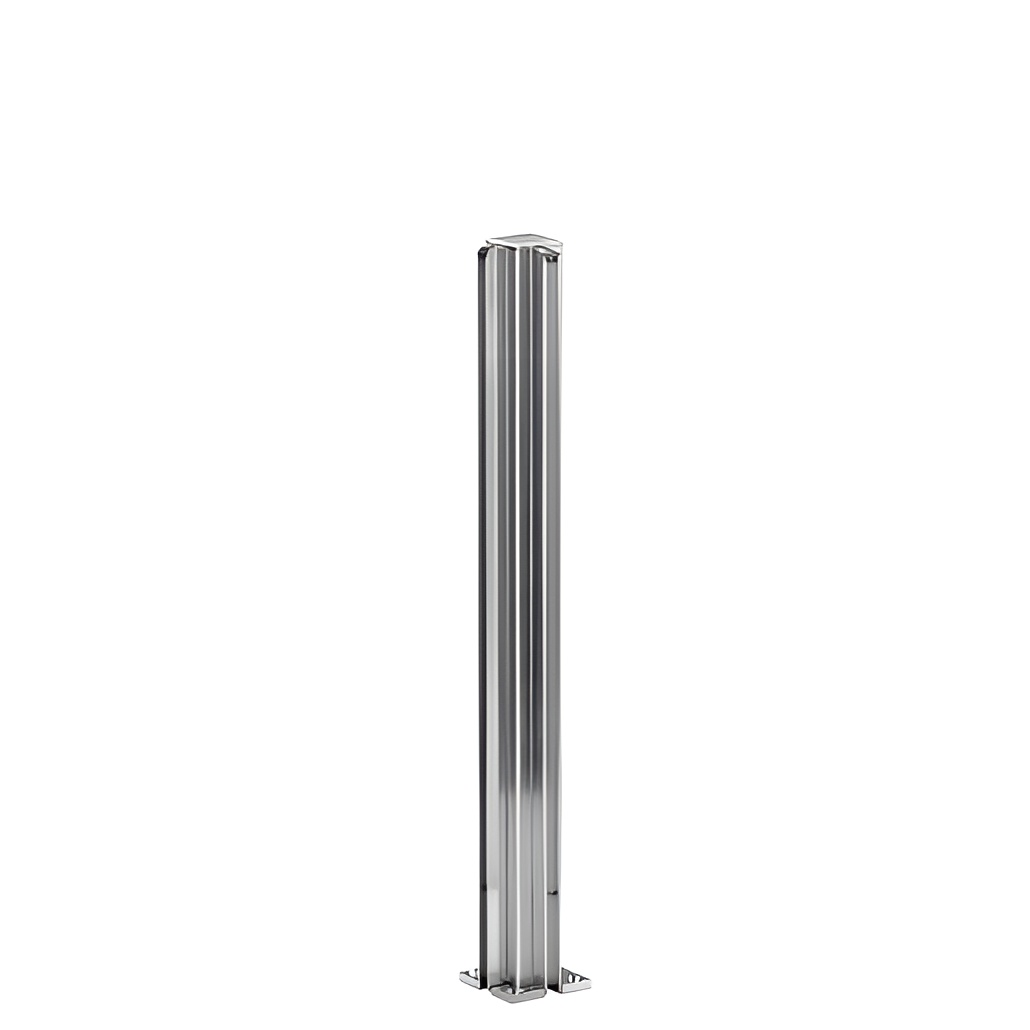

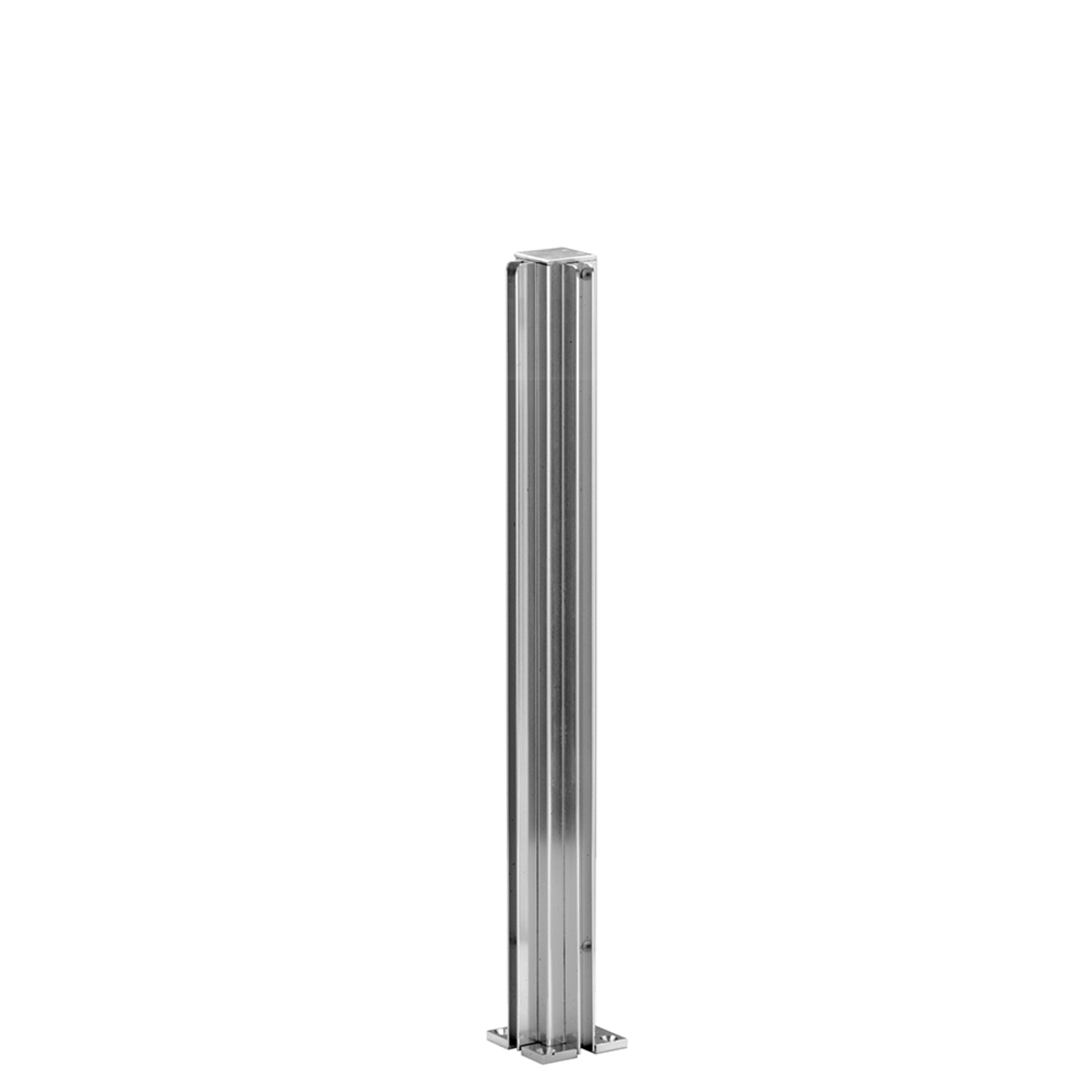

CRL D990BA18CR Brite Anodized 18" Corner Partition PostC.R. Laurence D990BA18CR Brite Anodized 18" Corner Design Series Partition Post offers a sleek solution for creating sophisticated glass partition systems in various environments, including banks, offices, and restaurants. Featuring a slimline profile, this 1-1/8" square post is designed for easy installation, thanks to its included mounting base and top cap. Available in standard heights of 12", 18", and 24", the D990BA18CR is ready for immediate shipment and comes in four attractive finishes. This model accommodates 1/4" (6 mm) tempered glass, securely held in place using full-length glazing channels. The post mounts easily with its square flat mechanical base, measuring 2" square, while the glazing vinyl for 1/4" and 3/16" glass ensures a snug fit. With five standard configurations-end, center, corner, 3-way, and 4-way-this post can be customized to fit various design needs. Whether you're looking for a 90-degree corner post or considering a bespoke option, the D990BA18CR provides versatility and reliability. For enhanced durability and aesthetic appeal, trust C.R. Laurence to deliver quality architectural solutions that meet the demands of modern design.
Brite Anodized 18" Corner Design Series Partition Post
- Stock Post Sizes, RED-E to Ship
- Standard Heights of 12", 18", and 24" (305, 457, and 610 mm) Available in Four Finishes
- Five Standard Configurations – End, Center, Corner, 3-Way, and 4-Way
- Aluminum Tubing With Full Length Channels for 1/4" (6 mm) Glass
- Top Cap and Mounting Base Included
- Use Monolithic Tempered Glass
CRL Design Series Partition Posts are very popular, available in the standard stock sizes and are ready for immediate delivery. These Posts have been used for years in banks, offices, and restaurants. A slim line profile and easy-to-install Mounting Base have made them a favorite in the industry. The glass is easily secured into the glazing channels using Cat. No. 33SC Clear Silicone. Also available in some finishes and sizes are Custom 135 Degree Posts. Each Post contains one attached Top Cap, one attached Mounting Base, and four Wood Screws for mounting.

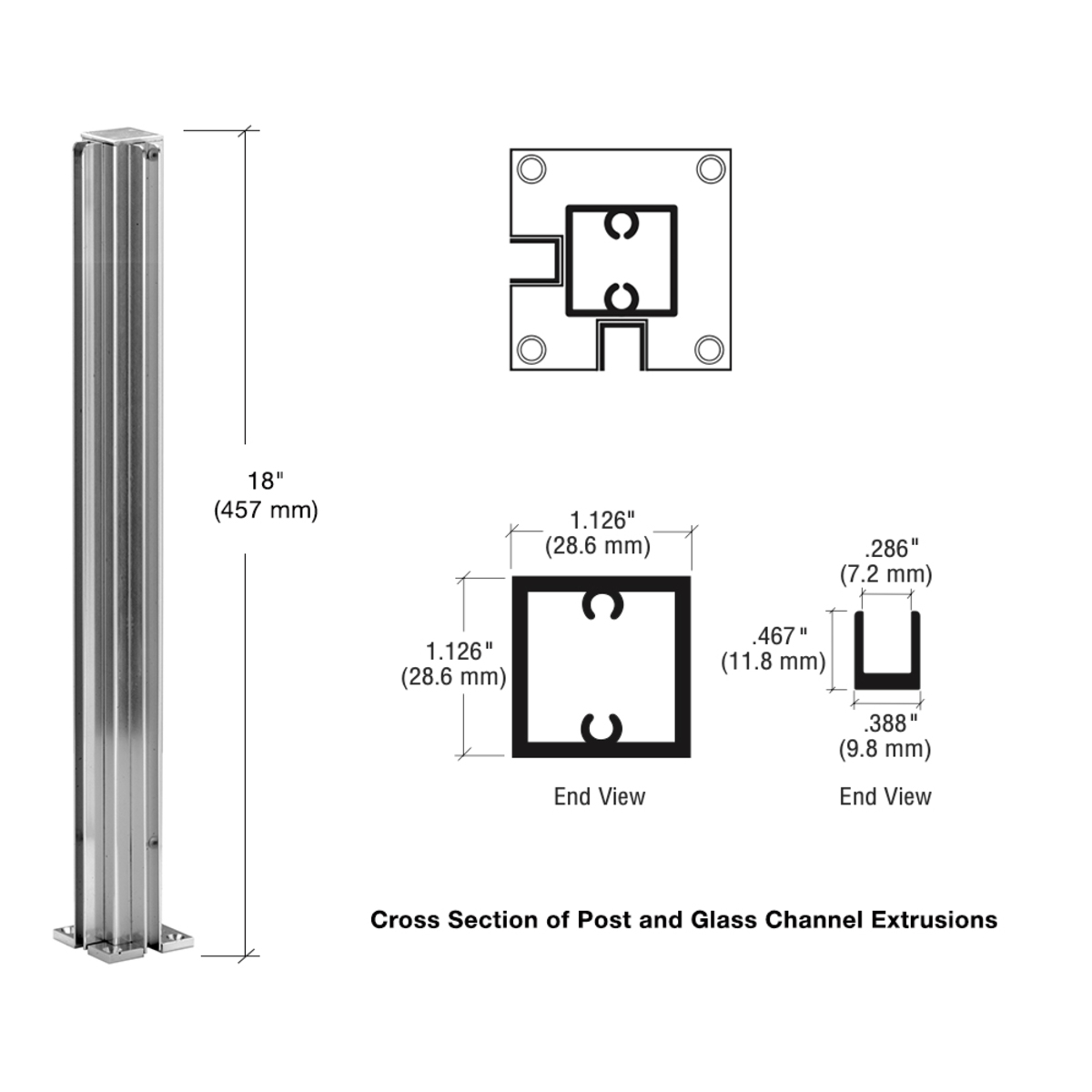

These fully assembled Design Series Posts measure 1-1/8" (28.6 mm) square. Post Mounting Base Plates measure 2" (51 mm) square. Glazing Channels measure full length and rise 15/32" (12 mm) from the post surface. Glazing Vinyl for 1/4" (6 mm) and 3/16" (5 mm) glass is supplied to fill glass channel.
You can also "Make Your Own" Design Series Partition Posts With CRL Components.
Instructions and requirements, " target="_blank">https://catalogs.crlaurence.com/CRL93G-Glass-and-Glazing/GG182/">Instructions and requirements,
parts page.
Product Warning:
The glass is easily secured into the glazing channels using Cat. No. 33SC Clear Silicone.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Base Type: Square Flat - Mechanical
Cap Type: Flat
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Configuration: 90 Degree Corner Post
Finish/ Color:: Brite Anodized
Glazed: No
Glazing Attachment Type: U-Channel
Glazing Thickness: 1/4 in. (6 mm)
Height: 18 in. (457.2 mm)
Material: Aluminum
Series: Design
Shipping Limitations: None
Tube Size: 1-1/8 in. (28.6 mm)
Tube Type: Square
