CRL D990BA18E Brite Anodized 18
Images may not represent actual product and finish

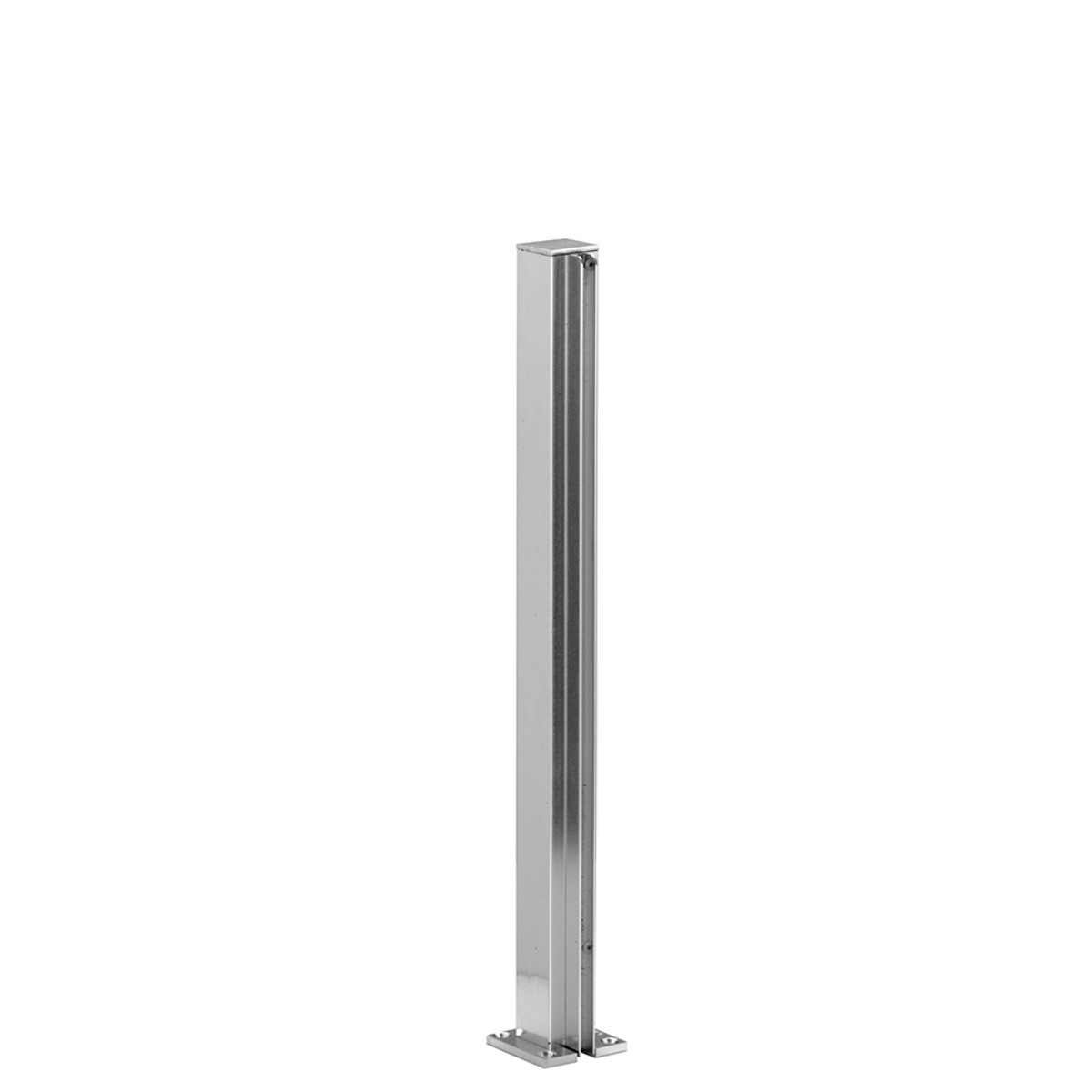

CRL D990BA18E Brite Anodized 18" End Design Partition Post

Your Price: $89.12
Retail Price:$106.69
Your Savings:$17.57(16%)
CRL D990BA18E Brite Anodized 18" End Post: Durable aluminum partition post for 1/4" glass, available in multiple finishes and configurations.
Part Number : CRL_D990BA18E
Availability: 21 In Stock
CRL D990BA18E Brite Anodized 18" End Design Partition Post

Brite Anodized 18" End Design Series Partition Post

  • Stock Post Sizes, RED-E to Ship
  • Standard Heights of 12", 18", and 24" (305, 457, and 610 mm) Available in Four Finishes
  • Five Standard Configurations – End, Center, Corner, 3-Way, and 4-Way
  • Aluminum Tubing With Full Length Channels for 1/4" (6 mm) Glass
  • Top Cap and Mounting Base Included
  • Use Monolithic Tempered Glass

CRL Design Series Partition Posts are very popular, available in the standard stock sizes and are ready for immediate delivery. These Posts have been used for years in banks, offices, and restaurants. A slim line profile and easy-to-install Mounting Base have made them a favorite in the industry. The glass is easily secured into the glazing channels using Cat. No. 33SC Clear Silicone. Also available in some finishes and sizes are Custom 135 Degree Posts. Each Post contains one attached Top Cap, one attached Mounting Base, and four Wood Screws for mounting.

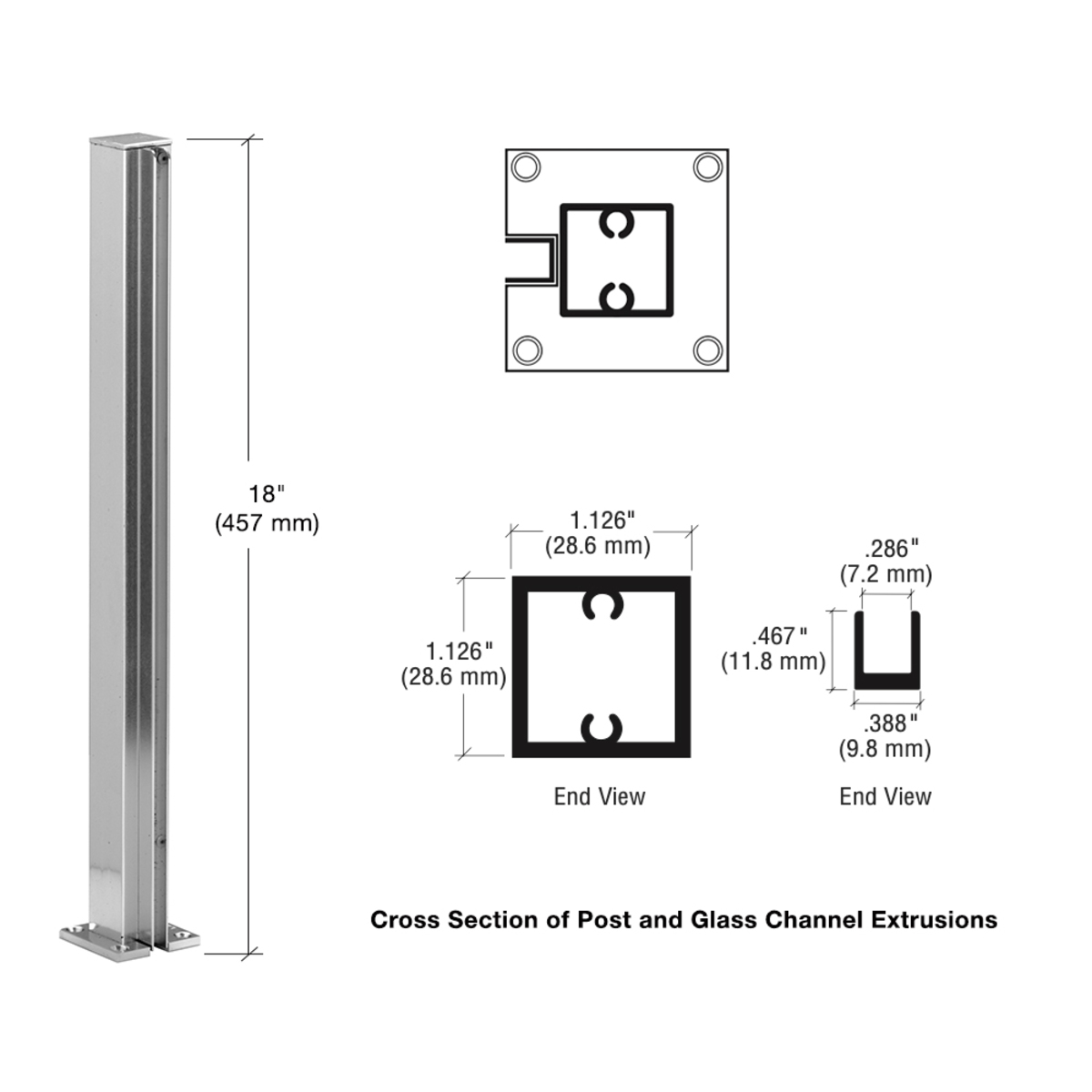

These fully assembled Design Series Posts measure 1-1/8" (28.6 mm) square. Post Mounting Base Plates measure 2" (51 mm) square. Glazing Channels measure full length and rise 15/32" (12 mm) from the post surface. Glazing Vinyl for 1/4" (6 mm) and 3/16" (5 mm) glass is supplied to fill glass channel.

You can also "Make Your Own" Design Series Partition Posts With CRL Components. Instructions and requirements, " target="_blank">https://catalogs.crlaurence.com/CRL93G-Glass-and-Glazing/GG182/">Instructions and requirements, parts page.


Product Warning:

The glass is easily secured into the glazing channels using Cat. No. 33SC Clear Silicone.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.


Attributes

Base Type: Square Flat - Mechanical

Cap Type: Flat

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Configuration: Non-Handed End Post

Finish/ Color:: Brite Anodized

Glazed: No

Glazing Attachment Type: U-Channel

Glazing Thickness: 1/4 in. (6 mm)

Height: 18 in. (457.2 mm)

Material: Aluminum

Series: Design

Shipping Limitations: None

Tube Size: 1-1/8 in. (28.6 mm)

Tube Type: Square
