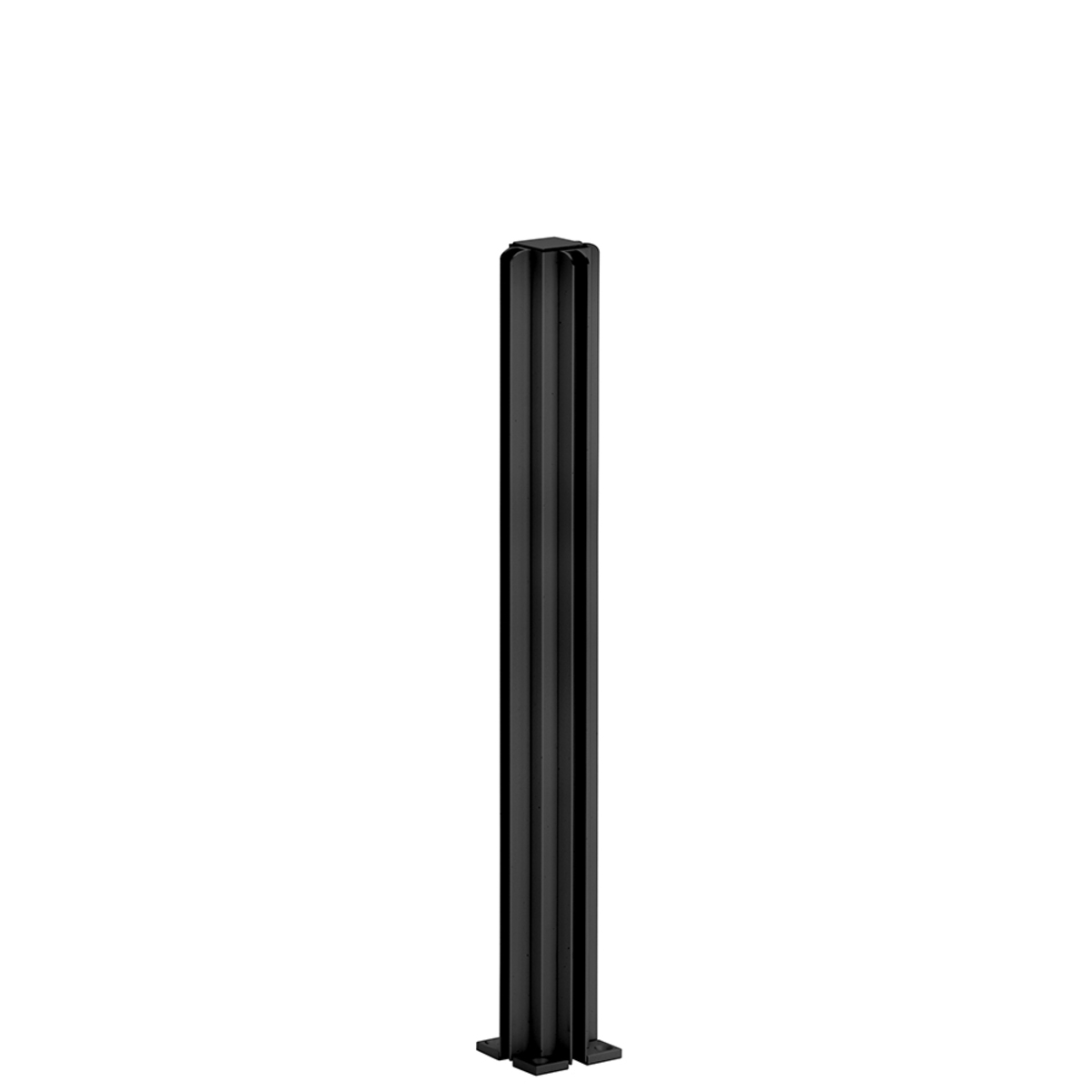

CRL D990BL184W 18" Semi-Gloss Black 4-Way Partition PostC.R. Laurence D990BL184W Semi-Gloss Black 18" 4-Way Design Series Partition Post is an essential component for creating stylish and functional glass partitions in various settings, including banks, offices, and restaurants. This post features a slim profile and is designed for easy installation with its included Mounting Base, making it a preferred choice among building professionals. Constructed from durable aluminum, the post measures 1-1/8" (28.6 mm) square and is compatible with monolithic tempered glass in thicknesses of 3/16" (5 mm) and 1/4" (6 mm). It comes fully assembled, complete with a Top Cap and Mounting Base, ensuring a seamless integration into your glass systems. The glazing channels are full-length, rising 15/32" (12 mm) from the post surface, allowing for secure glass placement using Cat. No. 33SC Clear Silicone. Available in standard heights of 12", 18", and 24", this post comes in four attractive finishes to suit various design aesthetics. The D990BL184W's 4-way configuration offers versatility, making it ideal for diverse architectural applications. With immediate availability and stock sizes ready to ship, this partition post is a reliable solution for any glazing project.
Semi-Gloss Black 18" 4-Way Design Series Partition Post
- Stock Post Sizes, RED-E to Ship
- Standard Heights of 12", 18", and 24" (305, 457, and 610 mm) Available in Four Finishes
- Five Standard Configurations – End, Center, Corner, 3-Way, and 4-Way
- Aluminum Tubing with Full Length Channels for 1/4" (6 mm) Glass
- Top Cap and Mounting Base Included
- Use Monolithic Tempered Glass
CRL Design Series Partition Posts are very popular, available in the standard stock sizes and are ready for immediate delivery. These Posts have been used for years in banks, offices, and restaurants. A slim line profile and easy-to-install Mounting Base have made them a favorite in the industry. The glass is easily secured into the glazing channels using Cat. No. 33SC Clear Silicone. Also available in some finishes and sizes are Custom 135 Degree Posts. Each Post contains one attached Top Cap, one attached Mounting Base, and four Wood Screws for mounting.

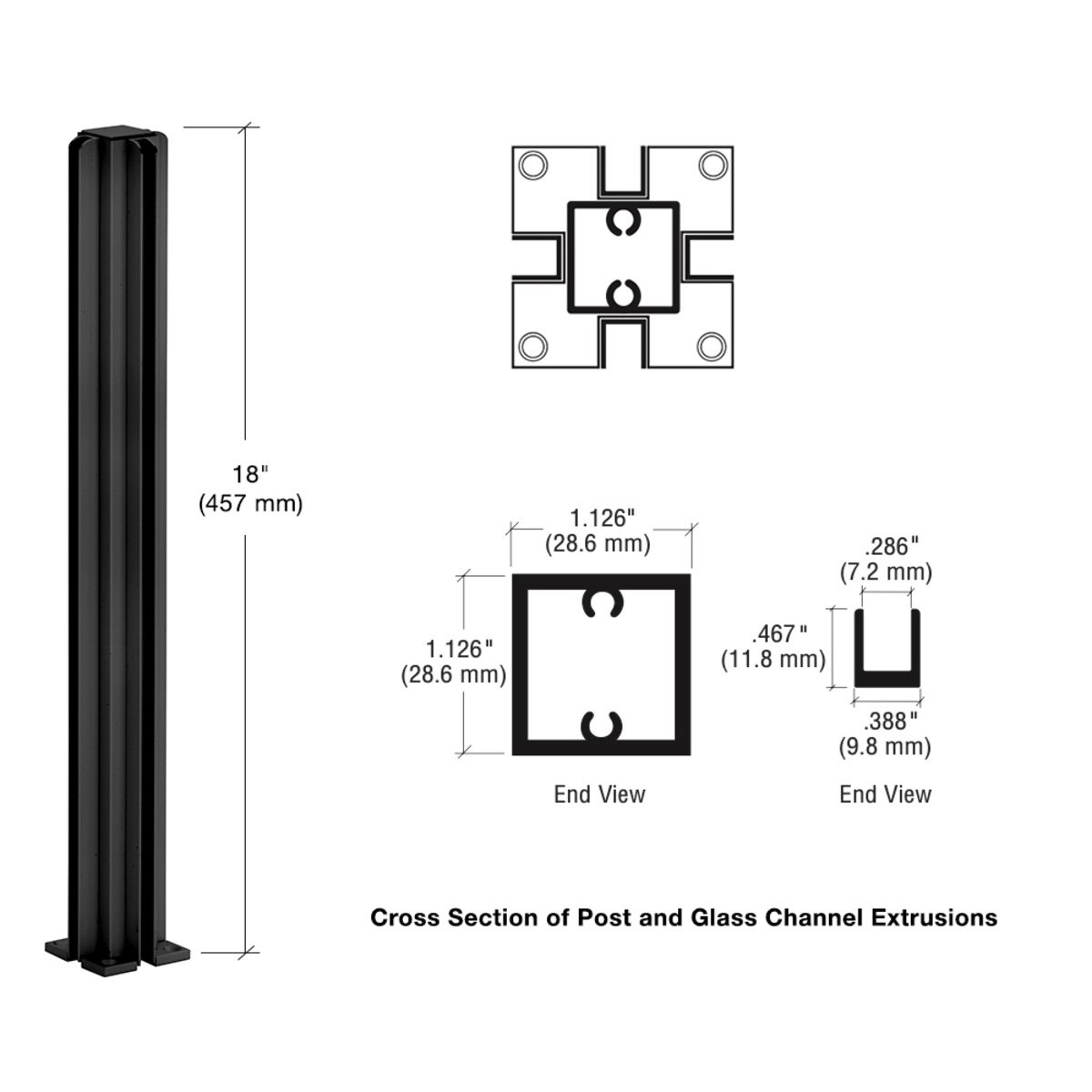

These fully assembled Design Series Posts measure 1-1/8" (28.6 mm) square. Post Mounting Base Plates measure 2" (51 mm) square. Glazing Channels measure full length and rise 15/32" (12 mm) from the post surface. Glazing Vinyl for 1/4" (6 mm) and 3/16" (5 mm) glass is supplied to fill glass channel.
You can also "Make Your Own" Design Series Partition Posts With CRL Components.
Product Warning:
The glass is easily secured into the glazing channels using Cat. No. 33SC Clear Silicone.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Configuration: 4 Way
Finish/ Color:: Semi-Gloss Black (PSP290005)
Glazing Thickness: 3/16 in. & 1/4 in. (5 mm & 6 mm)
Height: 18 in. (457.2 mm)
Height - Overall: 18 in. (457.2 mm)
Includes: Top Cap And Mounting Base
Material: Aluminum
Series: Design
Shipping Limitations: None
Size - Base: 2 in. (50.8 mm)
Tube Size: 1-1/8 in. (28.6 mm)
Tube Type: Square
Width - Base Plate: 1-1/8 in. (28.6 mm)
