CRL D990BL24C Semi-Gloss Black 24" Center Design Partition PostC.R. Laurence D990BL24C Semi-Gloss Black 24" Center Design Series Partition Post offers a sleek and modern solution for your architectural needs. Crafted from durable aluminum, this post features a slim profile measuring 1-1/8" (28.6 mm) square, making it both aesthetically pleasing and functional. Designed for versatility, it accommodates monolithic tempered glass with glazing thickness options of 3/16" (5 mm) and 1/4" (6 mm). Available in standard heights of 12", 18", and 24" (305, 457, and 610 mm), the D990BL24C comes ready to ship, allowing for quick installation in various settings, including banks, offices, and restaurants. The included top cap and mounting base simplify the installation process, while full-length glazing channels ensure secure glass retention. With five standard configurations-end, center, corner, 3-way, and 4-way-you have the flexibility to create customized layouts. Additionally, the post comes with glazing vinyl to fill the glass channel seamlessly, enhancing both function and appearance. To ensure a secure hold, use Cat. No. 33SC Clear Silicone for glass installation. The D990BL24C is an excellent choice for building professionals and discerning homeowners looking for quality and style in their partition systems.

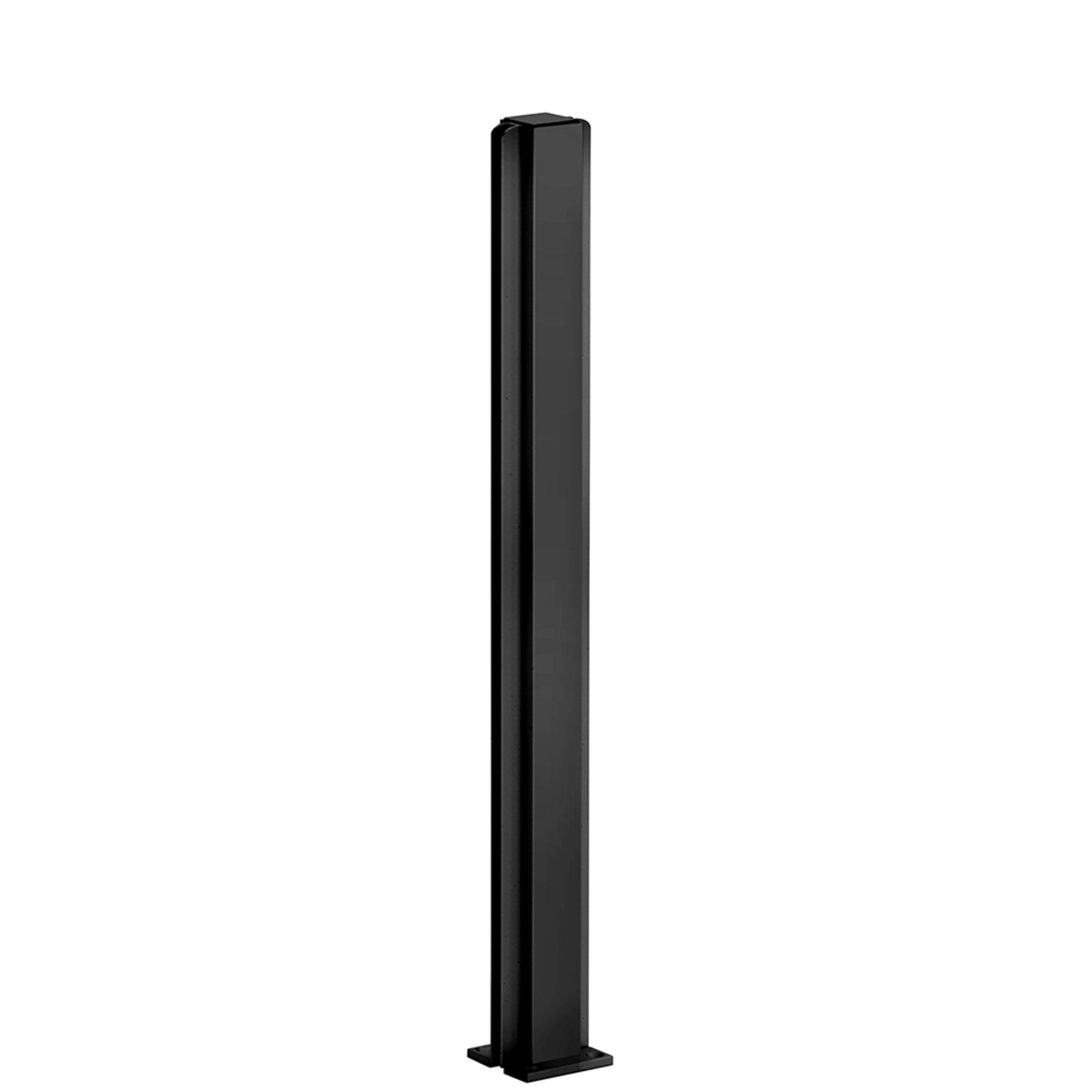

Semi-Gloss Black 24" Center Design Series Partition Post
- Stock Post Sizes, RED-E to Ship
- Standard Heights of 12", 18", and 24" (305, 457, and 610 mm) Available in Four Finishes
- Five Standard Configurations – End, Center, Corner, 3-Way, and 4-Way
- Aluminum Tubing With Full Length Channels for 1/4" (6 mm) Glass
- Top Cap and Mounting Base Included
- Use Monolithic Tempered Glass
CRL Design Series Partition Posts are very popular, available in the standard stock sizes and are ready for immediate delivery. These Posts have been used for years in banks, offices, and restaurants. A slim line profile and easy-to-install Mounting Base have made them a favorite in the industry. The glass is easily secured into the glazing channels using Cat. No. 33SC Clear Silicone. Also available in some finishes and sizes are Custom 135 Degree Posts. Each Post contains one attached Top Cap, one attached Mounting Base, and four Wood Screws for mounting.

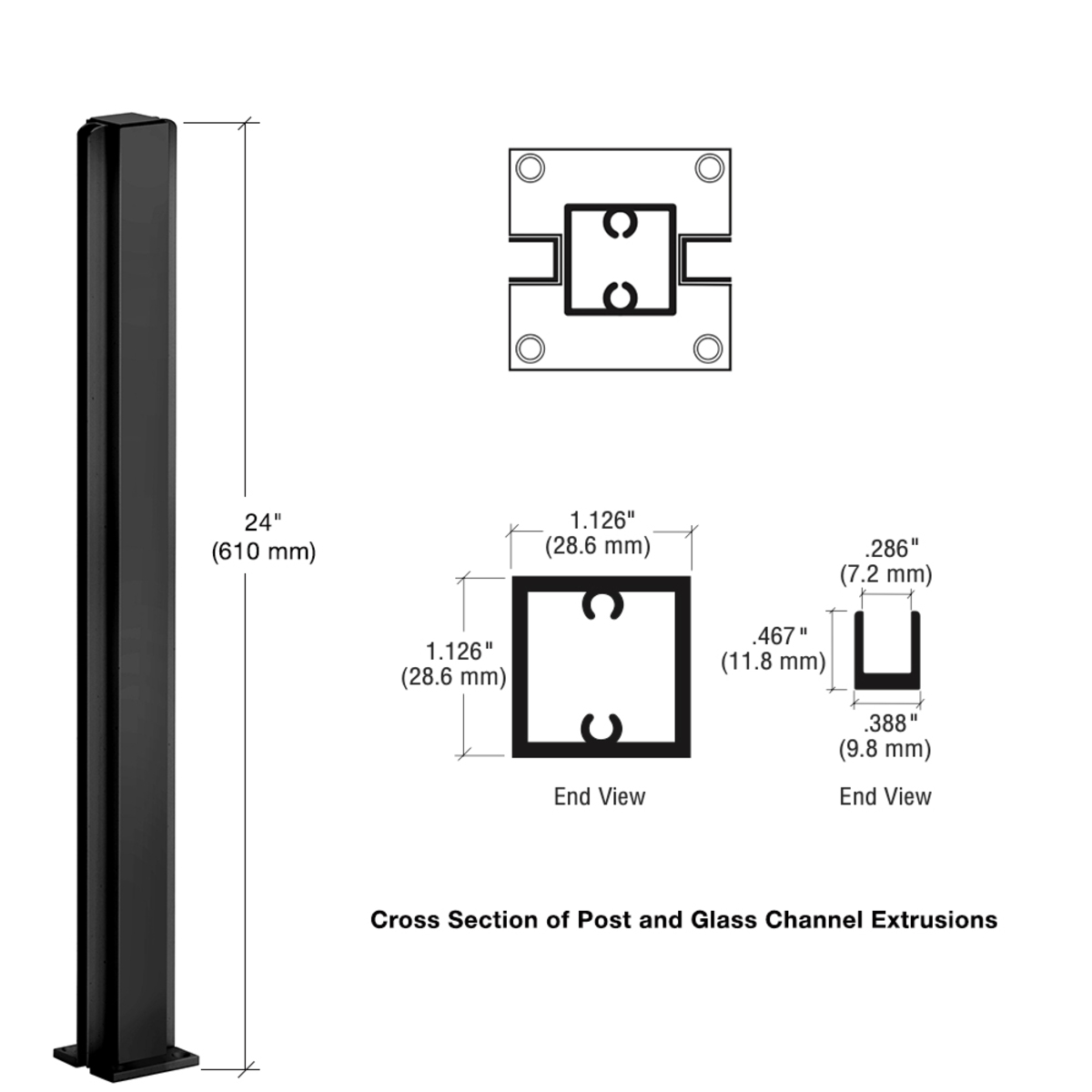

These fully assembled Design Series Posts measure 1-1/8" (28.6 mm) square. Post Mounting Base Plates measure 2" (51 mm) square. Glazing Channels measure full length and rise 15/32" (12 mm) from the post surface. Glazing Vinyl for 1/4" (6 mm) and 3/16" (5 mm) glass is supplied to fill glass channel.
You can also "Make Your Own" Design Series Partition Posts With CRL Components.
Product Warning:
The glass is easily secured into the glazing channels using Cat. No. 33SC Clear Silicone.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Configuration: Center
Finish/ Color:: Semi-Gloss Black (PSP290005)
Glazing Thickness: 3/16 in. & 1/4 in. (5 mm & 6 mm)
Height: 24 in. (609.6 mm)
Height - Overall: 24 in. (609.6 mm)
Includes: Top Cap And Mounting Base
Material: Aluminum
Series: Design
Shipping Limitations: None
Size - Base: 2 in. (50.8 mm)
Tube Size: 1-1/8 in. (28.6 mm)
Tube Type: Square
Width - Base Plate: 1-1/8 in. (28.6 mm)
