CRL D990DU12C Duranodic Bronze 12" Center Design Partition PostC.R. Laurence D990DU12C Duranodic Bronze 12" Center Design Series Partition Post offers a reliable solution for partitioning spaces in commercial environments. Designed for versatility, this post is available in standard heights of 12", 18", and 24" (305, 457, and 610 mm) and can be customized with four attractive finishes to suit your aesthetic preferences. Its five standard configurations-End, Center, Corner, 3-Way, and 4-Way-make it an adaptable choice for various layouts. Constructed from durable aluminum tubing, each post features full-length glazing channels designed to accommodate 1/4" (6 mm) tempered glass, ensuring a secure and stable installation. The product includes a top cap and mounting base for easy setup, along with glazing vinyl to fill the glass channel. With dimensions of 1-1/8" (28.6 mm) square and a mounting base plate measuring 2" (51 mm) square, the D990DU12C is both compact and robust. Ideal for use in banks, offices, and restaurants, this partition post combines functionality with a sleek profile. For those looking to create their own designs, CRL components are available to customize your partition solutions further. Enhance your space with the C.R. Laurence D990DU12C, where quality meets elegance in design.
Duranodic Bronze 12" Center Design Series Partition Post
- Stock Post Sizes, RED-E to Ship
- Standard Heights of 12", 18", and 24" (305, 457, and 610 mm) Available in Four Finishes
- Five Standard Configurations – End, Center, Corner, 3-Way, and 4-Way
- Aluminum Tubing With Full Length Channels for 1/4" (6 mm) Glass
- Top Cap and Mounting Base Included
- Use Monolithic Tempered Glass
CRL Design Series Partition Posts are very popular, available in the standard stock sizes and are ready for immediate delivery. These Posts have been used for years in banks, offices, and restaurants. A slim line profile and easy-to-install Mounting Base have made them a favorite in the industry. The glass is easily secured into the glazing channels using Cat. No. 33SC Clear Silicone. Also available in some finishes and sizes are Custom 135 Degree Posts. Each Post contains one attached Top Cap, one attached Mounting Base, and four Wood Screws for mounting.

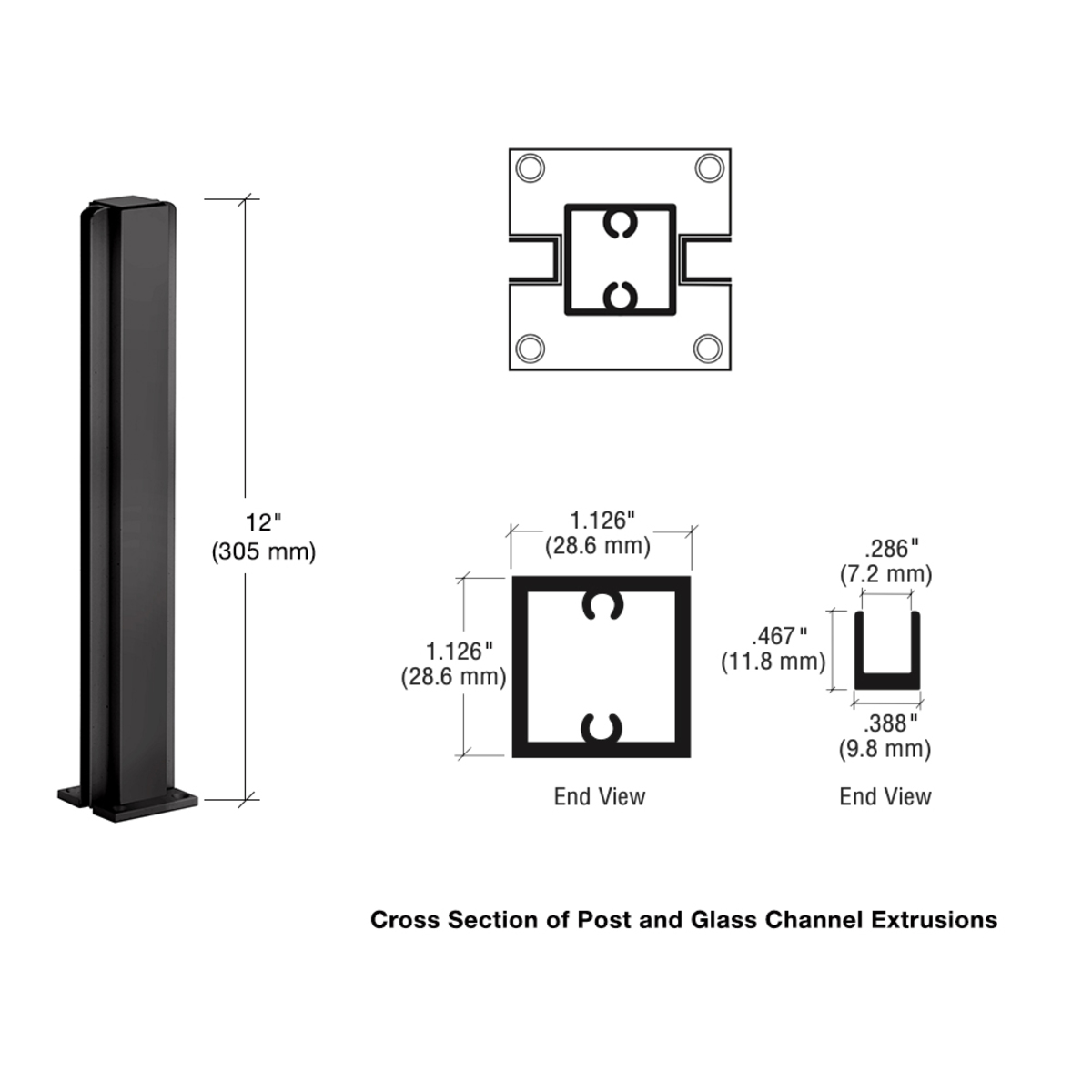

These fully assembled Design Series Posts measure 1-1/8" (28.6 mm) square. Post Mounting Base Plates measure 2" (51 mm) square. Glazing Channels measure full length and rise 15/32" (12 mm) from the post surface. Glazing Vinyl for 1/4" (6 mm) and 3/16" (5 mm) glass is supplied to fill glass channel.
You can also "Make Your Own" Design Series Partition Posts With CRL Components.
Instructions and requirements, " target="_blank">https://catalogs.crlaurence.com/CRL93G-Glass-and-Glazing/GG182/">Instructions and requirements,
parts page.
Product Warning:
The glass is easily secured into the glazing channels using Cat. No. 33SC Clear Silicone.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Base Type: Square Flat - Mechanical
Cap Type: Flat
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Configuration: Center Post
Finish/ Color:: Dark Bronze Anodized
Glazed: No
Glazing Attachment Type: U-Channel
Glazing Thickness: 1/4 in. (6 mm)
Height: 12 in. (304.8 mm)
Material: Aluminum
Series: Design
Shipping Limitations: None
Tube Size: 1-1/8 in. (28.6 mm)
Tube Type: Square
