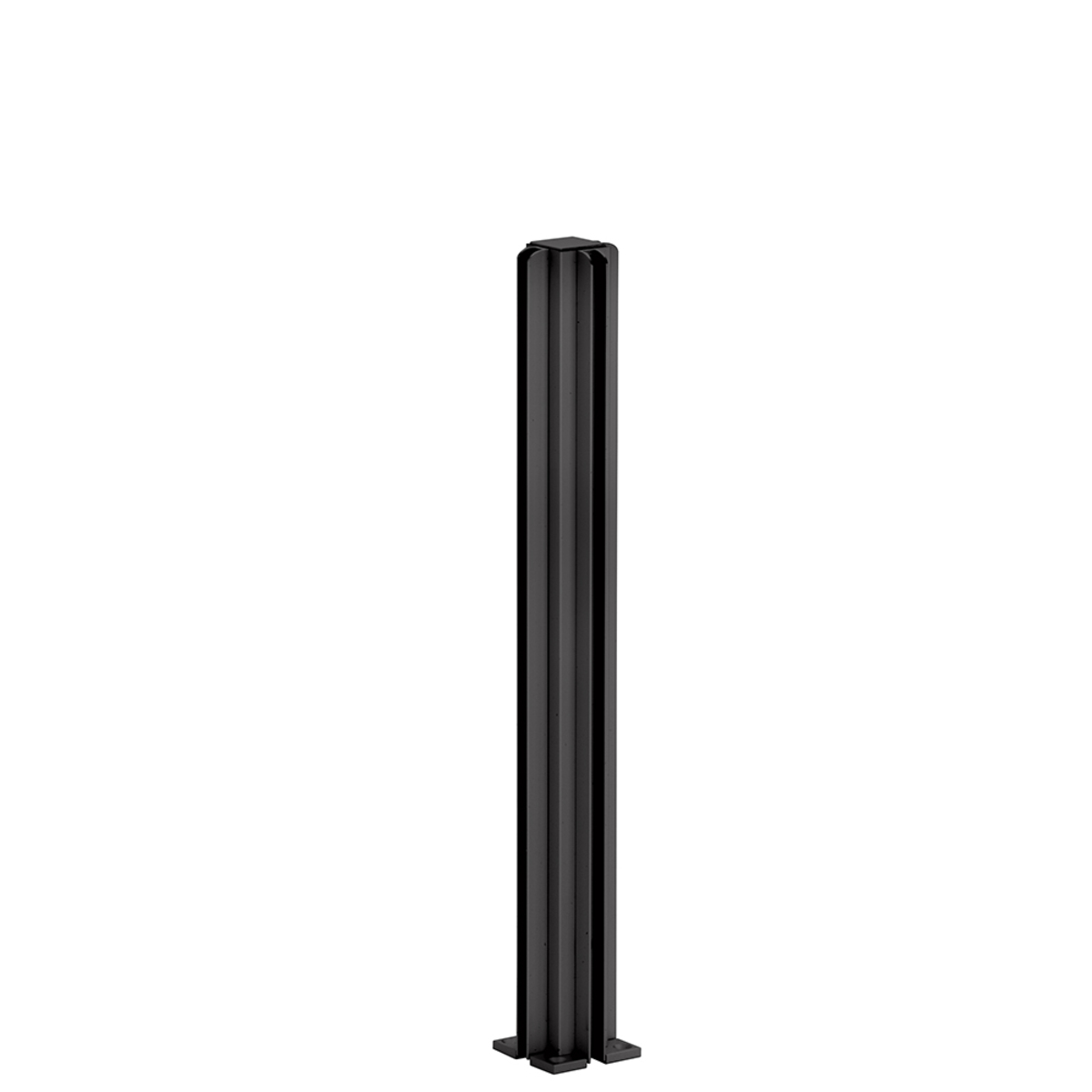

CRL D990DU183W Duranodic Bronze 18" 3-Way Partition PostC.R. Laurence D990DU183W Duranodic Bronze 18" 3-Way Design Series Partition Post offers a sleek and functional solution for modern spaces, especially in banks, offices, and restaurants. This stock post is readily available and features an elegant slim profile that makes installation straightforward. Constructed from durable aluminum, it accommodates monolithic tempered glass with a thickness of 1/4" (6 mm) using full-length glazing channels, ensuring sturdy support and safety. Measuring 1-1/8" (28.6 mm) square and standing at 18" (457.2 mm) tall, this post includes a top cap and mounting base for easy setup. The mounting base plates are designed to be 2" (51 mm) square, providing a stable foundation. With five standard configurations, including the versatile 3-way design, the D990DU183W adapts to various architectural needs. To secure the glass, use Cat. No. 33SC Clear Silicone, which simplifies the glazing process. Additionally, CRL offers customization options for those looking to create unique partition solutions. With no shipping limitations and a dark bronze anodized finish, this partition post combines functionality with aesthetic appeal, making it an ideal choice for any professional setting.
Duranodic Bronze 18" 3-Way Design Series Partition Post
- Stock Post Sizes, RED-E to Ship
- Standard Heights of 12", 18", and 24" (305, 457, and 610 mm) Available in Four Finishes
- Five Standard Configurations – End, Center, Corner, 3-Way, and 4-Way
- Aluminum Tubing With Full Length Channels for 1/4" (6 mm) Glass
- Top Cap and Mounting Base Included
- Use Monolithic Tempered Glass
CRL Design Series Partition Posts are very popular, available in the standard stock sizes and are ready for immediate delivery. These Posts have been used for years in banks, offices, and restaurants. A slim line profile and easy-to-install Mounting Base have made them a favorite in the industry. The glass is easily secured into the glazing channels using Cat. No. 33SC Clear Silicone. Also available in some finishes and sizes are Custom 135 Degree Posts. Each Post contains one attached Top Cap, one attached Mounting Base, and four Wood Screws for mounting.

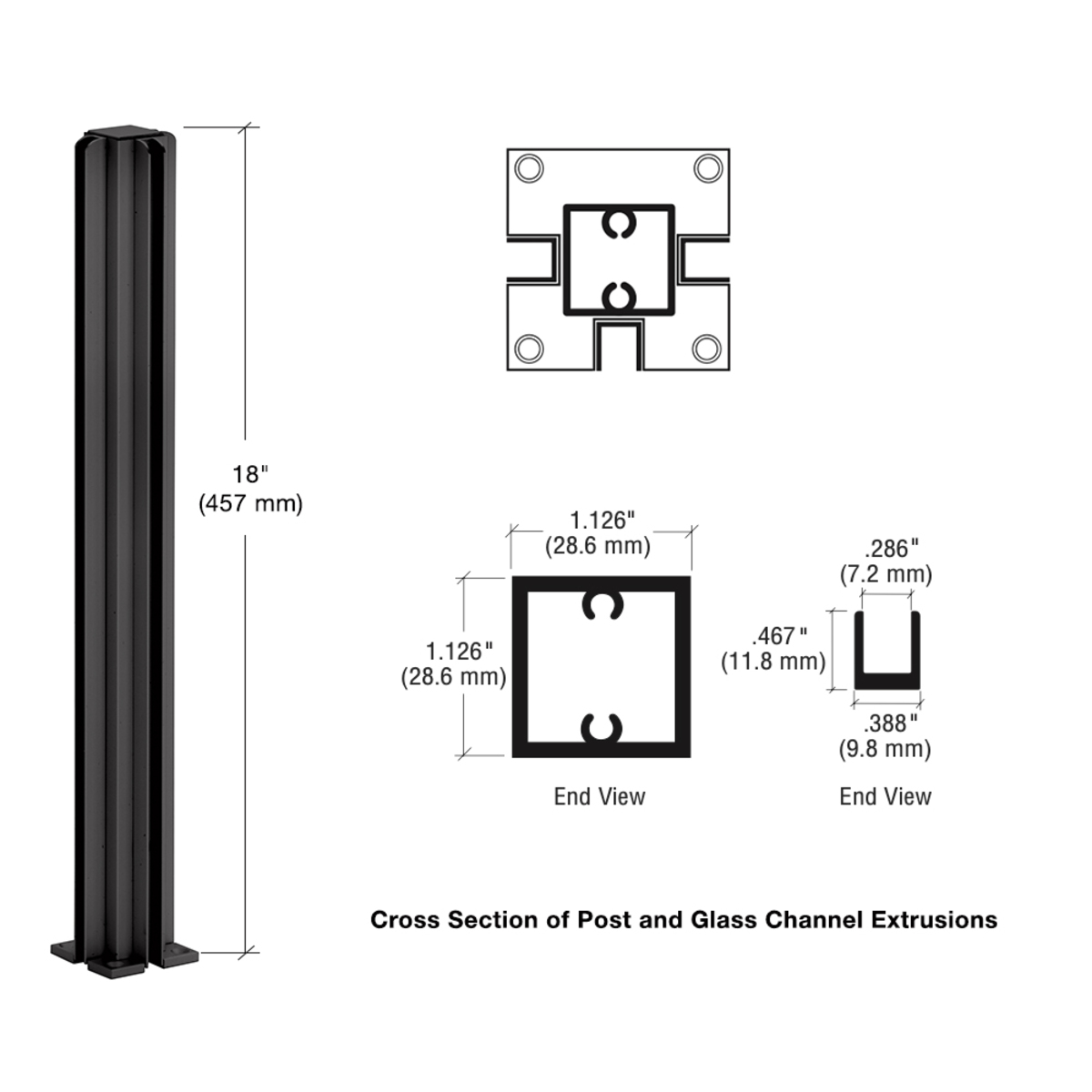

These fully assembled Design Series Posts measure 1-1/8" (28.6 mm) square. Post Mounting Base Plates measure 2" (51 mm) square. Glazing Channels measure full length and rise 15/32" (12 mm) from the post surface. Glazing Vinyl for 1/4" (6 mm) and 3/16" (5 mm) glass is supplied to fill glass channel.
You can also "Make Your Own" Design Series Partition Posts With CRL Components.
Instructions and requirements, " target="_blank">https://catalogs.crlaurence.com/CRL93G-Glass-and-Glazing/GG182/">Instructions and requirements,
parts page.
Product Warning:
The glass is easily secured into the glazing channels using Cat. No. 33SC Clear Silicone.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Base Type: Square Flat - Mechanical
Cap Type: Flat
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Configuration: 3-Way Post
Finish/ Color:: Dark Bronze Anodized
Glazed: No
Glazing Attachment Type: U-Channel
Glazing Thickness: 1/4 in. (6 mm)
Height: 18 in. (457.2 mm)
Material: Aluminum
Series: Design
Shipping Limitations: None
Tube Size: 1-1/8 in. (28.6 mm)
Tube Type: Square
