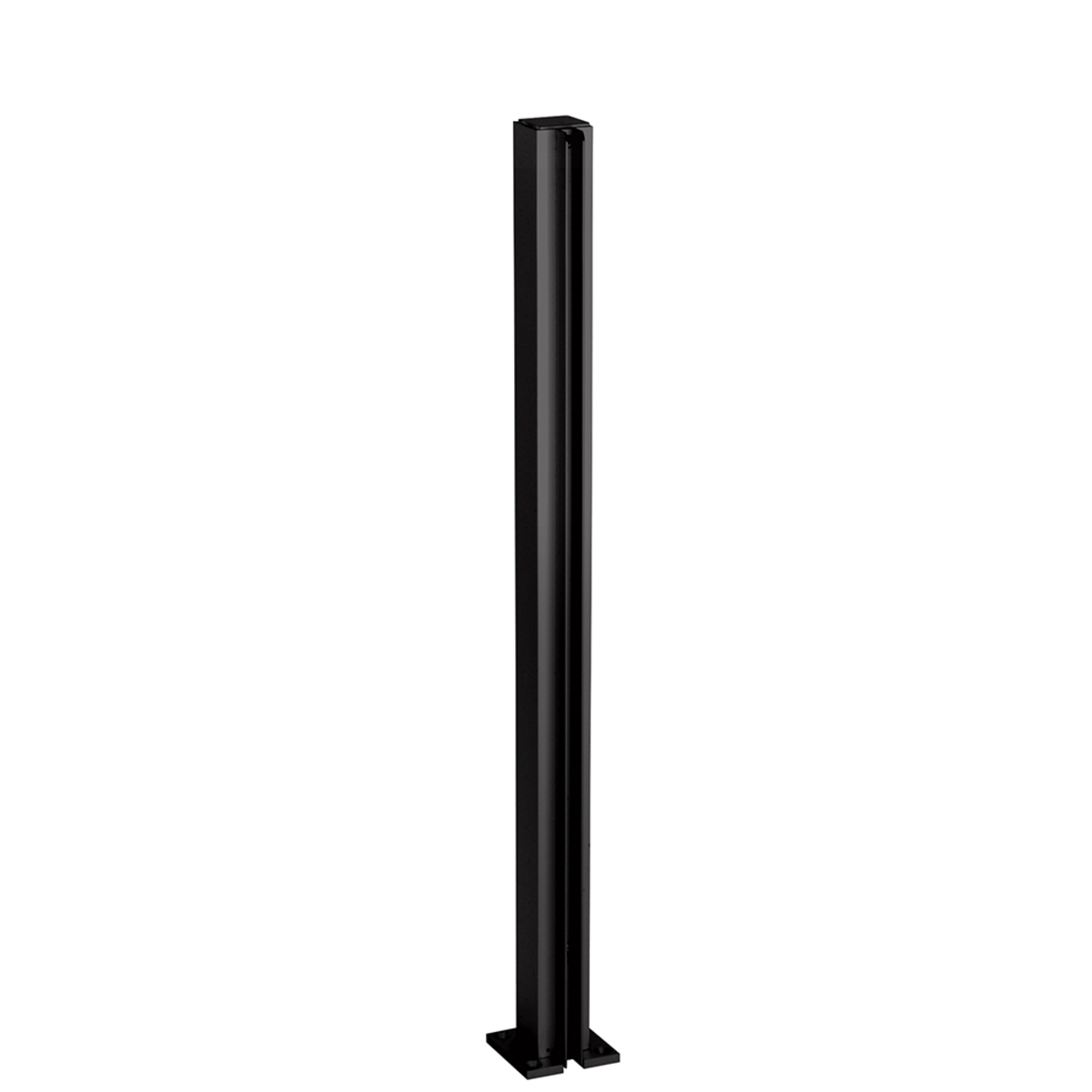

CRL D990DU24E Duranodic Bronze 24" End Design Partition PostC.R. Laurence D990DU24E Duranodic Bronze 24" End Design Series Partition Post offers a perfect solution for creating stylish and functional glass partitions in various settings, including banks, offices, and restaurants. This post measures 24 inches in height and features a sleek 1-1/8" square aluminum tubing design, ensuring both durability and aesthetic appeal. The full-length glazing channels accommodate 1/4" (6 mm) tempered glass, providing secure and stable attachment. Each post comes complete with a top cap and mounting base, facilitating straightforward installation. The included mounting base measures 2" square, enhancing stability during application. With five standard configurations available-End, Center, Corner, 3-Way, and 4-Way-this versatile post can meet a variety of design needs. The Duranodic Bronze finish adds a touch of elegance, making it suitable for upscale environments. For optimal glass securing, use the recommended Cat. No. 33SC Clear Silicone in the glazing channels. Additionally, CRL offers the option to customize your own Design Series Partition Posts using available components. The D990DU24E is a dependable choice for professionals seeking quality and flexibility in glass partition systems.
Duranodic Bronze 24" End Design Series Partition Post
- Stock Post Sizes, RED-E to Ship
- Standard Heights of 12", 18", and 24" (305, 457, and 610 mm) Available in Four Finishes
- Five Standard Configurations – End, Center, Corner, 3-Way, and 4-Way
- Aluminum Tubing With Full Length Channels for 1/4" (6 mm) Glass
- Top Cap and Mounting Base Included
- Use Monolithic Tempered Glass
CRL Design Series Partition Posts are very popular, available in the standard stock sizes and are ready for immediate delivery. These Posts have been used for years in banks, offices, and restaurants. A slim line profile and easy-to-install Mounting Base have made them a favorite in the industry. The glass is easily secured into the glazing channels using Cat. No. 33SC Clear Silicone. Also available in some finishes and sizes are Custom 135 Degree Posts. Each Post contains one attached Top Cap, one attached Mounting Base, and four Wood Screws for mounting.

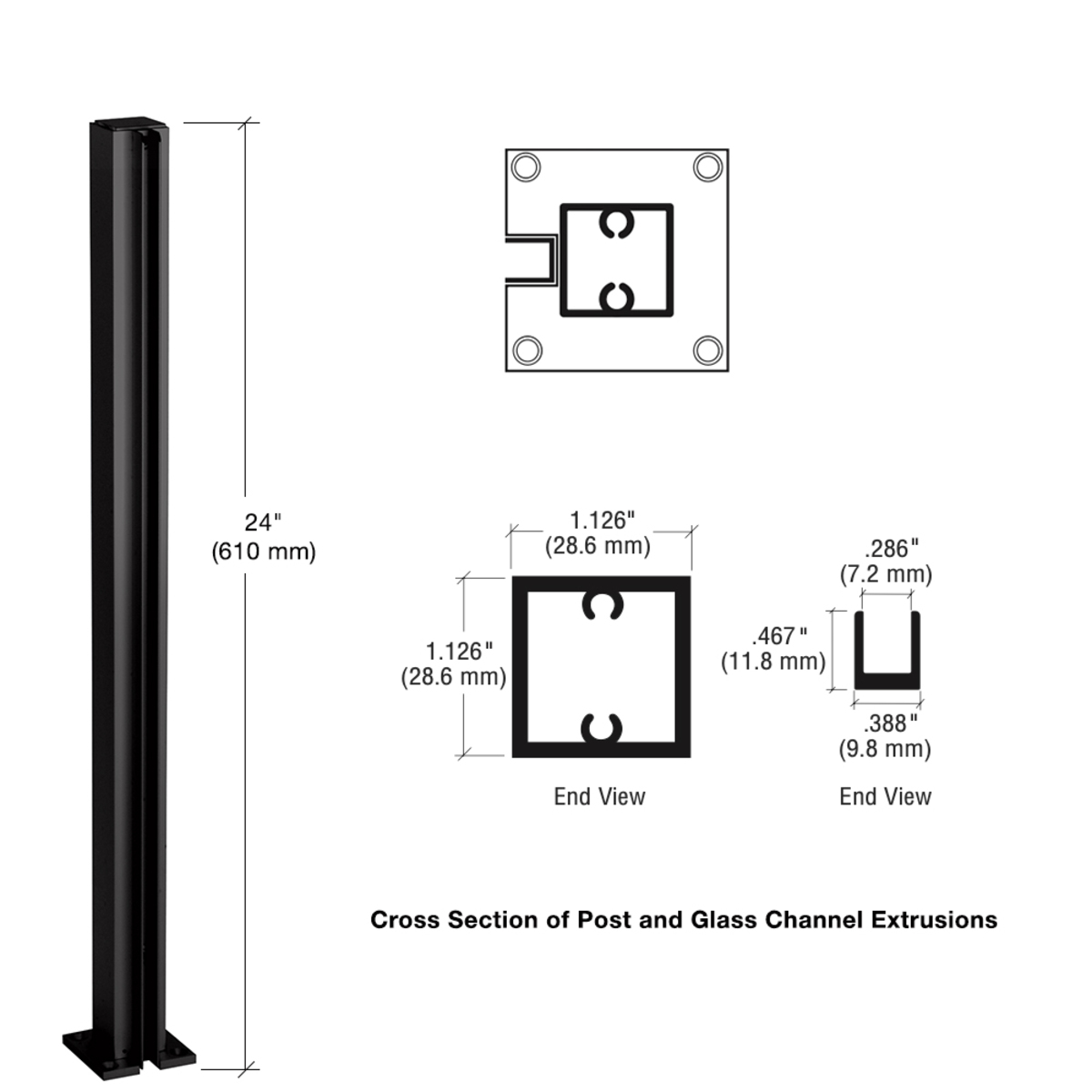

These fully assembled Design Series Posts measure 1-1/8" (28.6 mm) square. Post Mounting Base Plates measure 2" (51 mm) square. Glazing Channels measure full length and rise 15/32" (12 mm) from the post surface. Glazing Vinyl for 1/4" (6 mm) and 3/16" (5 mm) glass is supplied to fill glass channel.
You can also "Make Your Own" Design Series Partition Posts With CRL Components.
Instructions and requirements, " target="_blank">https://catalogs.crlaurence.com/CRL93G-Glass-and-Glazing/GG182/">Instructions and requirements,
parts page.
Product Warning:
The glass is easily secured into the glazing channels using Cat. No. 33SC Clear Silicone.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Base Type: Square Flat - Mechanical
Cap Type: Flat
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Configuration: Non-Handed End Post
Finish/ Color:: Dark Bronze Anodized
Glazed: No
Glazing Attachment Type: U-Channel
Glazing Thickness: 1/4 in. (6 mm)
Handing: End
Height: 24 in. (609.6 mm)
Material: Aluminum
Series: Design
Shipping Limitations: None
Tube Size: 1-1/8 in. (28.6 mm)
Tube Type: Square
