CRL D990DU30CR Duranodic Bronze 30" Corner Partition PostC.R. Laurence D990DU30CR Duranodic Bronze 30" Corner Design Series Partition Post offers a robust and stylish solution for modern architectural needs. This partition post is crafted from high-quality aluminum tubing and designed to accommodate 1/4" (6 mm) tempered glass, making it ideal for various applications in banks, offices, and restaurants. With a slimline profile measuring 1-1/8" (28.6 mm) square and a height of 30" (762 mm), it seamlessly integrates into your design while providing structural support. The post features full-length glazing channels that rise 15/32" (12 mm) from the surface, ensuring easy installation and secure glass attachment. Included are a top cap and a square mounting base measuring 2" (51 mm), along with four wood screws for straightforward assembly. The Duranodic Bronze finish adds an elegant touch, enhancing the aesthetic appeal of any space. Available in various configurations-end, center, corner, 3-way, and 4-way-this partition post is ready for immediate shipment and can be customized using CRL components. For optimal glass adhesion, use Cat. No. 33SC Clear Silicone. Elevate your architectural projects with the reliability and sophistication of the C.R. Laurence Design Series Partition Post.
Duranodic Bronze 30" Corner Design Series Partition Post
- Stock Post Sizes, RED-E to Ship
- Standard Heights of 12", 18", and 24" (305, 457, and 610 mm) Available in Four Finishes
- Five Standard Configurations – End, Center, Corner, 3-Way, and 4-Way
- Aluminum Tubing with Full Length Channels for 1/4" (6 mm) Glass
- Top Cap and Mounting Base Included
- Use Monolithic Tempered Glass
CRL Design Series Partition Posts are very popular, available in the standard stock sizes and are ready for immediate delivery. These Posts have been used for years in banks, offices, and restaurants. A slim line profile and easy-to-install Mounting Base have made them a favorite in the industry. The glass is easily secured into the glazing channels using Cat. No. 33SC Clear Silicone. Also available in some finishes and sizes are Custom 135 Degree Posts. Each Post contains one attached Top Cap, one attached Mounting Base, and four Wood Screws for mounting.

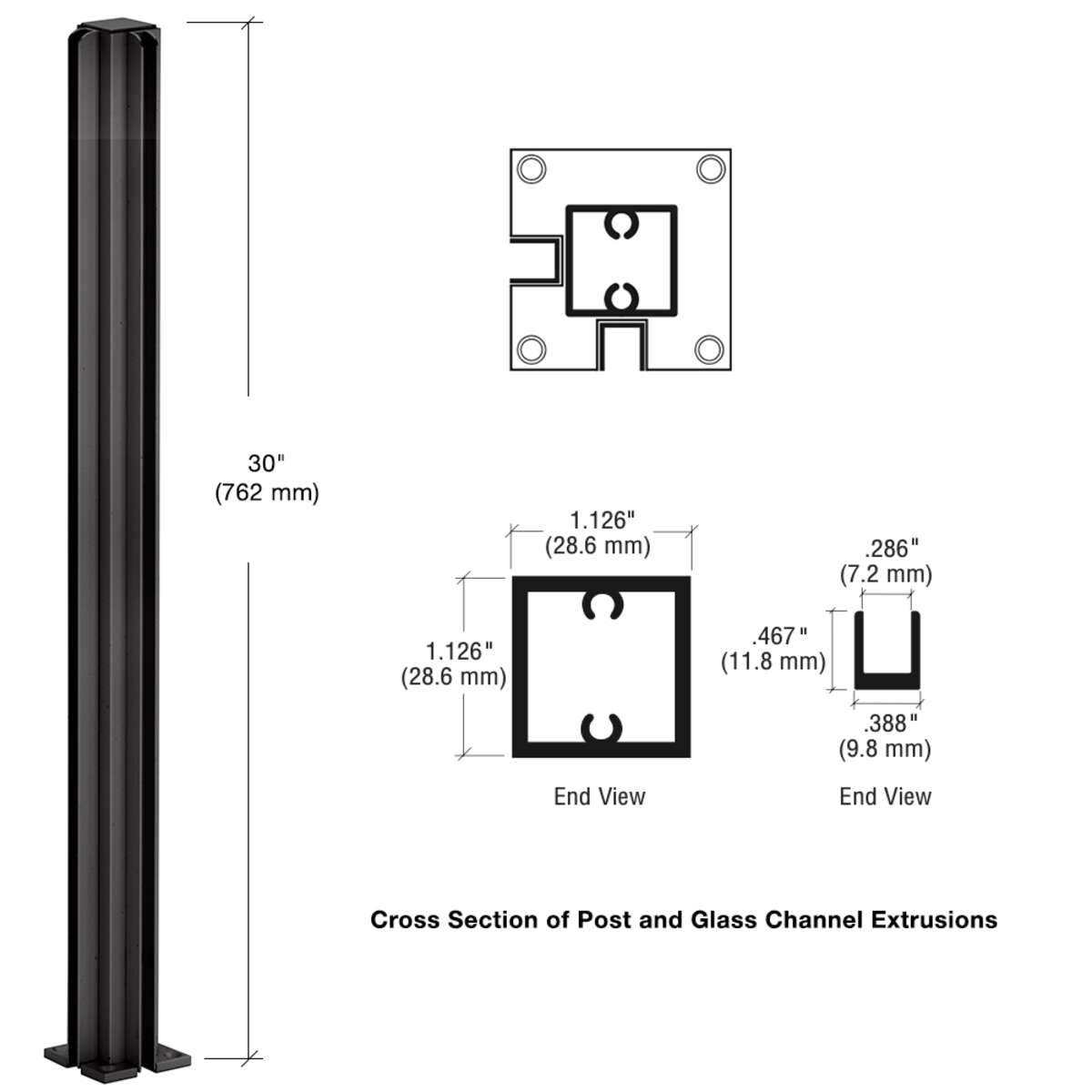

These fully assembled Design Series Posts measure 1-1/8" (28.6 mm) square. Post Mounting Base Plates measure 2" (51 mm) square. Glazing Channels measure full length and rise 15/32" (12 mm) from the post surface. Glazing Vinyl for 1/4" (6 mm) and 3/16" (5 mm) glass is supplied to fill glass channel.
You can also "Make Your Own" Design Series Partition Posts With CRL Components.
Instructions and requirements, " target="_blank">https://catalogs.crlaurence.com/CRL93G-Glass-and-Glazing/GG182/">Instructions and requirements,
parts page.
Product Warning:
The glass is easily secured into the glazing channels using Cat. No. 33SC Clear Silicone.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Base Type: Square Flat - Mechanical
Cap Type: Flat
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Configuration: 90 Degree Corner Post
Finish/ Color:: Dark Bronze Anodized
Glazed: No
Glazing Attachment Type: U-Channel
Glazing Thickness: 1/4 in. (6 mm)
Height: 30 in. (762 mm)
Material: Aluminum
Series: Design
Shipping Limitations: None
Tube Size: 1-1/8 in. (28.6 mm)
Tube Type: Square
