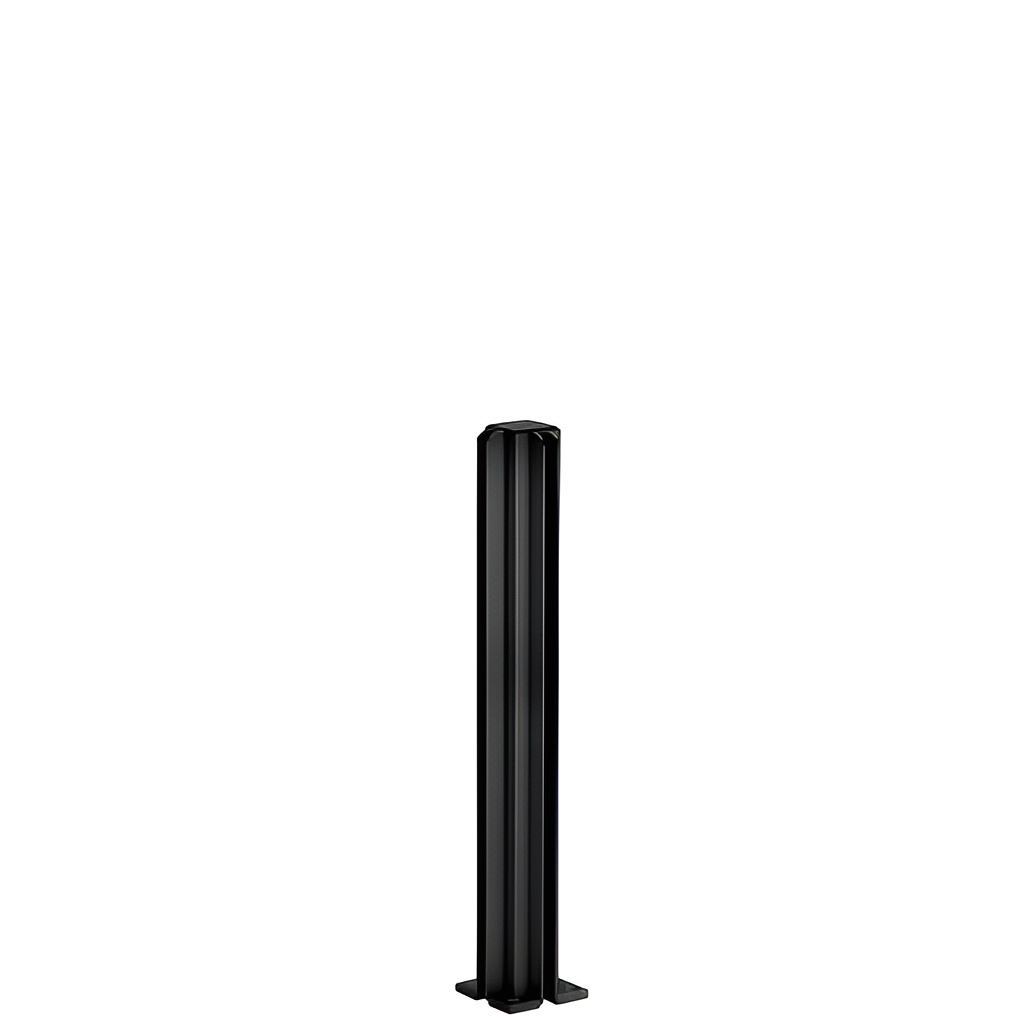

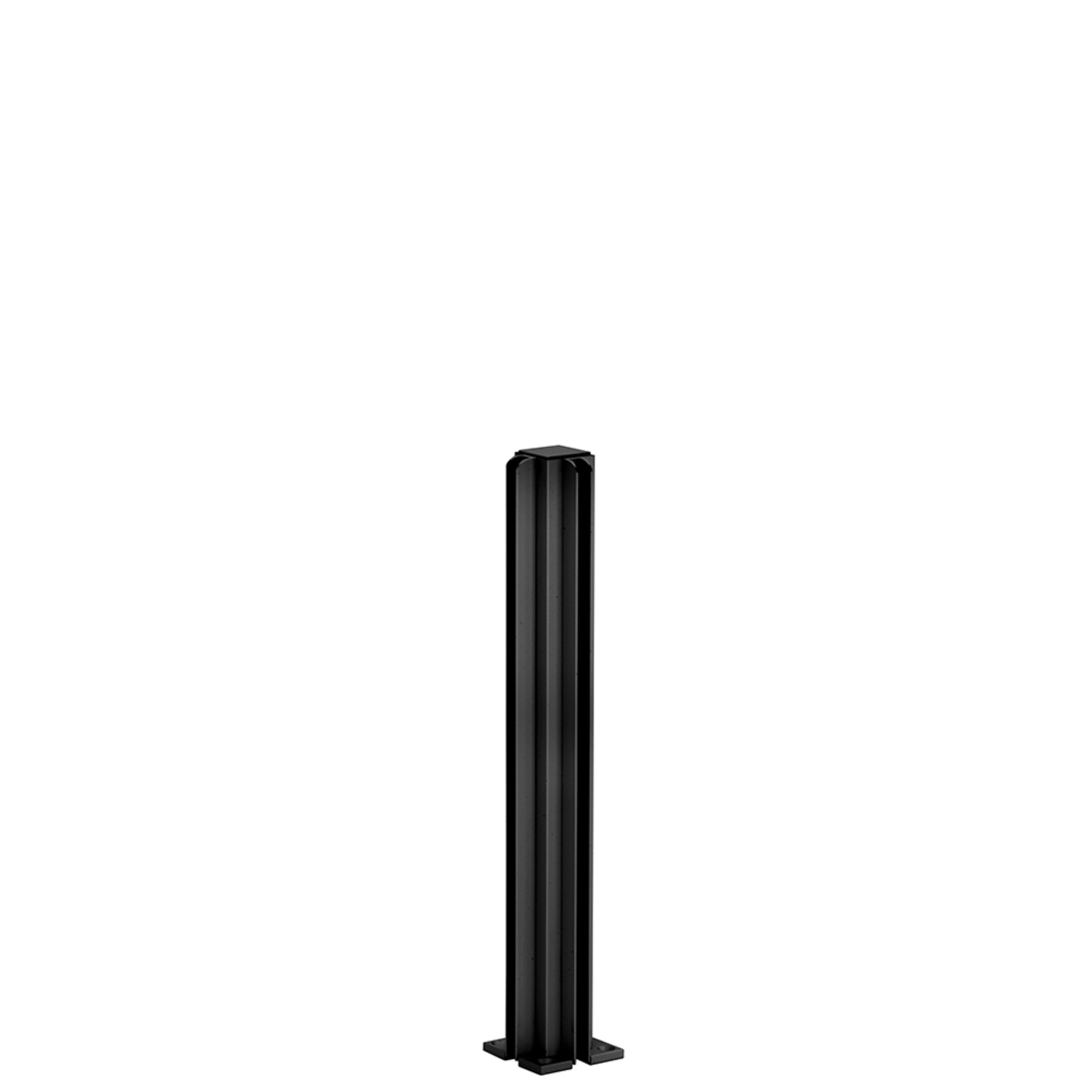

CRL D990MBL12CR Matte Black 12" Corner Design Partition PostC.R. Laurence D990MBL12CR Matte Black 12" Corner Design Series Partition Post combines functionality with a sleek aesthetic, making it an ideal choice for modern spaces like banks, offices, and restaurants. This post, constructed from durable aluminum, features a slim profile measuring 1-1/8" (28.6 mm) square, ensuring a contemporary look that complements any environment. With a standard height of 12" (304.8 mm) and a base diameter of 2" (50.8 mm), it is designed for easy installation and secure glass attachment. The corner post is equipped with full-length glazing channels that accommodate 1/4" (6 mm) tempered glass, ensuring robust support and stability. Included with each post are a top cap, mounting base, and wood screws for hassle-free assembly. The matte black finish adds a touch of sophistication, while the post is available in multiple configurations, including end, center, and three- or four-way options, allowing for versatile applications. This product is ready for immediate shipment, making it a convenient solution for your architectural needs. To secure glass within the channels, use Cat. No. 33SC Clear Silicone, ensuring a tight fit. For those looking to customize, CRL offers components to create your own design series partition posts.
Matte Black 12" Corner Design Series Partition Post
- Stock Post Sizes, RED-E to Ship
- Standard Heights of 12", 18", and 24" (305, 457, and 610 mm) Available in Four Finishes
- Five Standard Configurations – End, Center, Corner, 3-Way, and 4-Way
- Aluminum Tubing With Full Length Channels for 1/4" (6 mm) Glass
- Top Cap and Mounting Base Included
- Use Monolithic Tempered Glass
CRL Design Series Partition Posts are very popular, available in the standard stock sizes and are ready for immediate delivery. These Posts have been used for years in banks, offices, and restaurants. A slim line profile and easy-to-install Mounting Base have made them a favorite in the industry. The glass is easily secured into the glazing channels using Cat. No. 33SC Clear Silicone. Also available in some finishes and sizes are Custom 135 Degree Posts. Each Post contains one attached Top Cap, one attached Mounting Base, and four Wood Screws for mounting.

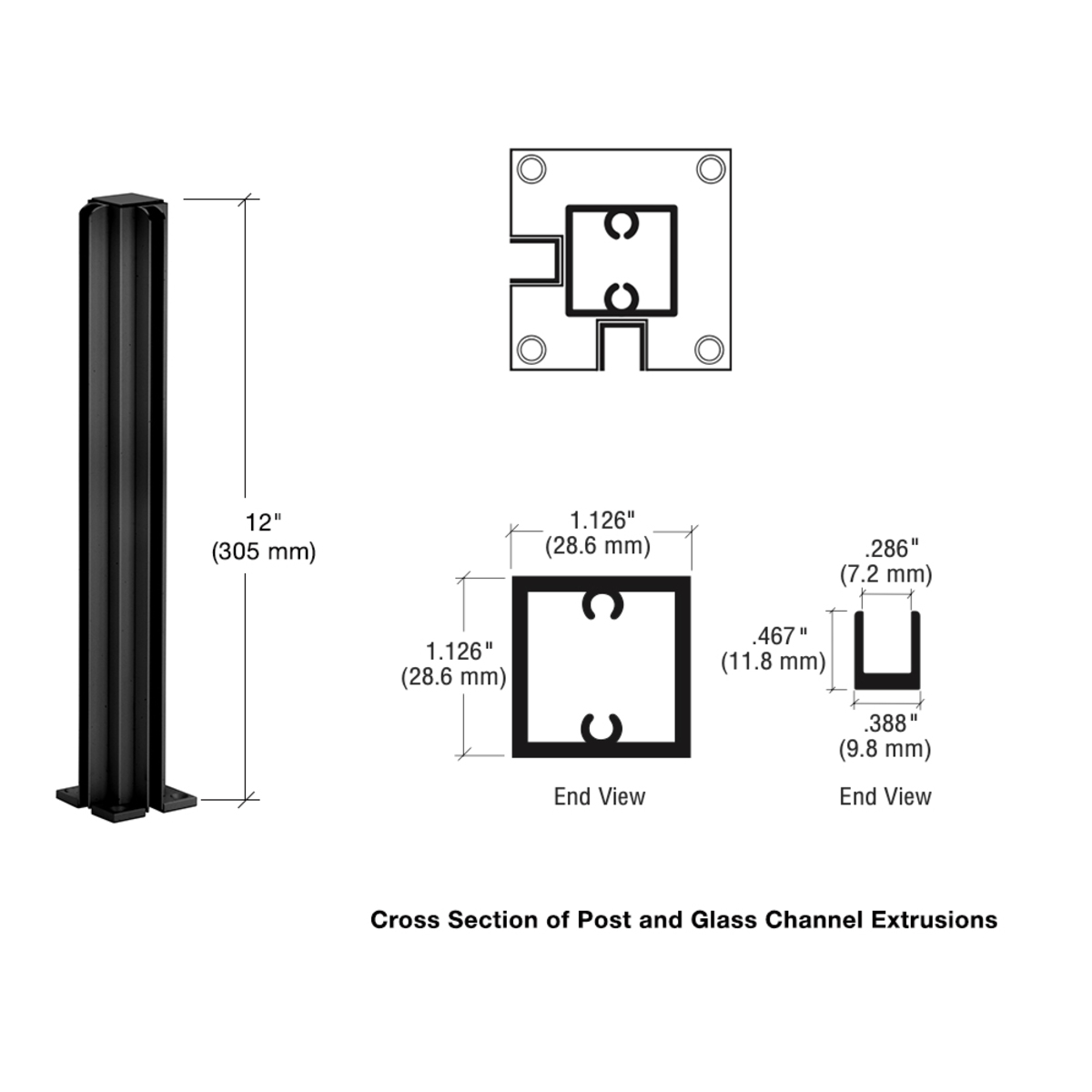

These fully assembled Design Series Posts measure 1-1/8" (28.6 mm) square. Post Mounting Base Plates measure 2" (51 mm) square. Glazing Channels measure full length and rise 15/32" (12 mm) from the post surface. Glazing Vinyl for 1/4" (6 mm) and 3/16" (5 mm) glass is supplied to fill glass channel.
You can also "Make Your Own" Design Series Partition Posts With CRL Components.
Instructions and requirements, " target="_blank">https://catalogs.crlaurence.com/CRL93G-Glass-and-Glazing/GG182/">Instructions and requirements,
parts page.
Product Warning:
The glass is easily secured into the glazing channels using Cat. No. 33SC Clear Silicone.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Base Diameter: 2 in. (50.8 mm)
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Configuration: 90 Degree Corner Post
Finish/ Color:: Matte Black (PU19115)
Glazing Attachment Type: U-Channel
Glazing Thickness: 1/4 in. (6 mm)
Height: 12 in. (304.8 mm)
Includes: Top Cap, Mounting Base, (4) Wood Screws For Mounting
Material: Aluminum
Series: Design
Shipping Limitations: None
Tube Size: 1-1/8 in. (28.6mm)
Tube Type: Square
Weight Capacity: 12 lbs. (5.4 kg)
