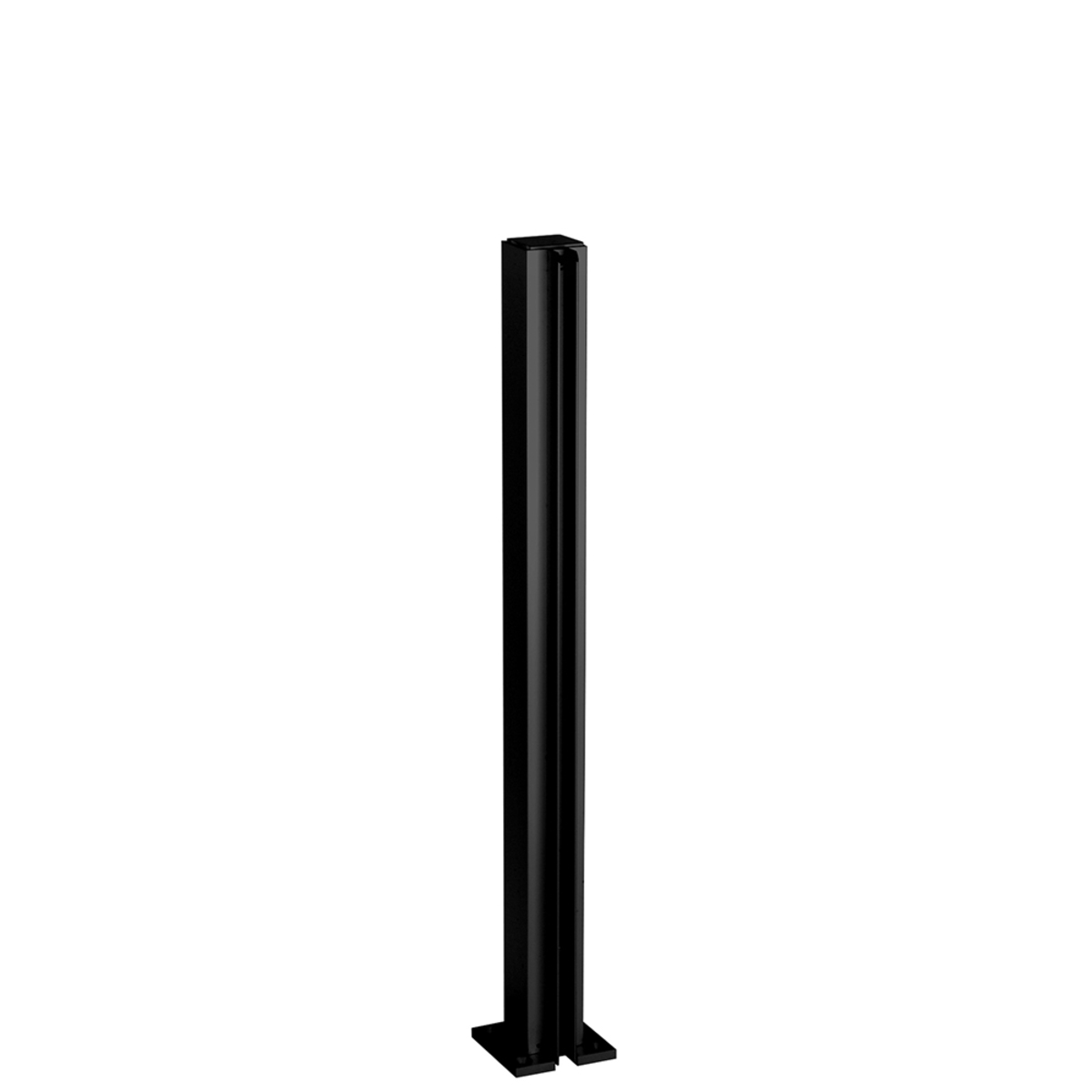

CRL D990MBL18E Matte Black 18" End Design Partition PostC.R. Laurence D990MBL18E Matte Black 18" End Design Series Partition Post offers a sleek and efficient solution for modern partitioning needs in various settings such as banks, offices, and restaurants. With a standard height of 18 inches (457 mm) and a slim profile, this post is designed to support monolithic tempered glass securely within its full-length glazing channels, accommodating 1/4" (6 mm) glass thickness. Manufactured from durable aluminum, the post features a square tubing design measuring 1-1/8" (28.6 mm) and comes with an included top cap and mounting base for easy installation. The mounting base plate has a size of 2" (51 mm) square, ensuring a stable foundation for your glass partitions. Additionally, the glazing channels rise 15/32" (12 mm) from the post surface, providing a reliable fit for your glass panels. Available in a sophisticated matte black finish, the D990MBL18E post is part of a versatile range that includes five standard configurations-end, center, corner, 3-way, and 4-way-allowing for tailored solutions to meet your design requirements. Whether you opt for standard sizes or explore custom options, this partition post is ready for immediate delivery, making it an ideal choice for any professional glazing project.
Matte Black 18" End Design Series Partition Post
- Stock Post Sizes, RED-E to Ship
- Standard Heights of 12", 18", and 24" (305, 457, and 610 mm) Available in Four Finishes
- Five Standard Configurations – End, Center, Corner, 3-Way, and 4-Way
- Aluminum Tubing With Full Length Channels for 1/4" (6 mm) Glass
- Top Cap and Mounting Base Included
- Use Monolithic Tempered Glass
CRL Design Series Partition Posts are very popular, available in the standard stock sizes and are ready for immediate delivery. These Posts have been used for years in banks, offices, and restaurants. A slim line profile and easy-to-install Mounting Base have made them a favorite in the industry. The glass is easily secured into the glazing channels using Cat. No. 33SC Clear Silicone. Also available in some finishes and sizes are Custom 135 Degree Posts. Each Post contains one attached Top Cap, one attached Mounting Base, and four Wood Screws for mounting.

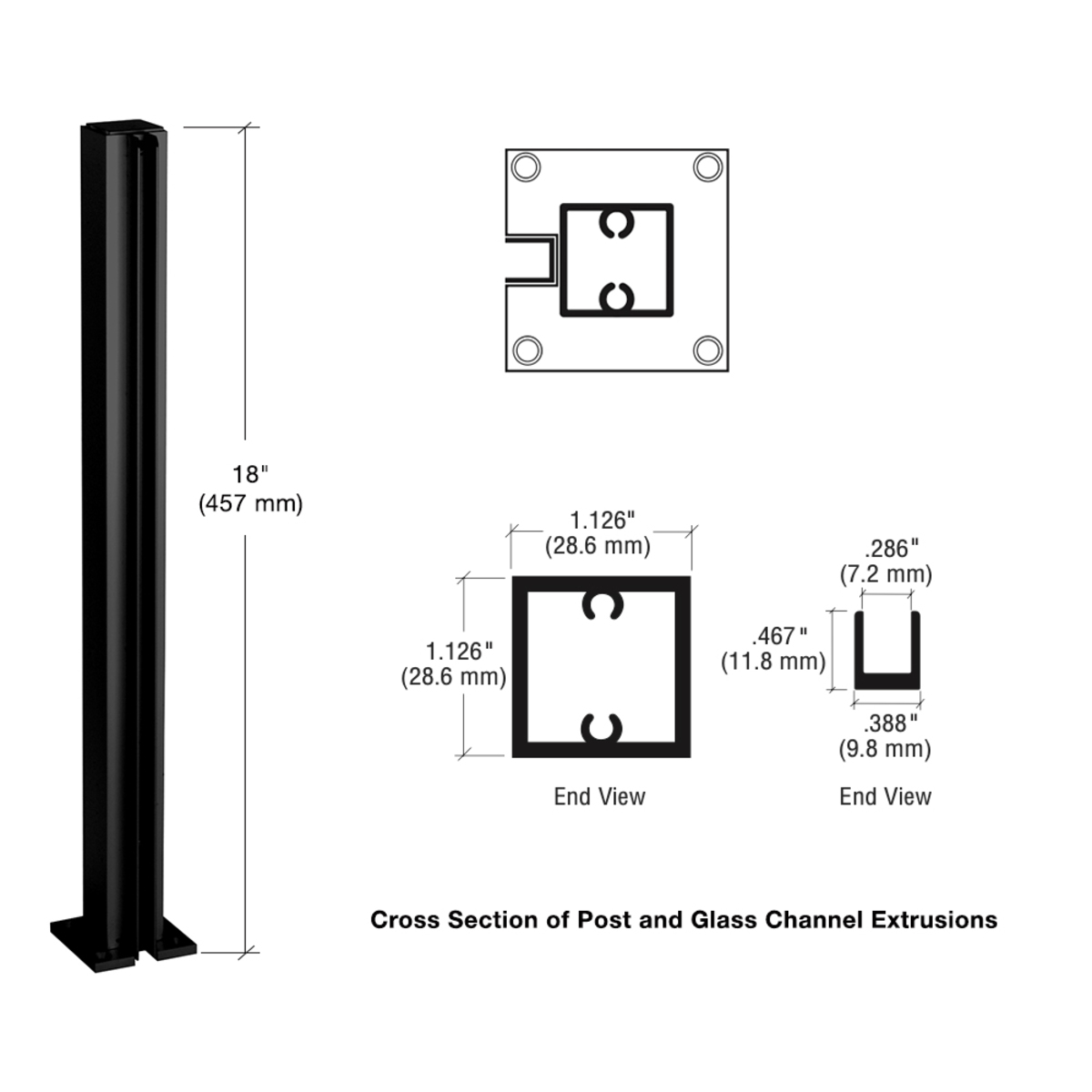

These fully assembled Design Series Posts measure 1-1/8" (28.6 mm) square. Post Mounting Base Plates measure 2" (51 mm) square. Glazing Channels measure full length and rise 15/32" (12 mm) from the post surface. Glazing Vinyl for 1/4" (6 mm) and 3/16" (5 mm) glass is supplied to fill glass channel.
You can also "Make Your Own" Design Series Partition Posts With CRL Components.
Instructions and requirements, " target="_blank">https://catalogs.crlaurence.com/CRL93G-Glass-and-Glazing/GG182/">Instructions and requirements,
parts page.
Product Warning:
The glass is easily secured into the glazing channels using Cat. No. 33SC Clear Silicone.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Base Diameter: 2 in. (50.8 mm)
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Configuration: Non-Handed End Post
Finish/ Color:: Matte Black (PU19115)
Glazing Thickness: 1/4 in. (6 mm)
Height: 18 in. (457.2 mm)
Includes: Top Cap, Mounting Base, (4) Wood Screws For Mounting
Material: Aluminum
Series: Design
Shipping Limitations: None
Tube Size: 1-1/8 in. (28.6mm)
Tube Type: Square
Weight Capacity: 12 lbs. (5.4 kg)
