CRL D990MBL30E Matte Black 30" End Design Partition PostC.R. Laurence D990MBL30E Matte Black 30" End Design Series Partition Post offers a sleek and modern solution for dividing spaces in various commercial settings. Designed for versatility, this post is available in standard heights of 12", 18", and 24", making it suitable for a range of applications, from offices to restaurants. With a slimline profile, the post measures 1-1/8" (28.6 mm) square and is complemented by a sturdy 2" (51 mm) square mounting base. Constructed from durable aluminum, the post features full-length glazing channels that accommodate 1/4" (6 mm) tempered glass, ensuring stability and a clean aesthetic. Each post comes fully assembled and includes a top cap, mounting base, and four wood screws for easy installation. The glazing is simply secured using Cat. No. 33SC Clear Silicone, streamlining the setup process. Available in a striking matte black finish, the D990MBL30E seamlessly fits into contemporary designs while providing robust support. For added flexibility, CRL also allows customization of Design Series Partition Posts with their components. This makes the D990MBL30E not just a practical choice, but also an elegant solution for modern architectural needs.

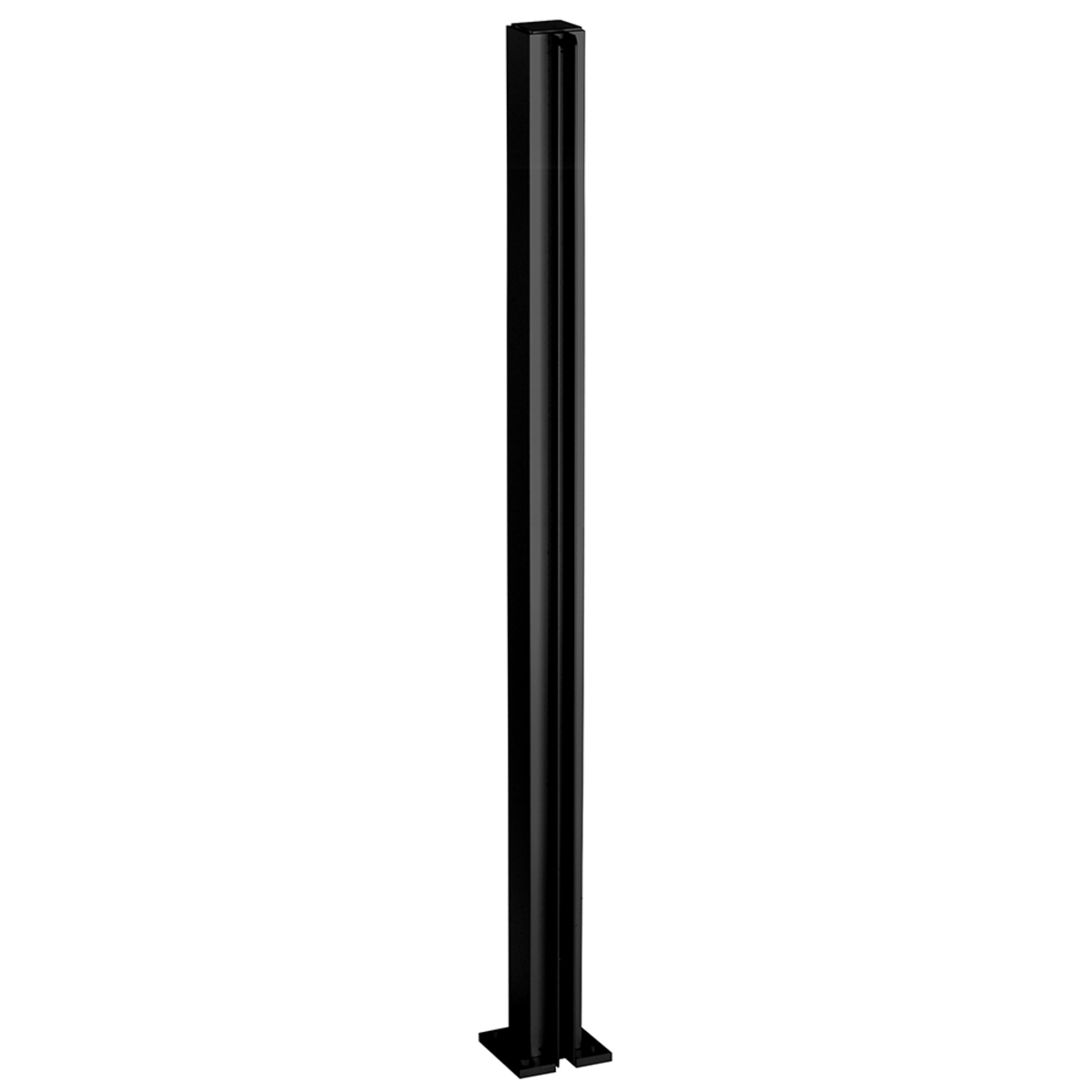

Matte Black 30" End Design Series Partition Post
- Stock Post Sizes, RED-E to Ship
- Standard Heights of 12", 18", and 24" (305, 457, and 610 mm) Available in Four Finishes
- Five Standard Configurations – End, Center, Corner, 3-Way, and 4-Way
- Aluminum Tubing With Full Length Channels for 1/4" (6 mm) Glass
- Top Cap and Mounting Base Included
- Use Monolithic Tempered Glass
CRL Design Series Partition Posts are very popular, available in the standard stock sizes and are ready for immediate delivery. These Posts have been used for years in banks, offices, and restaurants. A slim line profile and easy-to-install Mounting Base have made them a favorite in the industry. The glass is easily secured into the glazing channels using Cat. No. 33SC Clear Silicone. Also available in some finishes and sizes are Custom 135 Degree Posts. Each Post contains one attached Top Cap, one attached Mounting Base, and four Wood Screws for mounting.

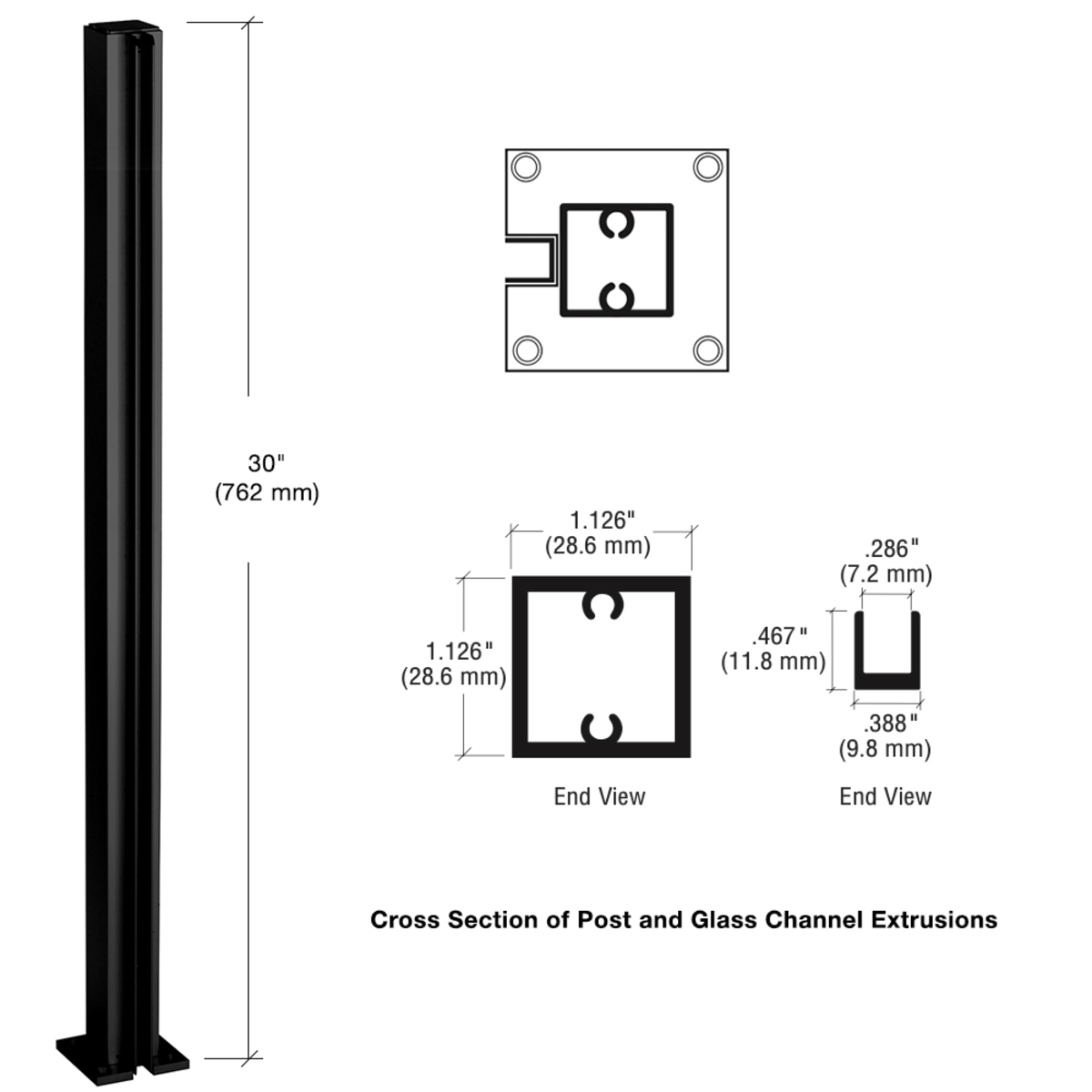

These fully assembled Design Series Posts measure 1-1/8" (28.6 mm) square. Post Mounting Base Plates measure 2" (51 mm) square. Glazing Channels measure full length and rise 15/32" (12 mm) from the post surface. Glazing Vinyl for 1/4" (6 mm) and 3/16" (5 mm) glass is supplied to fill glass channel.
You can also "Make Your Own" Design Series Partition Posts With CRL Components.
Instructions and requirements, " target="_blank">https://catalogs.crlaurence.com/CRL93G-Glass-and-Glazing/GG182/">Instructions and requirements,
parts page.
Product Warning:
The glass is easily secured into the glazing channels using Cat. No. 33SC Clear Silicone.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Base Diameter: 2 in. (50.8 mm)
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Configuration: Non-Handed End Post
Finish/ Color:: Matte Black (PU19115)
Glazing Thickness: 1/4 in. (6 mm)
Height: 30 in. (762 mm)
Includes: Top Cap, Mounting Base, (4) Wood Screws For Mounting
Material: Aluminum
Series: Design
Shipping Limitations: None
Tube Size: 1-1/8 in. (28.6 mm)
Tube Type: Square
Weight Capacity: 12 lbs. (5.4 kg)
