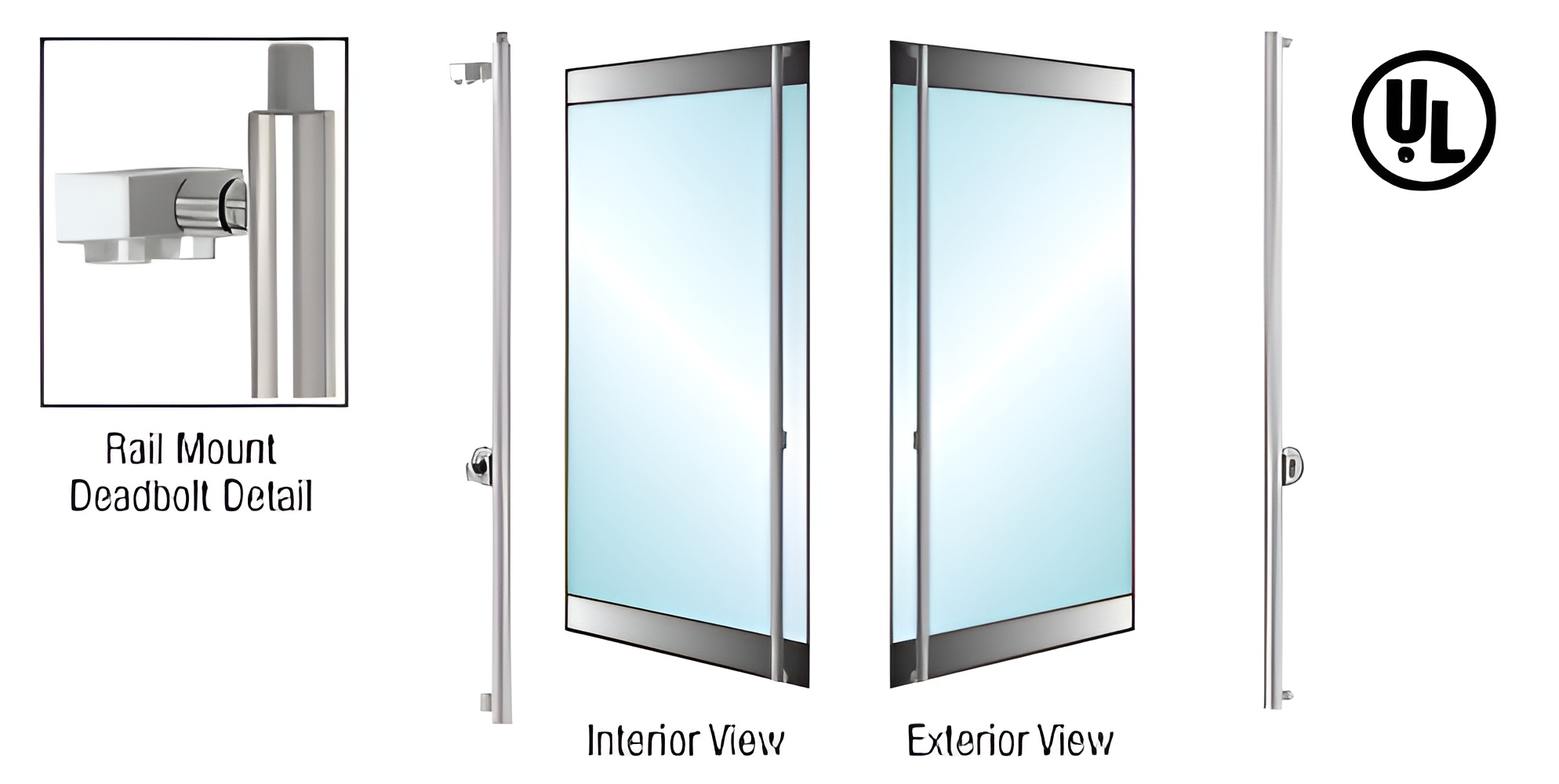

CRL DB130F3R1PS Blumcraft Polished Stainless Right-Hand Reverse Rail Deadbolt HandleC.R. Laurence DB130F3R1PS Blumcraft Polished Stainless Right Hand Reverse Rail Mount Cylinder/Thumbturn 'F' Top Secured Deadbolt Exterior Handle offers a seamless blend of security and style for all-glass doors. This UL Classified handle is designed to provide easy secure access, featuring an ANSI/BHMA A156.16 Grade 1 certification, ensuring its durability and reliability in high-traffic areas. Constructed from premium stainless steel (Alloy 304), the polished finish enhances aesthetic appeal while providing resistance to corrosion. This deadbolt handle accommodates 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors, making it versatile for various applications. The concealed locking mechanism within the vertical tubing allows for a clean look without compromising security, and the option for an electric strike enhances its functionality for controlled entry systems. Custom sizes and finishes are available upon request, enabling tailored solutions for specific project needs. The DB130 series can also be paired with a wide selection of exterior fixed pull handles, allowing for cohesive design across installations. With shipping limitations via common carrier only, expect custom orders to ship within one to two weeks. Elevate your architectural projects with the sophisticated functionality of the C.R. Laurence DB130F3R1PS handle.
Blumcraft Polished Stainless Right Hand Reverse Rail Mount Cylinder/Thumbturn 'F' Top Secured Deadbolt Exterior Handle
- UL Classified
- Easy Secure Access
- ANSI/BHMA Certified
- DB130 Series Can Be Used With an Electric Strike
- Wide Selection of Exterior Fixed Handles for 1/2" (12 mm) or 3/4" (19 mm) Tempered Glass Doors
- Custom Sizes Ship Within One to Two Weeks
- Available with a Wide Selection of Exterior Fixed Pull Handles on Special Order
- Certification: ANSI/BHMA A156.16 Grade 1
- Custom Finishes Available By Special Order
- Custom Sizes Ship Within One to Two Weeks
CRL-Blumcraft® manufactures a complete line of Access Control Handles for your 'all-glass' door needs. We have Panic Devices, Deadbolt Handles, and Electronic Egress Control Handles in a wide variety of configurations. We can also supply you with Dummy Handles to match these devices, allowing you to maintain the same appearance throughout the project, but without the added costs.
The locking mechanism is concealed within the vertical tubing of our Deadbolt Handles, providing easy access through a variety of keying options. An optional Top Latch Roller Bolt allows the use of Electronic Strikes for controlled entry systems.
For additional information, contact CRL Technical Sales from the home page by clicking on Contact Us, and then click on Technical Sales for Commercial Products. The latest catalog pages with complete details on our CRL-Blumcraft® Access Handle product line can be found
here." target="_blank">https://catalogs.crlaurence.com/AH18-Glass-Entrance-Systems/254/">here.
Product Warning:
Secures at Top of Door Only.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Ship via: No UPS - Common Carrier Only
Application: DRS Rail Mount
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 1-1/4 in. (32 mm)
Finish/ Color:: Polished Stainless Steel
Glazing Thickness: 1/2 in. (13 mm)
Handing: Right Hand Reverse
Keying: Cylinder / Thumb Turn
Locking: Top
Material: Stainless Steel (Alloy 304)
Shipping Limitations: No UPS - Common Carrier Only
Top Latch Type: Deadbolt
