CRL DB130F4R1BS Blumcraft Brushed Stainless Left Hand Reverse Rail Mount Deadbolt HandleC.R. Laurence DB130F4R1BS Blumcraft Brushed Stainless Left Hand Reverse Rail Mount Cylinder/Thumbturn 'F' Top Secured Deadbolt Exterior Handle offers a sophisticated solution for your all-glass door needs. This UL Classified handle combines security and style, featuring a concealed locking mechanism within its sleek vertical tubing. The deadbolt handle is ANSI/BHMA certified, ensuring it meets high-performance standards. Designed for easy secure access, the DB130 series can be paired with an electric strike, providing enhanced control for entry systems. This handle accommodates 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors, making it versatile for various applications. Available in a range of finishes-polished and brushed stainless, satin and polished brass, and oil-rubbed bronze-custom finishes can also be ordered for a personalized touch. The deadbolt's top latch roller bolt option increases functionality, allowing for seamless integration into electronic strike systems. With a diameter of 1-1/4 in. (32 mm) and made from durable stainless steel (Alloy 304), this handle is designed to withstand the elements while maintaining its aesthetic appeal. For additional customization, CRL offers quick shipping for custom sizes, ensuring you receive exactly what you need for your project.

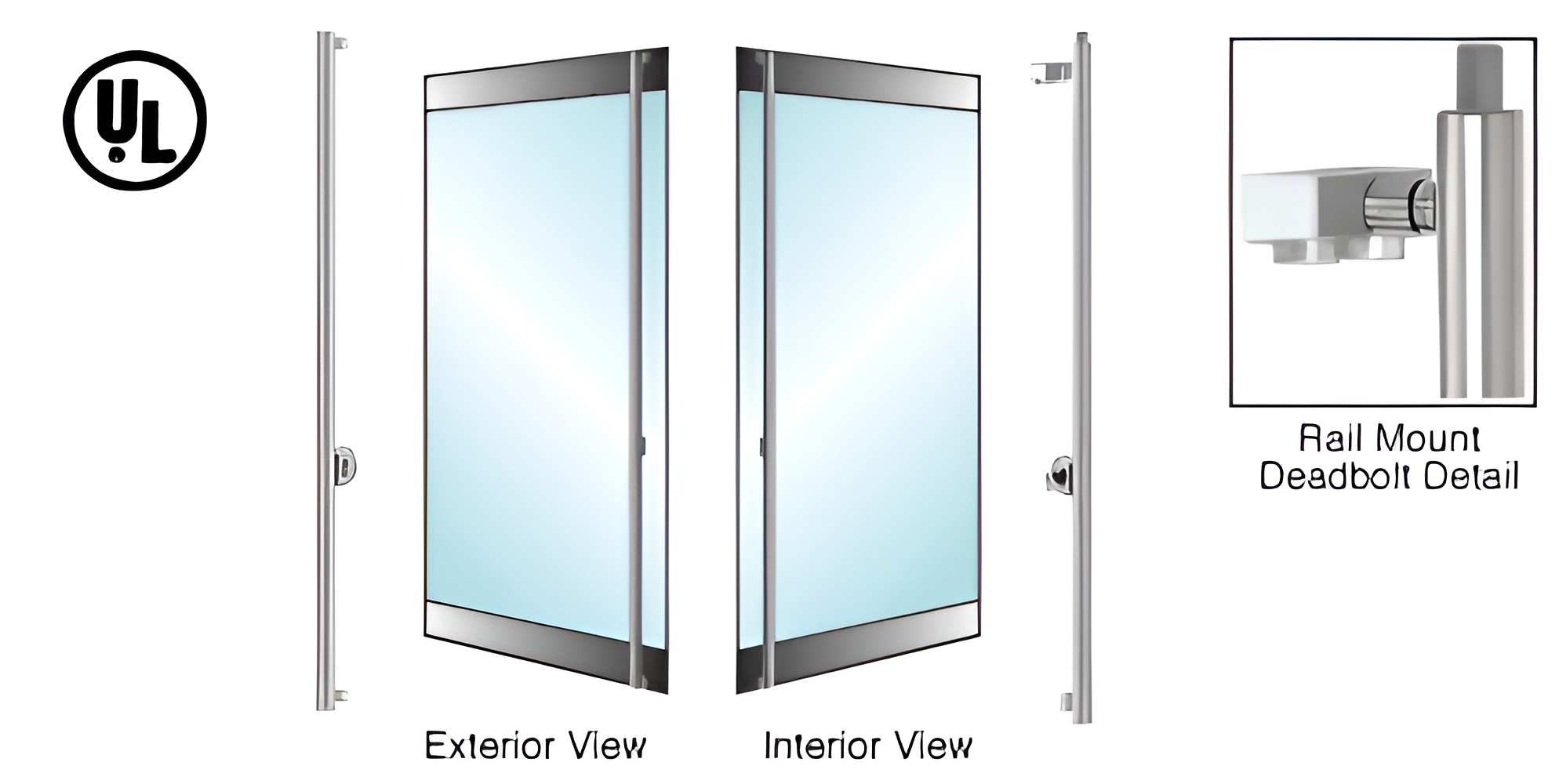

Blumcraft Brushed Stainless Left Hand Reverse Rail Mount Cylinder/Thumbturn 'F' Top Secured Deadbolt Exterior Handle
- UL Classified
- Easy Secure Access
- ANSI/BHMA Certified
- DB130 Series Can Be Used With an Electric Strike
- Wide Selection of Exterior Fixed Handles for 1/2" (12 mm) or 3/4" (19 mm) Tempered Glass Doors
- Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
- Custom Finishes Available By Special Order
- Custom Sizes Ship Within One to Two Weeks
CRL-Blumcraft® manufactures a complete line of Access Control Handles for your 'all-glass' door needs. We have Panic Devices, Deadbolt Handles, and Electronic Egress Control Handles in a wide variety of configurations. We can also supply you with Dummy Handles to match these devices, allowing you to maintain the same appearance throughout the project, but without the added costs.
The locking mechanism is concealed within the vertical tubing of our Deadbolt Handles, providing easy access through a variety of keying options. An optional Top Latch Roller Bolt allows the use of Electronic Strikes for controlled entry systems.
For additional information, contact CRL Technical Sales from the home page by clicking on Contact Us, and then click on Technical Sales for Commercial Products. The latest catalog pages with complete details on our CRL-Blumcraft® Access Handle product line can be found
here." target="_blank">https://catalogs.crlaurence.com/AH18-Glass-Entrance-Systems/254/">here.
Product Warning:
Secures at Top of Door Only.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Ship via: No UPS - Common Carrier Only
Application: DRS Rail Mount
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 1-1/4 in. (32 mm)
Finish/ Color:: Brushed Stainless Steel
Glazing Thickness: 1/2 in. (13 mm)
Handing: Left Hand Reverse
Keying: Cylinder / Thumb Turn
Locking: Top
Material: Stainless Steel (Alloy 304)
Shipping Limitations: No UPS - Common Carrier Only
Top Latch Type: Deadbolt
