CRL DB170JS3G1BS Blumcraft Brushed Stainless Right Hand Reverse Glass Mount Deadbolt HandleC.R. Laurence DB170JS3G1BS Blumcraft Brushed Stainless Right Hand Reverse Glass Mount Cylinder/Thumbturn "JS" Exterior Top Securing Deadbolt Handle is an ideal solution for all-glass door applications, combining functionality with sleek design. This deadbolt handle is UL Classified and ANSI/BHMA Certified, ensuring reliable security and ease of access. The concealed locking mechanism within the vertical tubing allows for a clean aesthetic while offering various keying options. Designed to accommodate 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors, this handle is compatible with an electric strike, enhancing its versatility. The DB170 Series also features an optional Top Latch Roller Bolt for integration into controlled entry systems. Available in a range of finishes including polished and brushed stainless, satin and polished brass, and oil-rubbed bronze, custom finishes and sizes can be ordered for specific project needs. With a diameter of 1-1/4 in. (32 mm) and constructed from durable Alloy 304 stainless steel, this handle not only provides security but also ensures longevity. Periodic maintenance is recommended to preserve its factory finish. Choose the C.R. Laurence DB170JS3G1BS for a sophisticated and secure entry solution that meets both aesthetic and functional demands.

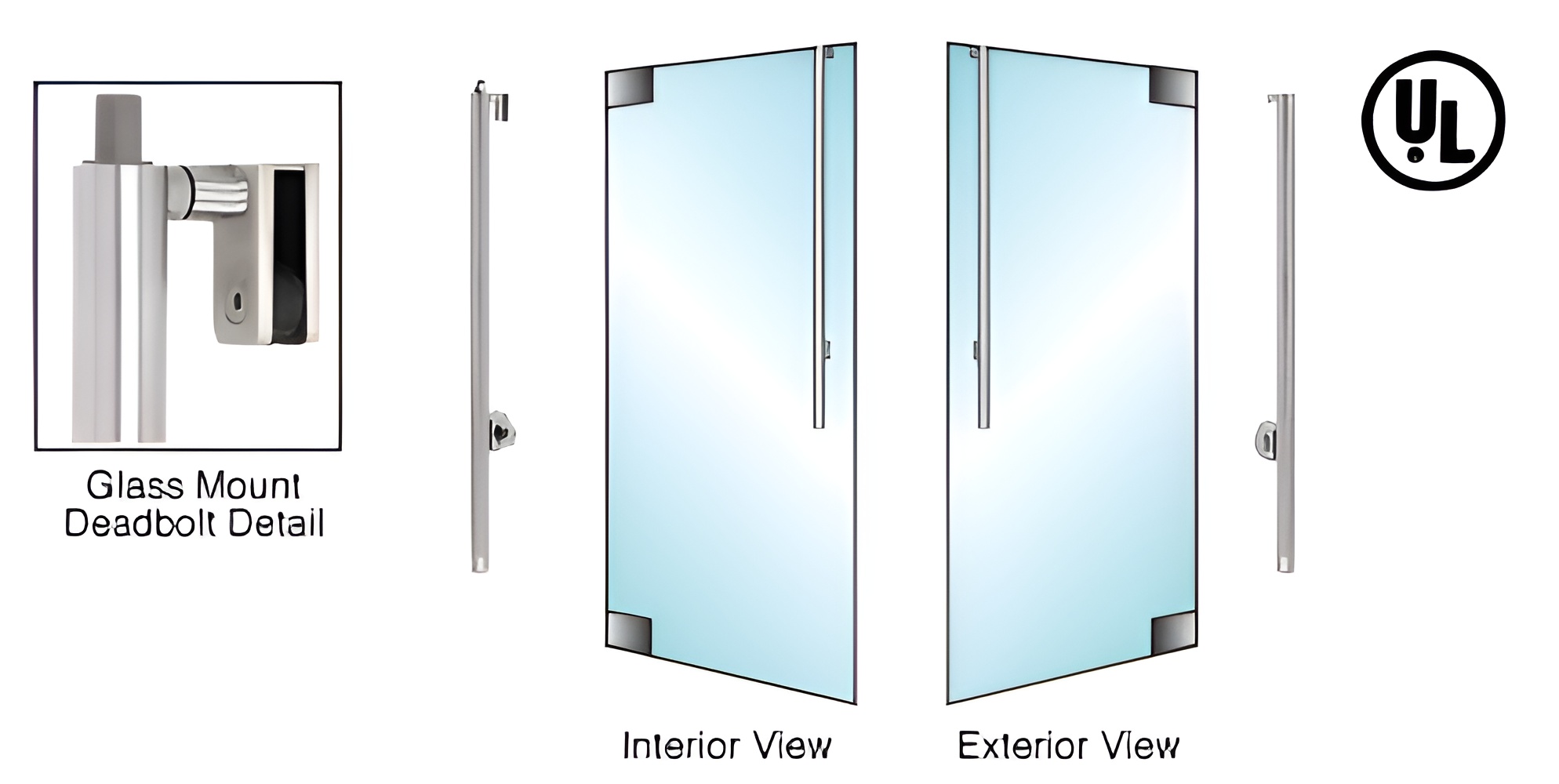

Blumcraft Brushed Stainless Right Hand Reverse Glass Mount Cylinder/Thumbturn "JS" Exterior Top Securing Deadbolt Handle
- UL Classified
- Easy Secure Access
- ANSI/BHMA Certified
- DB170 Series Can Be Used with an Electric Strike
- Wide Selection of Exterior Fixed Handles for 1/2" (12 mm) or 3/4" (19 mm) Tempered Glass Doors
- Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
- Custom Finishes Available By Special Order
- Custom Sizes Ship within One to Two Weeks
CRL-Blumcraft® manufactures a complete line of Access Control Handles for your 'all-glass' door needs. We have Panic Devices, Deadbolt Handles, and Electronic Egress Control Handles in a wide variety of configurations. We can also supply you with Dummy Handles to match these devices, allowing you to maintain the same appearance throughout the project, but without the added costs.
The locking mechanism is concealed within the vertical tubing of our Deadbolt Handles, providing easy access through a variety of keying options. An optional Top Latch Roller Bolt allows the use of Electronic Strikes for controlled entry systems.
For additional information, contact CRL Technical Sales from the home page by clicking on Contact Us, and then click on Technical Sales for Commercial Products. The latest catalog pages with complete details on our CRL-Blumcraft® Access Handle product line can be found
here." target="_blank">https://catalogs.crlaurence.com/AH18-Glass-Entrance-Systems/254/">here.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Ship via: No UPS - Common Carrier Only
Application: All-Glass Door Mount
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 1-1/4 in. (32 mm)
Finish/ Color:: Brushed Stainless Steel
Glazing Thickness: 1/2 in. (13 mm)
Handing: Right Hand Reverse
Keying: Cylinder / Thumb Turn
Locking: Top
Material: Stainless Steel (Alloy 304)
Shipping Limitations: No UPS - Common Carrier Only
Top Latch Type: Deadbolt
