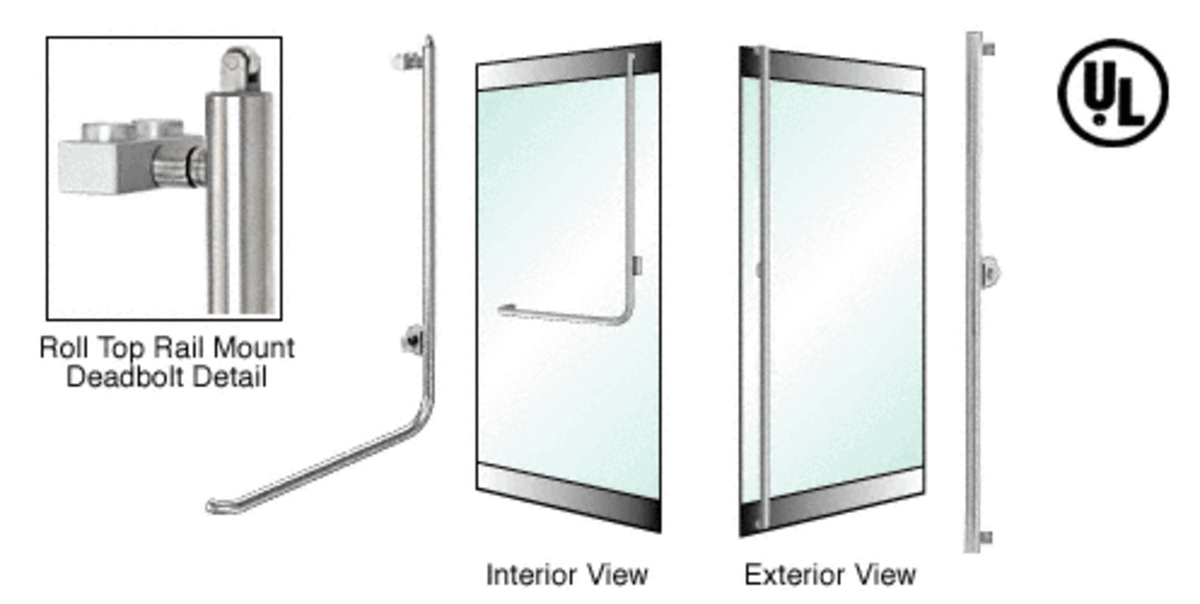

CRL DBR100F3R1BS Blumcraft Brushed Stainless Right Hand Reverse Roll Top Rail Deadbolt HandleCRL DBR100F3R1BS Blumcraft Brushed Stainless Right Hand Reverse Roll Top Rail Mount Cylinder/Thumbturn "F" Exterior Top Securing Deadbolt Handle combines robust security with elegant design. This UL Classified handle is crafted from durable Stainless Steel (Alloy 304) and features a brushed finish, offering both aesthetic appeal and resistance to corrosion. It is designed for use with 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors, ensuring versatile compatibility for various architectural applications. Certified to ANSI/BHMA standards, this deadbolt handle provides easy and secure access, with a concealed locking mechanism that enhances safety without compromising style. The top latch roller bolt option is available for use with Electronic Strikes, making it an ideal choice for controlled entry systems. Offered in a range of finishes including polished and brushed stainless, satin and polished brass, and oil rubbed bronze, customization options are also available by special order. Additionally, custom sizes can ship within one to two weeks, allowing for tailored solutions to meet specific project needs. For comprehensive details on the CRL-Blumcraft® Access Handle line, visit the C.R. Laurence catalog.
Blumcraft Brushed Stainless Right Hand Reverse Roll Top Rail Mount Cylinder/Thumbturn "F" Exterior Top Securing Deadbolt Handle
- UL Classified
- Easy Secure Access
- ANSI/BHMA Certified
- Wide Selection of Exterior Fixed Handles for 1/2" (12 mm) or 3/4" (19 mm) Tempered Glass Doors
- Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
- Custom Finishes Available By Special Order
- Custom Sizes Ship Within One to Two Weeks
CRL-Blumcraft® manufactures a complete line of Access Control Handles for your 'all-glass' door needs. We have Panic Devices, Deadbolt Handles, and Electronic Egress Control Handles in a wide variety of configurations. We can also supply you with Dummy Handles to match these devices, allowing you to maintain the same appearance throughout the project, but without the added costs.
The locking mechanism is concealed within the vertical tubing of our Deadbolt Handles, providing easy access through a variety of keying options. An optional Top Latch Roller Bolt allows the use of Electronic Strikes for controlled entry systems.
For additional information, contact CRL Technical Sales from the home page by clicking on Contact Us, and then click on Technical Sales for Commercial Products. The latest catalog pages with complete details on our CRL-Blumcraft® Access Handle product line can be found
here." target="_blank">https://catalogs.crlaurence.com/AH18-Glass-Entrance-Systems/254/">here.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Ship via: No UPS - Common Carrier Only
Application: DRS Rail Mount
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 1-1/4 in. (32 mm)
Finish/ Color:: Brushed Stainless Steel
Glazing Thickness: 1/2 in. (13 mm)
Handing: Right Hand Reverse
Keying: Cylinder / Thumb Turn
Latching: Top
Material: Stainless Steel (Alloy 304)
Shipping Limitations: No UPS - Common Carrier Only
Top Latch Type: Deadbolt Roller
