CRL DBR130F3AKBS Blumcraft Brushed Stainless Right Hand Reverse Roll Top Glass Mount DeadboltC.R. Laurence DBR130F3AKBS Blumcraft Brushed Stainless Right Hand Reverse Roll Top Glass Mount Cylinder/Cylinder "F" Exterior Top Securing Deadbolt Handle offers a secure and stylish solution for your all-glass door installations. This UL Classified handle is designed for easy access, featuring an ANSI/BHMA Certified locking mechanism that is concealed within the vertical tubing, ensuring both functionality and aesthetics. Compatible with 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors, the DBR130 series can also be integrated with an electric strike for enhanced access control. Its brushed stainless steel finish not only provides a contemporary look but also resists corrosion, making it suitable for various environments. Custom finishes and sizes are available, shipping within one to two weeks to meet your specific project needs. Key features include a top latch roller bolt for added security and a diameter of 1-1/4 in. (32 mm) suitable for doors ranging from 1-3/4 in. to 2-1/2 in. (44 mm to 64 mm) thick. With options for polished brass and oil rubbed bronze finishes, as well as dummy handles for uniformity, the DBR130F3AKBS is an ideal choice for both residential and commercial applications, ensuring a seamless blend of security and design.

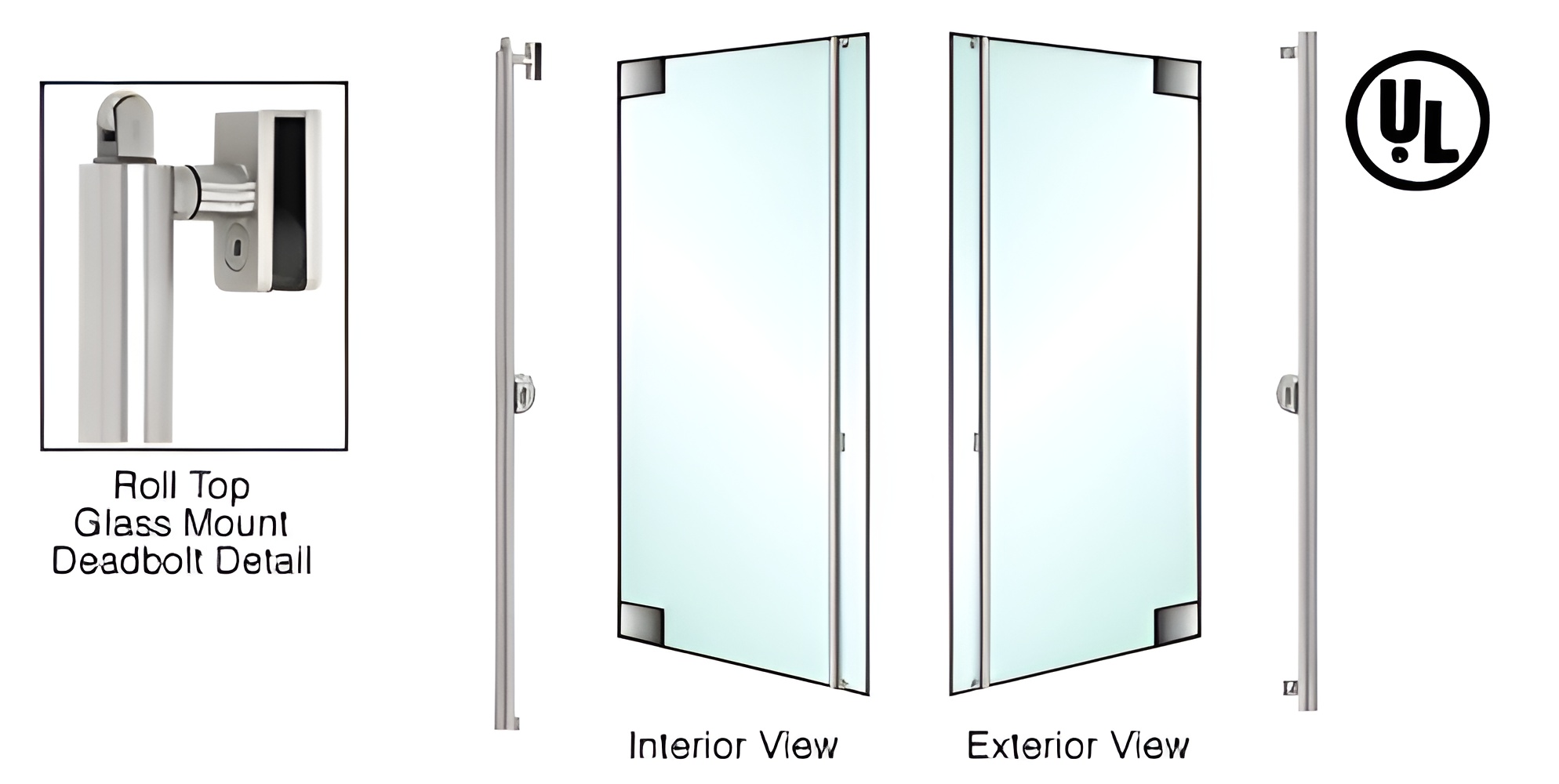

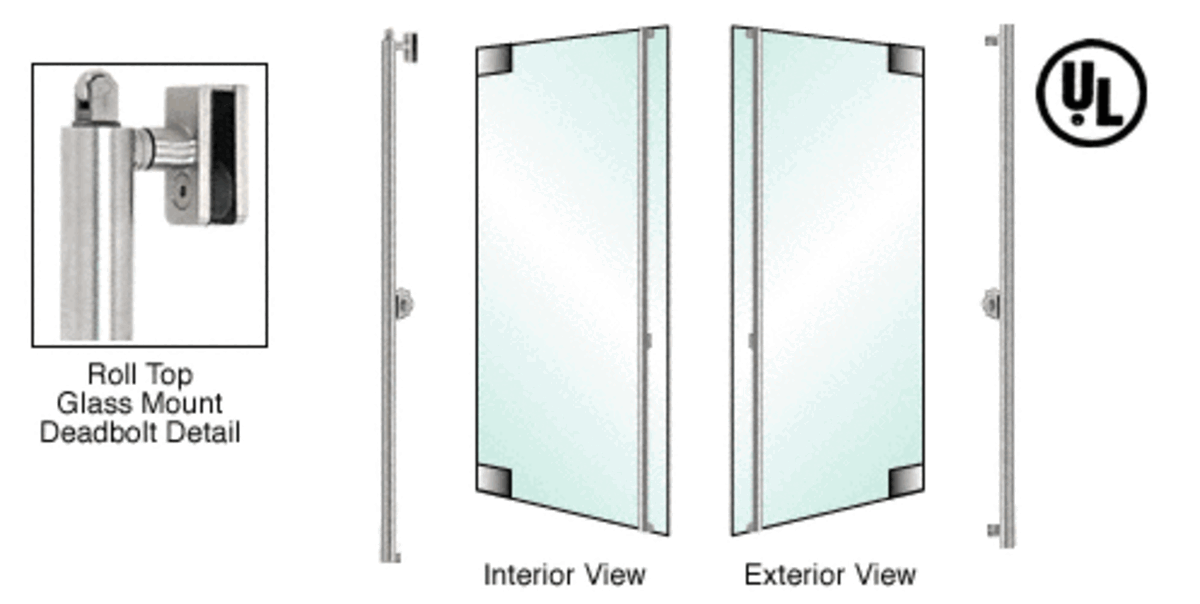

Blumcraft Brushed Stainless Right Hand Reverse Roll Top Glass Mount Cylinder/Cylinder "F" Exterior Top Securing Deadbolt Handle
- UL Classified
- Easy Secure Access
- ANSI/BHMA Certified
- DBR130 Series Can Be Used with an Electric Strike
- Wide Selection of Exterior Fixed Handles for 1/2" (12 mm) or 3/4" (19 mm) Tempered Glass Doors
- Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
- Custom Finishes Available by Special Order
- Custom Sizes Ship within One to Two Weeks
CRL-Blumcraft® manufactures a complete line of Access Control Handles for your 'all-glass' door needs. We have Panic Devices, Deadbolt Handles, and Electronic Egress Control Handles in a wide variety of configurations. We can also supply you with Dummy Handles to match these devices, allowing you to maintain the same appearance throughout the project, but without the added costs.
The locking mechanism is concealed within the vertical tubing of our Deadbolt Handles, providing easy access through a variety of keying options. An optional Top Latch Roller Bolt allows the use of Electronic Strikes for controlled entry systems.
For additional information, contact CRL Technical Sales from the home page by clicking on Contact Us, and then click on Technical Sales for Commercial Products. The latest catalog pages with complete details on our CRL-Blumcraft® Access Handle product line can be found
here." target="_blank">https://catalogs.crlaurence.com/AH18-Glass-Entrance-Systems/254/">here.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Aluminum / Wood Door Mount
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 1-1/4 in. (32 mm)
Door Thickness: 1-3/4 in. To 2-1/2 in. (44 mm To 64 mm)
Finish/ Color:: Brushed Stainless Steel
Handing: Right Hand Reverse
Keying: Cylinder / Cylinder
Latching: Top
Material: Stainless Steel (Alloy 304)
Shipping Limitations: No UPS - Common Carrier Only
Top Latch Type: Deadbolt Roller
