CRL DBR130F3L1BS Blumcraft Brushed Stainless Right Hand Reverse Roll Top Deadbolt HandleC.R. Laurence DBR130F3L1BS Blumcraft Brushed Stainless Right Hand Reverse Roll Top Low Profile Mount Cylinder/Thumbturn "F" Exterior Top Securing Deadbolt Handle combines security and style for all-glass doors. This UL Classified deadbolt handle is ANSI/BHMA Certified, ensuring it meets the highest standards of safety and durability. The innovative design features a concealed locking mechanism within the vertical tubing, providing seamless access through various keying options. Engineered for versatility, the DBR130 Series is compatible with electric strikes, making it ideal for controlled entry systems. It accommodates both 1/2" (12 mm) and 3/4" (19 mm) tempered glass doors, with a top latch roller bolt option for enhanced functionality. The handle's brushed stainless steel finish not only exudes a modern aesthetic but also offers a range of custom finishes, including polished stainless, satin brass, and oil-rubbed bronze, available by special order. This handle is designed for right-hand reverse applications and boasts a diameter of 1-1/4 in. (32 mm), providing a robust yet sleek appearance. With custom sizes shipping within one to two weeks, the C.R. Laurence DBR130F3L1BS is your ideal solution for sophisticated access control in commercial and hospitality settings.
Blumcraft Brushed Stainless Right Hand Reverse Roll Top Low Profile Mount Cylinder/Thumbturn "F" Exterior Top Securing Deadbolt Handle
- UL Classified
- Easy Secure Access
- ANSI/BHMA Certified
- DBR130 Series Can Be Used With an Electric Strike
- Wide Selection of Exterior Fixed Handles for 1/2" (12 mm) or 3/4" (19 mm) Tempered Glass Doors
- Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
- Custom Finishes Available By Special Order
- Custom Sizes Ship Within One to Two Weeks
CRL-Blumcraft® manufactures a complete line of Access Control Handles for your 'all-glass' door needs. We have Panic Devices, Deadbolt Handles, and Electronic Egress Control Handles in a wide variety of configurations. We can also supply you with Dummy Handles to match these devices, allowing you to maintain the same appearance throughout the project, but without the added costs.

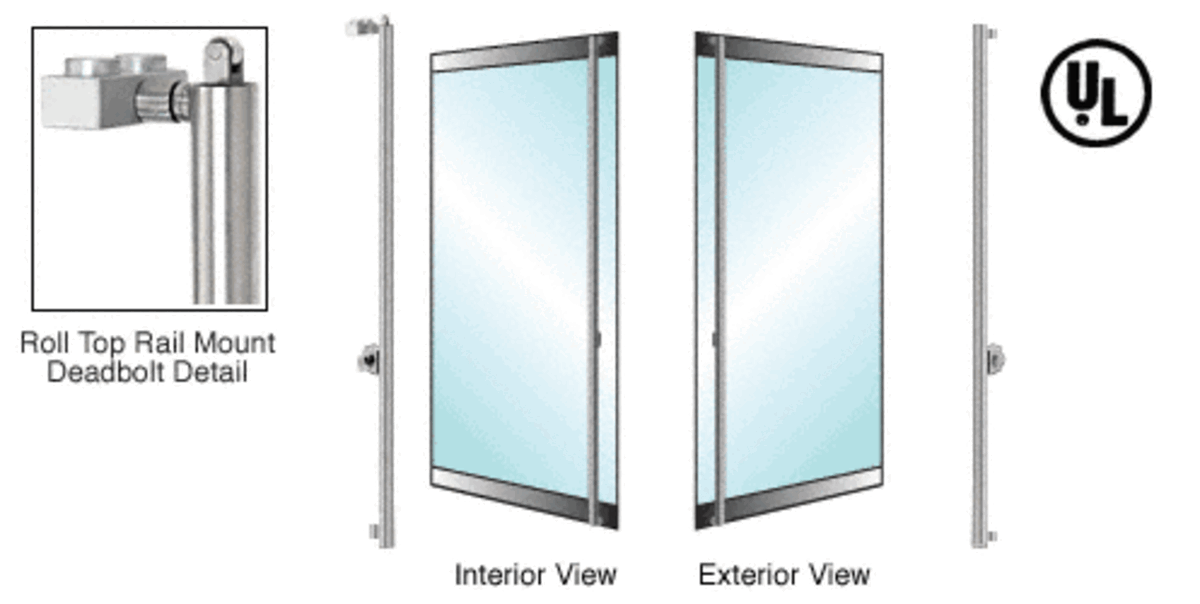

The locking mechanism is concealed within the vertical tubing of our Deadbolt Handles, providing easy access through a variety of keying options. An optional Top Latch Roller Bolt allows the use of Electronic Strikes for controlled entry systems.
For additional information, contact CRL Technical Sales from the home page by clicking on Contact Us, and then click on Technical Sales for Commercial Products. The latest catalog pages with complete details on our CRL-Blumcraft® Access Handle product line can be found
here." target="_blank">https://catalogs.crlaurence.com/AH18-Glass-Entrance-Systems/254/">here.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Low Profile Rail Mount
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 1-1/4 in. (32 mm)
Finish/ Color:: Brushed Stainless Steel
Glazing Thickness: 1/2 in. (13 mm)
Handing: Right Hand Reverse
Keying: Cylinder / Thumb Turn
Latching: Top
Material: Stainless Steel (Alloy 304)
Shipping Limitations: No UPS - Common Carrier Only
Top Latch Type: Deadbolt Roller
