CRL DBR130F4R1PT Blumcraft Left Hand Reverse Roll Top Rail Deadbolt Handle FC.R. Laurence DBR130F4R1PT Blumcraft Painted Left Hand Reverse Roll Top Rail Mount Cylinder/Thumbturn "F" Exterior Top Securing Deadbolt Handle combines security and stylish design for all-glass door applications. This UL Classified access control handle is ANSI/BHMA certified, ensuring it meets rigorous safety standards. The locking mechanism is discreetly housed within the vertical tubing, offering a sleek aesthetic while providing easy access through various keying options. Designed for use with 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors, this handle is compatible with an electric strike, making it a versatile choice for modern entry systems. Available in a range of finishes including Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze, along with custom finishes upon request, the DBR130 can seamlessly integrate into any architectural style. The handle also features a top latch roller bolt, enhancing its functionality for controlled entry systems. Custom sizes can ship within one to two weeks, ensuring a tailored fit for your project needs. With its combination of form, function, and customizable options, the DBR130F4R1PT is an ideal choice for building professionals and discerning homeowners alike.

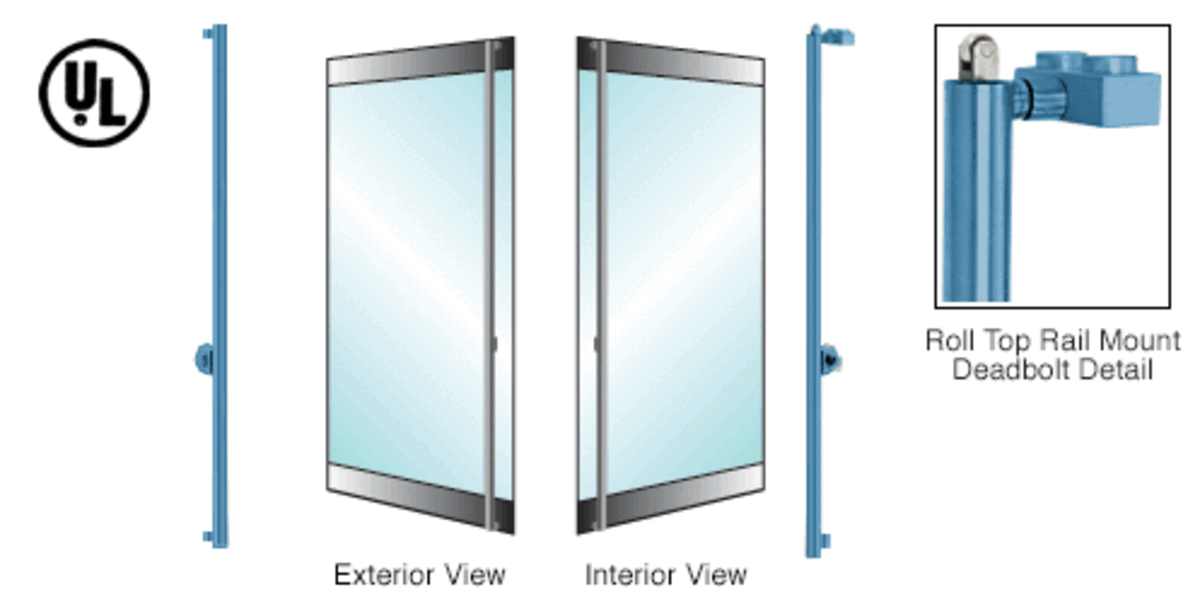

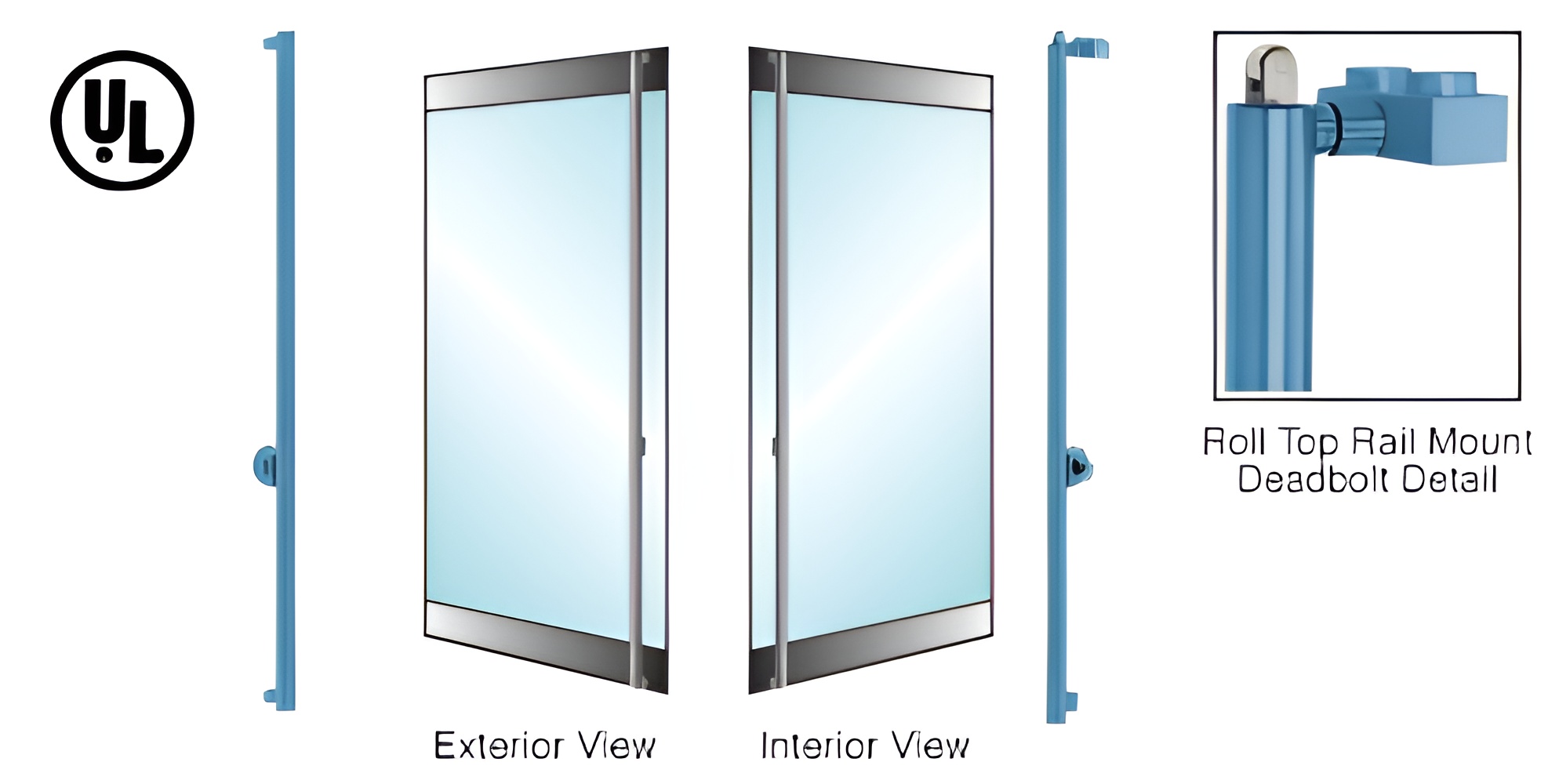

Blumcraft Painted Left Hand Reverse Roll Top Rail Mount Cylinder/Thumbturn "F" Exterior Top Securing Deadbolt Handle
- UL Classified
- Easy Secure Access
- ANSI/BHMA Certified
- DBR130 Series Can Be Used With an Electric Strike
- Wide Selection of Exterior Fixed Handles for 1/2" (12 mm) or 3/4" (19 mm) Tempered Glass Doors
- Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
- Custom Finishes Available By Special Order
- Custom Sizes Ship Within One to Two Weeks
CRL-Blumcraft® manufactures a complete line of Access Control Handles for your 'all-glass' door needs. We have Panic Devices, Deadbolt Handles, and Electronic Egress Control Handles in a wide variety of configurations. We can also supply you with Dummy Handles to match these devices, allowing you to maintain the same appearance throughout the project, but without the added costs.
The locking mechanism is concealed within the vertical tubing of our Deadbolt Handles, providing easy access through a variety of keying options. An optional Top Latch Roller Bolt allows the use of Electronic Strikes for controlled entry systems.
For additional information, contact CRL Technical Sales from the home page by clicking on Contact Us, and then click on Technical Sales for Commercial Products. The latest catalog pages with complete details on our CRL-Blumcraft® Access Handle product line can be found
here." target="_blank">https://catalogs.crlaurence.com/AH18-Glass-Entrance-Systems/254/">here.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Ship via: No UPS - Common Carrier Only
Application: DRS Rail Mount
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 1-1/4 in. (32 mm)
Finish/ Color:: Powder Coated
Glazing Thickness: 1/2 in. (13 mm)
Handing: Left Hand Reverse
Keying: Cylinder / Thumb Turn
Latching: Top
Material: Stainless Steel (Alloy 304)
Shipping Limitations: No UPS - Common Carrier Only
Top Latch Type: Deadbolt Roller
