CRL DBR130F4RKBS Blumcraft Brushed Stainless Left Hand Reverse Roll Top Rail Deadbolt HandleC.R. Laurence DBR130F4RKBS Blumcraft Brushed Stainless Left Hand Reverse Roll Top Rail Mount Cylinder/Cylinder "F" Exterior Top Securing Deadbolt Handle offers a superior locking solution for all-glass doors. This UL Classified product features an ANSI/BHMA certification, ensuring it meets stringent quality and safety standards. Designed for ease of use, the deadbolt handle allows for easy secure access and can be integrated with an electric strike for enhanced control over entry systems. Constructed from durable Stainless Steel (Alloy 304), the DBR130 series accommodates ½ inch (12 mm) or ¾ inch (19 mm) tempered glass doors, making it a versatile choice for various applications. The locking mechanism is cleverly concealed within the vertical tubing, providing a sleek aesthetic without sacrificing functionality. Available in a variety of finishes, including polished and brushed stainless, satin and polished brass, and oil-rubbed bronze, custom finishes can also be ordered to meet specific project needs. With a diameter of 1-1/4 inches (32 mm) and a top latch roller type, this handle ensures reliable performance. Additionally, custom sizes can be shipped within one to two weeks, making it a convenient option for building professionals. For any additional information, CRL Technical Sales is readily accessible for assistance.

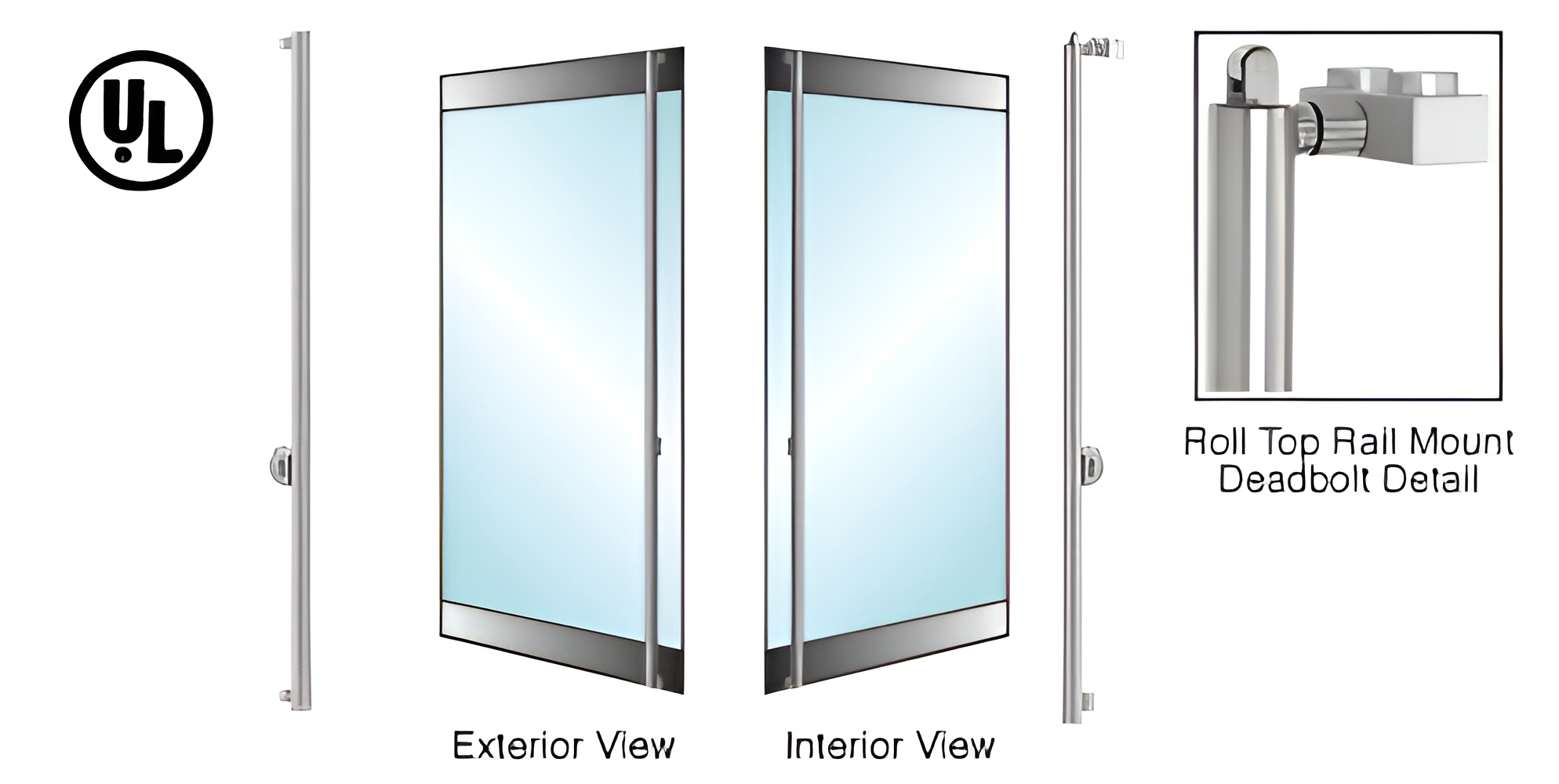

Blumcraft Brushed Stainless Left Hand Reverse Roll Top Rail Mount Cylinder/Cylinder "F" Exterior Top Securing Deadbolt Handle
- UL Classified
- Easy Secure Access
- ANSI/BHMA Certified
- DBR130 Series Can Be Used With an Electric Strike
- Wide Selection of Exterior Fixed Handles for 1/2" (12 mm) or 3/4" (19 mm) Tempered Glass Doors
- Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
- Custom Finishes Available By Special Order
- Custom Sizes Ship Within One to Two Weeks
CRL-Blumcraft® manufactures a complete line of Access Control Handles for your 'all-glass' door needs. We have Panic Devices, Deadbolt Handles, and Electronic Egress Control Handles in a wide variety of configurations. We can also supply you with Dummy Handles to match these devices, allowing you to maintain the same appearance throughout the project, but without the added costs.
The locking mechanism is concealed within the vertical tubing of our Deadbolt Handles, providing easy access through a variety of keying options. An optional Top Latch Roller Bolt allows the use of Electronic Strikes for controlled entry systems.
For additional information, contact CRL Technical Sales from the home page by clicking on Contact Us, and then click on Technical Sales for Commercial Products. The latest catalog pages with complete details on our CRL-Blumcraft® Access Handle product line can be found
here." target="_blank">https://catalogs.crlaurence.com/AH18-Glass-Entrance-Systems/254/">here.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Ship via: No UPS - Common Carrier Only
Application: DRS Rail Mount
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 1-1/4 in. (32 mm)
Finish/ Color:: Brushed Stainless Steel
Glazing Thickness: 1/2 in. (13 mm)
Handing: Left Hand Reverse
Keying: Cylinder / Cylinder
Latching: Top
Material: Stainless Steel (Alloy 304)
Shipping Limitations: No UPS - Common Carrier Only
Top Latch Type: Deadbolt Roller
