CRL DBR130FS4R1PT Blumcraft Left Hand Reverse Double Acting Roll Top Rail Cylinder/Thumbturn DeadboltC.R. Laurence DBR130FS4R1PT Blumcraft Painted Left Hand Reverse Double Acting Roll Top Rail Mount Cylinder/Thumbturn "FS" Top Secured Deadbolt Exterior Handle combines security and accessibility in a sleek design tailored for all-glass door applications. This UL Classified handle is ANSI/BHMA Certified, ensuring it meets rigorous industry standards. With an easy secure access mechanism, it is perfect for high-traffic areas where reliability is paramount. Compatible with the DB130 Series, this handle can seamlessly integrate with electric strike systems, offering versatile entry solutions. It accommodates various glazing thicknesses, specifically for 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors. Available in an array of finishes including Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze, the DBR130FS4R1PT can also be customized with special finishes and sizes to meet specific project needs. The concealed locking mechanism within the vertical tubing provides a clean aesthetic while allowing for easy access through multiple keying options. Additionally, an optional Top Latch Roller Bolt enhances security when paired with electronic systems. Ideal for both commercial and residential use, this handle ensures a perfect balance of function and style.

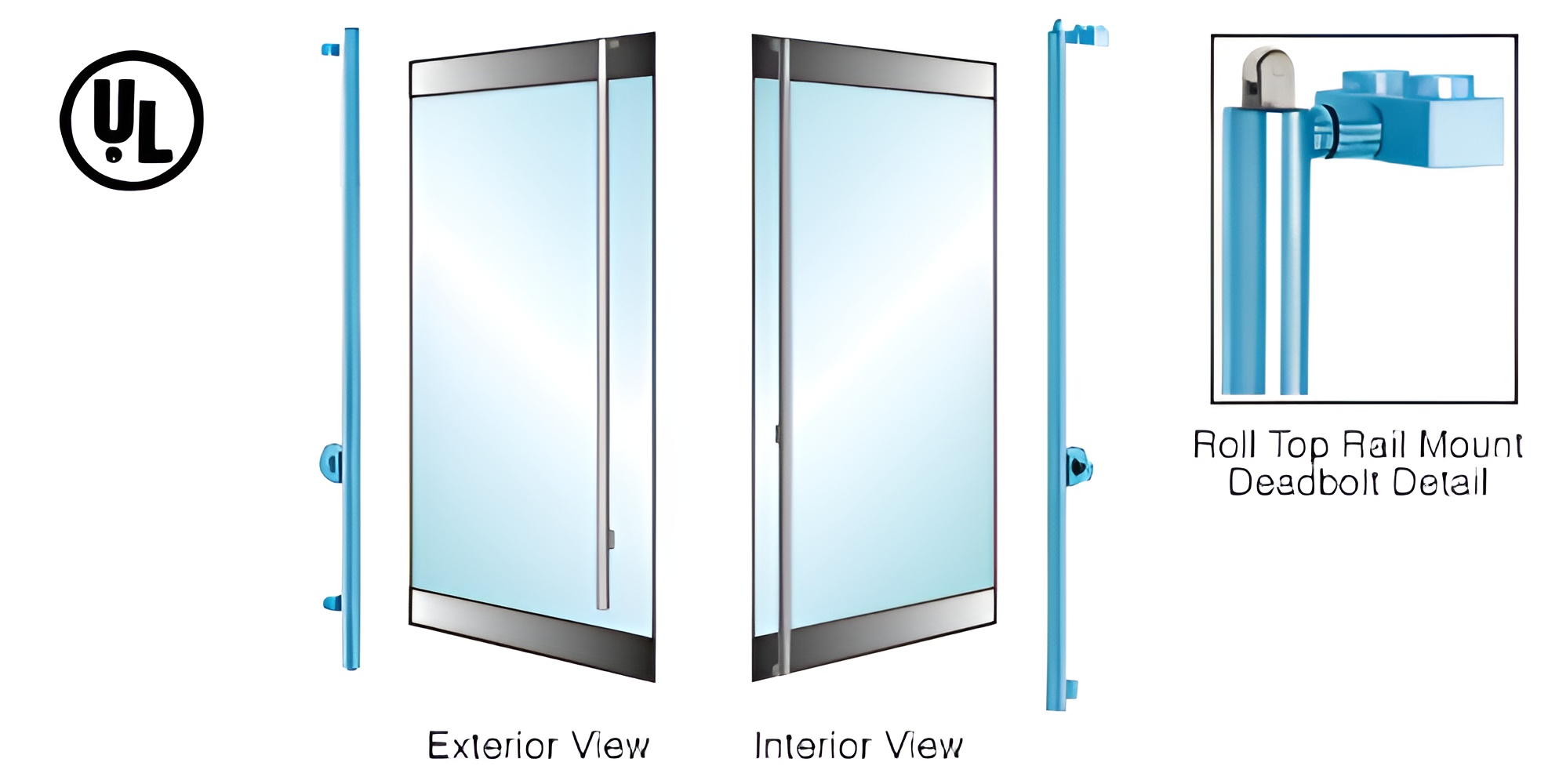

Blumcraft Painted Left Hand Reverse Double Acting Roll Top Rail Mount Cylinder/Thumbturn "FS" Top Secured Deadbolt Exterior Handle
- UL Classified
- Easy Secure Access
- ANSI/BHMA Certified
- DB130 Series Can Be Used With an Electric Strike
- Wide Selection of Exterior Fixed Handles for 1/2" (12 mm) or 3/4" (19 mm) Tempered Glass Doors
- Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
- Custom Finishes Available By Special Order
- Custom Sizes Ship Within One to Two Weeks
CRL-Blumcraft® manufactures a complete line of Access Control Handles for your 'all-glass' door needs. We have Panic Devices, Deadbolt Handles, and Electronic Egress Control Handles in a wide variety of configurations. We can also supply you with Dummy Handles to match these devices, allowing you to maintain the same appearance throughout the project, but without the added costs.
The locking mechanism is concealed within the vertical tubing of our Deadbolt Handles, providing easy access through a variety of keying options. An optional Top Latch Roller Bolt allows the use of Electronic Strikes for controlled entry systems.
For additional information, contact CRL Technical Sales from the home page by clicking on Contact Us, and then click on Technical Sales for Commercial Products. The latest catalog pages with complete details on our CRL-Blumcraft® Access Handle product line can be found
here." target="_blank">https://catalogs.crlaurence.com/AH18-Glass-Entrance-Systems/254/">here.
Product Warning:
Secures at Top of Door Only.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Ship via: No UPS - Common Carrier Only
Application: DRS Rail Mount
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 1-1/4 in. (32 mm)
Finish/ Color:: Powder Coated
Glazing Thickness: 1/2 in. (13 mm)
Handing: Left Hand Reverse
Keying: Cylinder / Thumb Turn
Latching: Top
Material: Stainless Steel (Alloy 304)
Shipping Limitations: No UPS - Common Carrier Only
Top Latch Type: Deadbolt Roller
