CRL DBR160J4G1BS Blumcraft Brushed Stainless Left Hand Reverse Roll Top Glass Mount Deadbolt HandleC.R. Laurence DBR160J4G1BS Blumcraft Brushed Stainless Left Hand Reverse Roll Top Glass Mount Cylinder/Thumbturn "J" Exterior Top Securing Deadbolt Handle is designed to provide reliable access control for all-glass door installations. This UL Classified product is ANSI/BHMA certified, ensuring it meets high standards for security and performance. The deadbolt handle features a concealed locking mechanism within the vertical tubing, allowing for easy access through various keying options. Compatible with 1/2" (12 mm) and 3/4" (19 mm) tempered glass doors, the DBR160 series can also be paired with an electric strike for enhanced security and convenience. The brushed stainless steel finish not only offers a modern aesthetic but is also available in a range of custom finishes and sizes by special order, shipping within one to two weeks. The top latch roller bolt adds versatility, making it ideal for controlled entry systems. With a diameter of 1-1/4 inches (32 mm) and a sturdy construction from stainless steel (Alloy 304), this deadbolt handle is built to last. For a seamless look throughout your project, consider adding dummy handles to match. Choose the C.R. Laurence DBR160J4G1BS for a sophisticated and secure solution for your glass entrance systems.

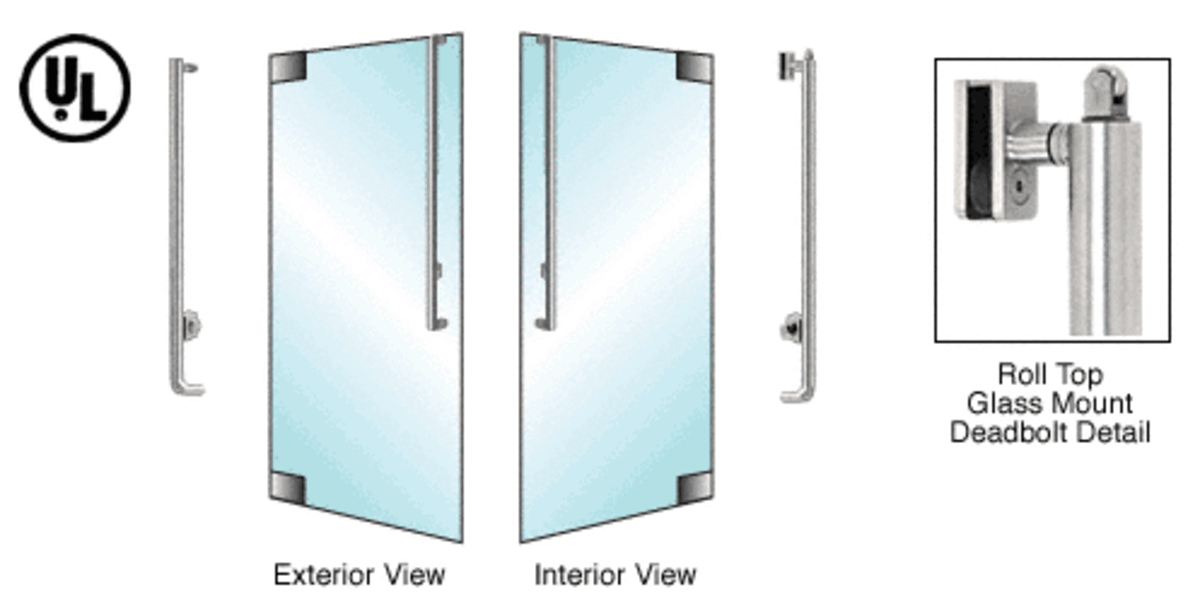

Blumcraft Brushed Stainless Left Hand Reverse Roll Top Glass Mount Cylinder/Thumbturn "J" Exterior Top Securing Deadbolt Handle
- UL Classified
- Easy Secure Access
- ANSI/BHMA Certified
- DBR160 Series Can Be Used With an Electric Strike
- Wide Selection of Exterior Fixed Handles for 1/2" (12 mm) or 3/4" (19 mm) Tempered Glass Doors
- Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
- Custom Finishes Available By Special Order
- Custom Sizes Ship Within One to Two Weeks
CRL-Blumcraft® manufactures a complete line of Access Control Handles for your 'all-glass' door needs. We have Panic Devices, Deadbolt Handles, and Electronic Egress Control Handles in a wide variety of configurations. We can also supply you with Dummy Handles to match these devices, allowing you to maintain the same appearance throughout the project, but without the added costs.
The locking mechanism is concealed within the vertical tubing of our Deadbolt Handles, providing easy access through a variety of keying options. An optional Top Latch Roller Bolt allows the use of Electronic Strikes for controlled entry systems.
For additional information, contact CRL Technical Sales from the home page by clicking on Contact Us, and then click on Technical Sales for Commercial Products. The latest catalog pages with complete details on our CRL-Blumcraft® Access Handle product line can be found
here." target="_blank">https://catalogs.crlaurence.com/AH18-Glass-Entrance-Systems/254/">here.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Ship via: No UPS - Common Carrier Only
Application: All-Glass Door Mount
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 1-1/4 in. (32 mm)
Finish/ Color:: Brushed Stainless Steel
Glazing Thickness: 1/2 in. (13 mm)
Handing: Left Hand Reverse
Keying: Cylinder / Thumbturn
Latching: Top
Material: Stainless Steel (Alloy 304)
Shipping Limitations: No UPS - Common Carrier Only
Top Latch Type: Deadbolt Roller
Resources
