CRL DBR170F3RKBS Blumcraft Brushed Stainless Right Hand Reverse Roll Top Rail Deadbolt HandleC.R. Laurence DBR170F3RKBS Blumcraft Brushed Stainless Right Hand Reverse Roll Top Rail Mount "F" Exterior Top Securing Deadbolt Handle combines security and style for your all-glass door applications. This UL Classified handle is designed for ease of use, ensuring quick and secure access while meeting ANSI/BHMA certification standards. The DBR170 Series is versatile, accommodating either 1/2" (12 mm) or 3/4" (19 mm) tempered glass doors, making it an ideal choice for various architectural designs. With a concealed locking mechanism housed within the vertical tubing, this handle offers a sleek appearance without compromising security. It features a cylinder/cylinder keying option and a top latch roller bolt, allowing integration with electric strikes for controlled entry systems. Available in a range of finishes-including Brushed Stainless, Polished Stainless, Satin and Polished Brass, and Oil Rubbed Bronze-this handle can be customized further through special orders to meet specific project needs. Custom sizes can be shipped within one to two weeks, ensuring timely delivery for your projects. For maintenance, periodic care is recommended to preserve the stainless steel finish. Choose the C.R. Laurence DBR170F3RKBS handle for a perfect blend of functionality and aesthetic appeal in your commercial or residential spaces.

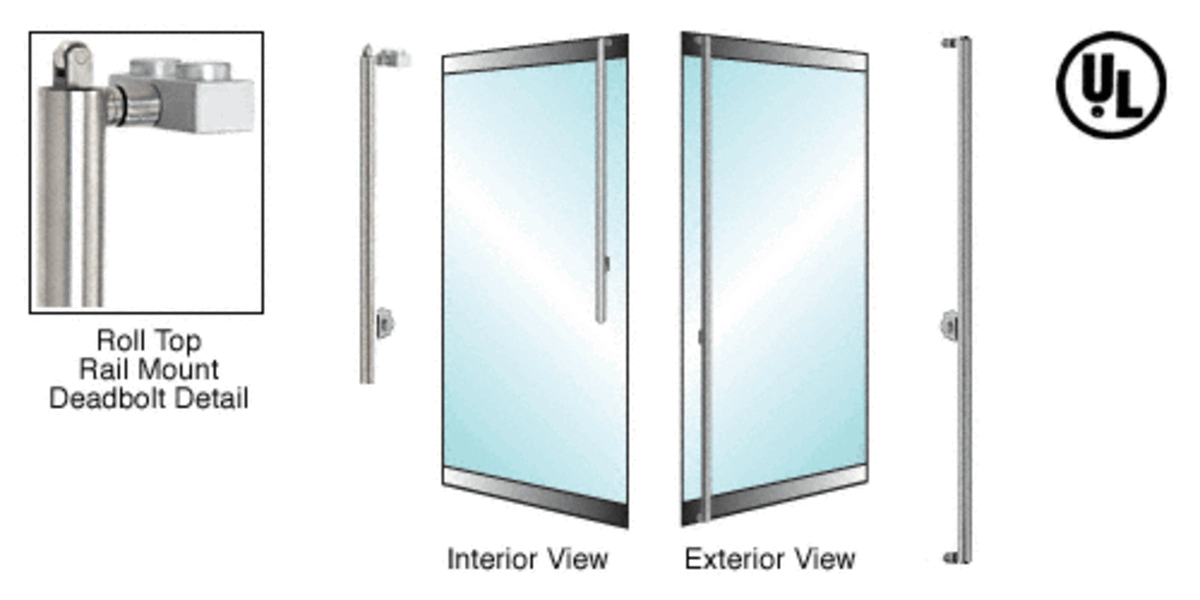

Blumcraft Brushed Stainless Right Hand Reverse Roll Top Rail Mount "F" Exterior Top Securing Deadbolt Handle
- UL Classified
- Easy Secure Access
- ANSI/BHMA Certified
- DBR170 Series Can Be Used With an Electric Strike
- Wide Selection of Exterior Fixed Handles for 1/2" (12 mm) or 3/4" (19 mm) Tempered Glass Doors
- Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
- Custom Finishes Available By Special Order
- Custom Sizes Ship Within One to Two Weeks
CRL-Blumcraft® manufactures a complete line of Access Control Handles for your 'all-glass' door needs. We have Panic Devices, Deadbolt Handles, and Electronic Egress Control Handles in a wide variety of configurations. We can also supply you with Dummy Handles to match these devices, allowing you to maintain the same appearance throughout the project, but without the added costs.
The locking mechanism is concealed within the vertical tubing of our Deadbolt Handles, providing easy access through a variety of keying options. An optional Top Latch Roller Bolt allows the use of Electronic Strikes for controlled entry systems.
For additional information, contact CRL Technical Sales from the home page by clicking on Contact Us, and then click on Technical Sales for Commercial Products. The latest catalog pages with complete details on our CRL-Blumcraft® Access Handle product line can be found
here." target="_blank">https://catalogs.crlaurence.com/AH18-Glass-Entrance-Systems/254/">here.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Ship via: No UPS - Common Carrier Only
Application: DRS Rail Mount
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 1-1/4 in. (32 mm)
Finish/ Color:: Brushed Stainless Steel
Glazing Thickness: 1/2 in. (13 mm)
Handing: Right Hand Reverse
Keying: Cylinder / Cylinder
Latching: Top
Material: Stainless Steel (Alloy 304)
Shipping Limitations: No UPS - Common Carrier Only
Top Latch Type: Deadbolt Roller
Resources
