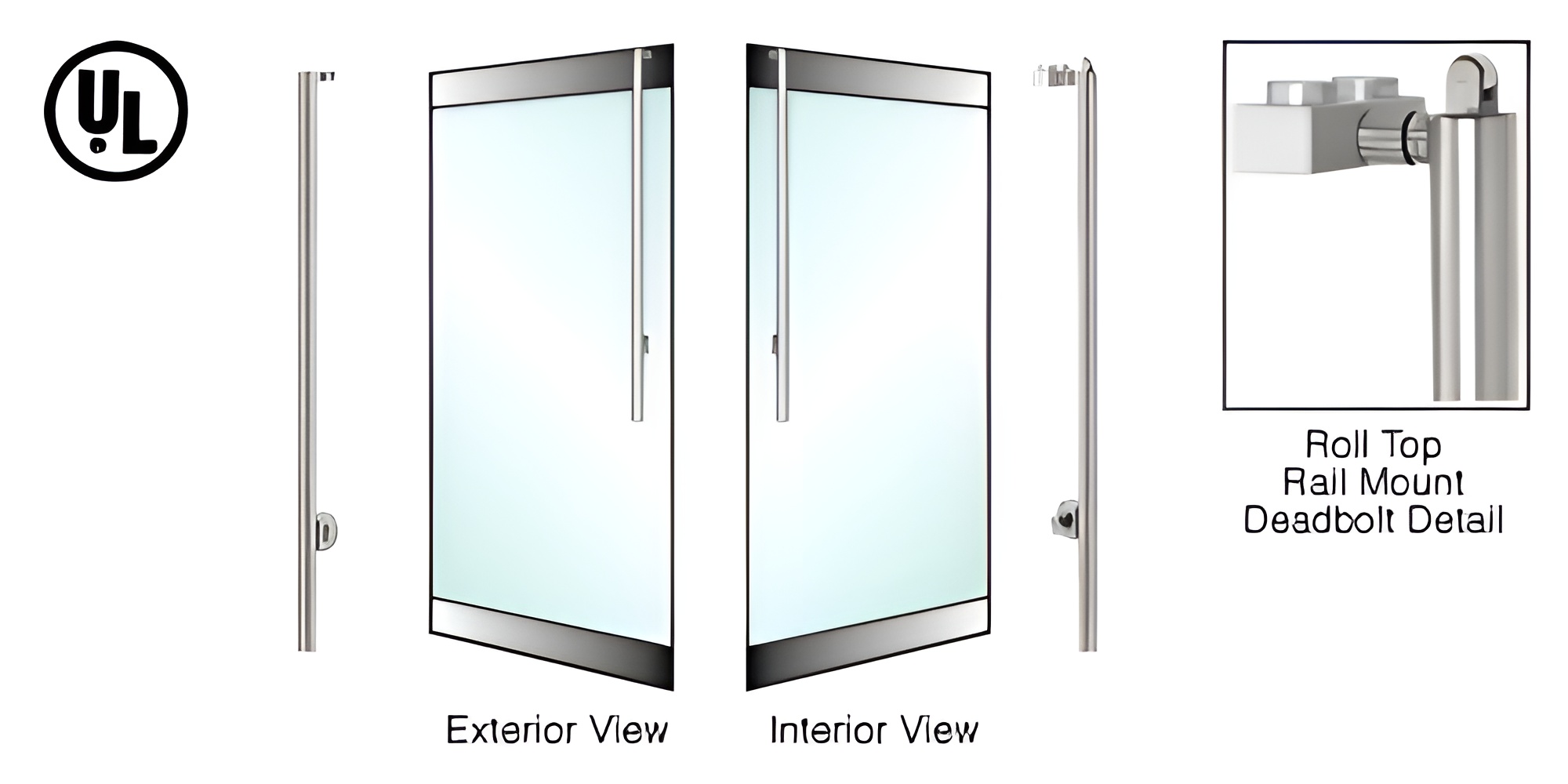

CRL DBR170JS4R1BS Blumcraft Brushed Stainless Left Hand Reverse Roll Top Rail Deadbolt HandleC.R. Laurence DBR170JS4R1BS Blumcraft Brushed Stainless Left Hand Reverse Roll Top Rail Mount Cylinder/Thumbturn "JS" Exterior Top Securing Deadbolt Handle combines durability and style for all-glass door systems. This UL Classified handle is ANSI/BHMA Certified, ensuring high standards of safety and functionality. Designed for ease of access, it features a concealed locking mechanism within the vertical tubing, offering a seamless aesthetic while providing reliable security. Compatible with both 1/2" (12 mm) and 3/4" (19 mm) tempered glass doors, the DB170 series can also be used with an electric strike for enhanced entry control. Available in a range of finishes including polished and brushed stainless, satin and polished brass, and oil-rubbed bronze, custom finishes and sizes can be ordered to meet specific project requirements, shipping within one to two weeks. This model is equipped with a top latch roller bolt for added versatility in latching options, making it an excellent choice for hospitality and commercial applications. With its robust construction from Alloy 304 stainless steel, it not only resists corrosion but also maintains its sleek appearance with periodic maintenance. Elevate your glass entrance systems with the C.R. Laurence DBR170JS4R1BS, where security meets elegance.
Blumcraft Brushed Stainless Left Hand Reverse Roll Top Rail Mount Cylinder/Thumbturn "JS" Exterior Top Securing Deadbolt Handle
- UL Classified
- Easy Secure Access
- ANSI/BHMA Certified
- DB170 Series Can Be Used With an Electric Strike
- Wide Selection of Exterior Fixed Handles for 1/2" (12 mm) or 3/4" (19 mm) Tempered Glass Doors
- Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
- Custom Finishes Available By Special Order
- Custom Sizes Ship Within One to Two Weeks
CRL-Blumcraft® manufactures a complete line of Access Control Handles for your 'all-glass' door needs. We have Panic Devices, Deadbolt Handles, and Electronic Egress Control Handles in a wide variety of configurations. We can also supply you with Dummy Handles to match these devices, allowing you to maintain the same appearance throughout the project, but without the added costs.
The locking mechanism is concealed within the vertical tubing of our Deadbolt Handles, providing easy access through a variety of keying options. An optional Top Latch Roller Bolt allows the use of Electronic Strikes for controlled entry systems.
For additional information, contact CRL Technical Sales from the home page by clicking on Contact Us, and then click on Technical Sales for Commercial Products. The latest catalog pages with complete details on our CRL-Blumcraft® Access Handle product line can be found
here." target="_blank">https://catalogs.crlaurence.com/AH18-Glass-Entrance-Systems/254/">here.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Ship via: No UPS - Common Carrier Only
Application: DRS Rail Mount
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 1-1/4 in. (32 mm)
Finish/ Color:: Brushed Stainless Steel
Glazing Thickness: 1/2 in. (13 mm)
Handing: Left Hand Reverse
Keying: Cylinder / Thumb Turn
Latching: Top
Material: Stainless Steel (Alloy 304)
Shipping Limitations: No UPS - Common Carrier Only
Top Latch Type: Deadbolt Roller
Resources
