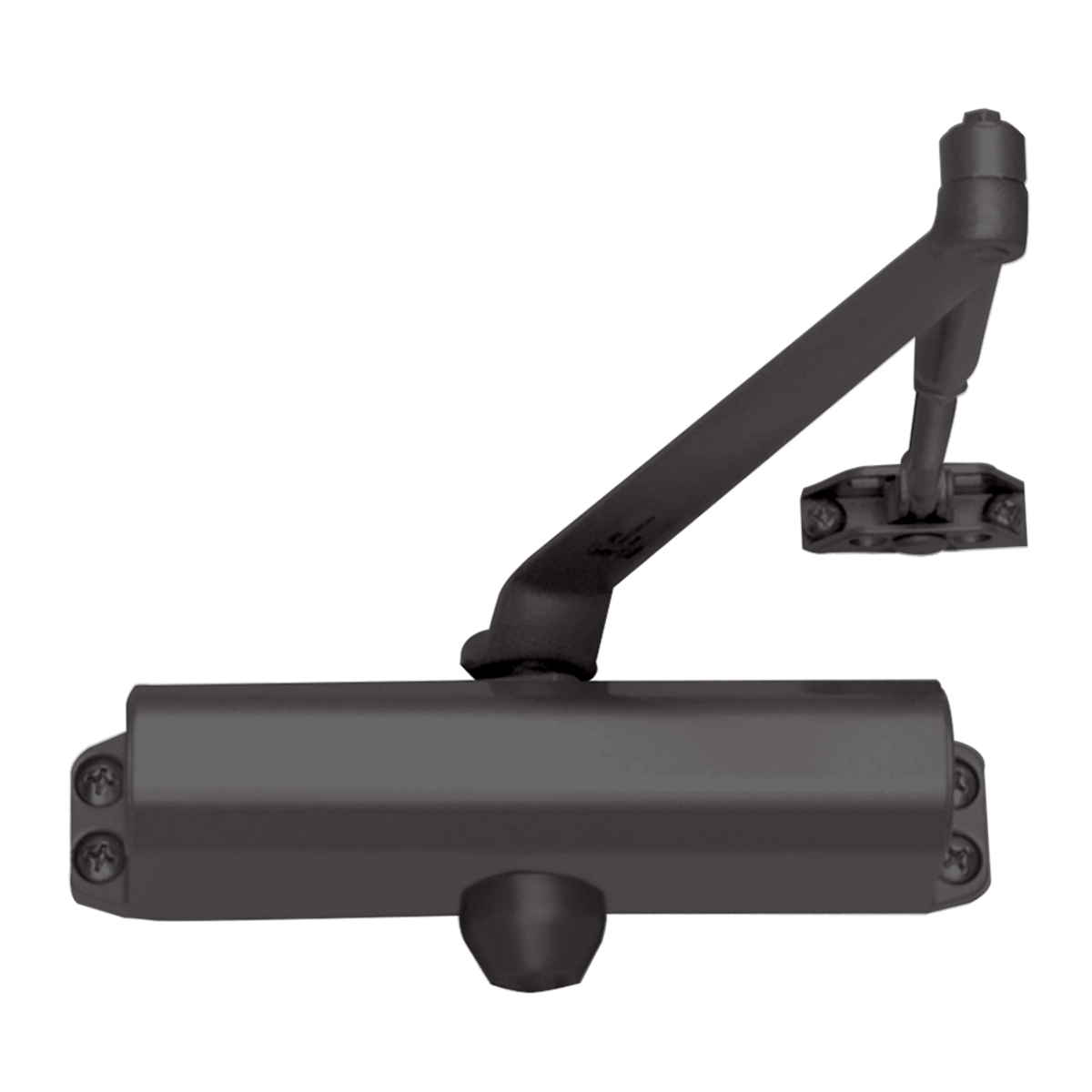

CRL DC54BRZ Dark Bronze ANSI Grade 1 Size 4 Surface Mount Door Closer

C.R. Laurence DC54BRZ Dark Bronze ANSI Grade 1 Spring Size 4 Surface Mount Door Closer is engineered for both commercial and residential applications, ensuring reliable door control in any setting. This surface-mounted closer features dual valve closing and latching speed control, allowing for independent adjustments to meet specific operational needs. Designed for doors weighing between 143 and 187 lbs., it accommodates interior doors up to 48 inches wide and exterior doors up to 42 inches wide. The versatility of this door closer is enhanced by its reversible design, making it suitable for standard, top-jamb, and parallel arm installations on aluminum, metal, or wood doors. Available in an elegant dark bronze finish, it also offers custom color options to suit various aesthetics. The adjustable back check feature protects doors from damage caused by wind or forceful swings, promoting longevity and durability. This door closer is UL listed and complies with ANSI A156.4 Grade 1 standards, ensuring high-quality performance and safety. Each unit comes with a Parallel Arm Bracket and mounting hardware for easy installation. Optional accessories like Drop Plates and Hold Open Arms are also available for specialized setups. With a ten-year warranty, the C.R. Laurence DC54BRZ is a dependable choice for any project.

Dark Bronze ANSI Grade 1 Spring Size 4 Surface Mount Door Closer

• Engineered for Commercial and Residential Use
• Dual Valve Closing and Latching Speed Control
• Reversible for Standard, Top-Jamb, and Parallel Arm Installations on Aluminum, Metal, and Wood Doors
• Aluminum and Dark Bronze Finishes
• Custom Colors Available
• ANSI A156.4 Grade 1
• UL Listed

Resources

• Door Closer Warranty
• Push Side - Parallel Arm CRL DC50 - Push Side - Parallel Arm.pdf
• Specifications Closer2.pdf
• Surface Closer Cross Reference Specifications
