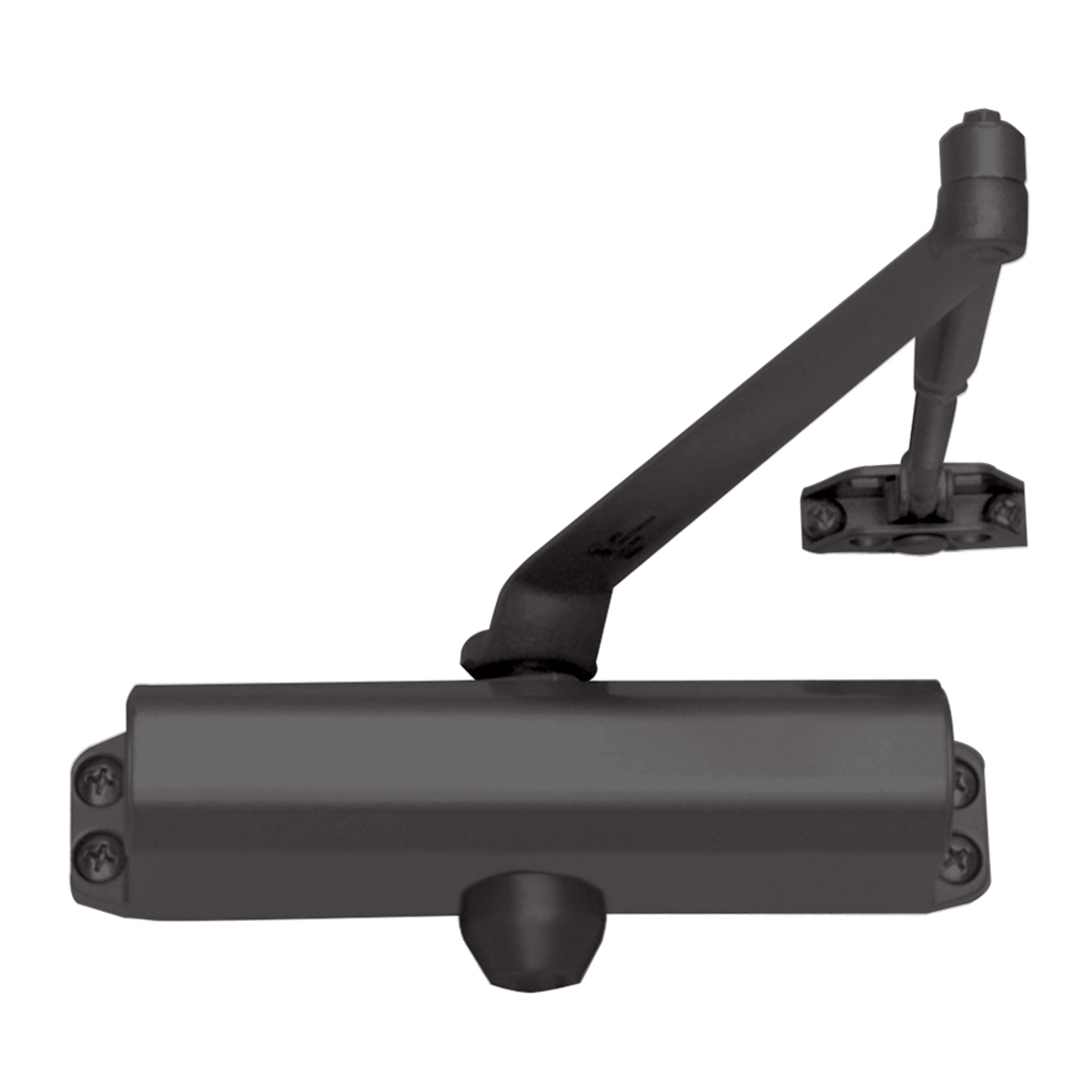

CRL DC55BRZ Bronze ANSI Grade 1 Size 5 Surface Mount Door CloserC.R. Laurence DC55BRZ Bronze ANSI Grade 1 Spring Size 5 Surface Mount Door Closer is engineered to meet the demands of both commercial and residential applications, providing reliable performance for doors up to 48 inches wide and weighing between 187 to 264 lbs. This heavy-duty closer features dual valve closing and latching speed control, allowing for customizable operation that adapts to your specific needs. The reversible design supports standard, top-jamb, or parallel arm installations on aluminum, metal, and wood doors, ensuring versatility in various settings. Constructed with a robust bronze finish, the DC55BRZ not only enhances aesthetics but also guarantees durability. It is UL listed and compliant with ANSI A156.4 Grade 1 standards, ensuring safety and reliability. Additionally, it includes an adjustable back check feature to protect the closer and surrounding surfaces from damage caused by forceful door swings. Included with the closer are a parallel arm bracket and all necessary mounting hardware, simplifying the installation process. Optional accessories such as drop plates and hold open arms provide further customization for unique requirements. With a ten-year warranty, the C.R. Laurence DC55BRZ Door Closer is an exceptional choice for those seeking quality and performance in door hardware.
Bronze ANSI Grade 1 Spring Size 5 Surface Mount Door Closer
- Engineered for Commercial and Residential Use
- Dual Valve Closing and Latching Speed Control
- Reversible for Standard, Top-Jamb, and Parallel Arm Installations on Aluminum, Metal, and Wood Doors
- Aluminum and Dark Bronze Finishes
- Custom Colors Available
- ANSI A156.4 Grade 1
- UL Listed
CRL carries a Size 5,
CRL DC55 Heavy-Duty Surface Mount Door Closer, that will work with your most demanding commercial or residential applications. Suitable for doors up to 48" (1.22 m) wide and weighing between 187 and 264 lbs. (85 and 120 kg), the DC55 Closer is ideal for use on heavy commercial door applications. The closing (sweep) speed can be variably adjusted to suit your individual requirements, while the latching speed can be accelerated over the last few degrees to ensure the door properly closes and latches. They also feature an adjustable back check feature that helps prevent damage to the closer, door, and adjacent surface when the door is violently swung open due to wind or heavy pedestrian traffic.
All CRL Surface Mounted Closers are U.L. listed and warranted for ten years. A Parallel Arm Bracket and mounting hardware are included with each closer permitting universal installation for regular, top jamb or parallel arm applications. Optional accessories, such as
Drop Plates and
Hold Open Arms, are available for special installations.
Increase customer recognition with customized private labeling.
CRL DC53, DC54 and DC55 models are available in plain boxes and are ready to be Private Labeled. To discuss the program and pricing in detail contact
CRL Technical Sales.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Body Length: 9-3/4
Case Quantity: 10
Certification: ANSI A156.4 Grade 1
Closer Type: Surface Mount
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Weight: 187-264
Finish/ Color:: Bronze
Horizontal Mounting Holes: 9-1/16
Maximum Door Width - Exterior: 42 Inches
Maximum Door Width - Interior: 48 Inches
Product Details: Dual Valve Closing and Latching Speed Control
Shipping Limitations: None
Spring Size: 5
UL Listed: Yes
Vertical Mounting Holes Center To Center: 3/4
