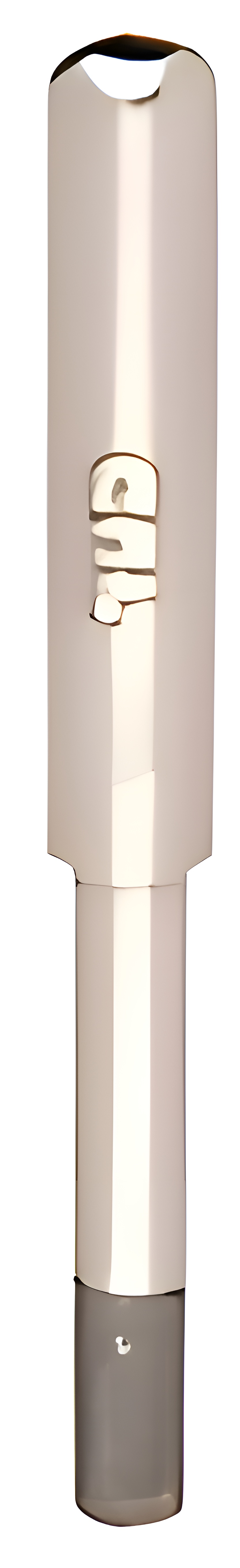

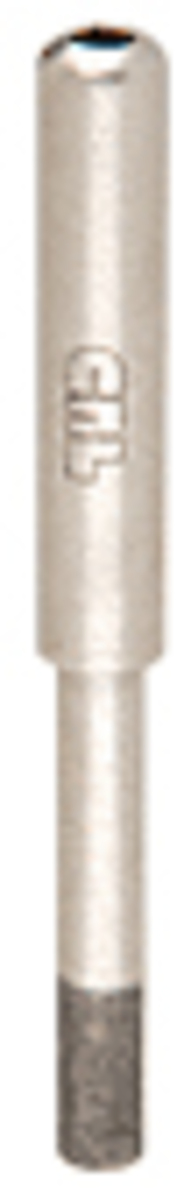

CRL DCD14 1/4" DCD Series Electro-Formed Diamond Drill, Straight Shank

CRL DCD14 1/4" DCD Series Electro-Formed Diamond Drill, Straight Shank

C.R. Laurence DCD14 1/4" DCD Series Straight Shank Electro-Formed Diamond Drill is engineered for high-speed, high-production glass drilling. With a thin-walled construction and a specialized 1/2" (12.7 mm) deep multi-layer of diamonds, this drill delivers exceptional cutting performance when used under precise conditions. The extra-long 3/8" x 1-3/8" (9.5 mm x 35 mm) shank ensures a secure grip, allowing for greater stability during operation. Designed specifically for flat (plate) glass, the DCD14 drill is compatible with both Straight Shank and Belgian Type mounting styles, making it a versatile choice for various drilling machines. For optimal results, it is crucial to utilize this drill in a precision machine, applying minimal pressure to avoid damage. Regularly sharpening or "dressing" the drill with a dressing stone will significantly enhance cutting capabilities. Safety is paramount when using the DCD14; always wear gloves and eye protection, and ensure operations are conducted on a flat, horizontal surface. A Ground Fault Circuit Interrupter (GFCI) must be in use when employing electric tools with water or coolant. Adhering to these guidelines will not only protect the operator but also extend the life of this delicate tool, designed exclusively for professional-grade applications.

1/4" DCD Series Straight Shank Electro-Formed Diamond Drill

• For Fast Cutting, High Production Runs
• Extended Work Life
• Two Mounting Styles to Choose From: Straight Shank or Belgian Type
• DCD Feature 3/8" x 1-3/8" (9.5 x 35 mm) Shaft

These CRL Electro-Formed Diamond Drills are thin-walled, with a 1/2" (12.7 mm) deep multi-layer of diamonds and bonding matrix designed for high speed, high production drilling. These drills give outstanding results when exacting conditions are met. The CRL DCD Series features an extra long 1-3/8" by 3/8" (35 by 9.5 mm) diameter shank for a positive grip on the drill. The CRL HBT Series features Belgian style mounting threads, also known as 1/2" (12.7 mm, gas thread), which are popular choices for U.S. and European glass drilling machines.


Due to the fragile nature of these types of drills, they should be used in a precision machine, never allowing too much pressure to be applied. It is important to handle these types of diamond drills with care and use on flat surfaces only. Sharpening or "dressing" of these drills before each use will substantially increase their cutting capabilities. A dressing stone is a recommended necessity when working with an Electro-Formed Diamond Drill.

IMPORTANT NOTE:CRL DCD and HBT Series Diamond Drills have a very thin wall which makes them EXTREMELY FRAGILE. They are intended for the drilling of flat (plate) glass ONLY, in a true running, production type drilling press.

NEVER perform any type of freehand drilling. The use of a hand drill requieres a stabilization base such as a our GDB1 & GDB2 Glass Drilling Bases. Extreme care and caution should be used as the use of these drill in any other manner other than as specified may damage the bit and void warranty.

Always wear the proper safety gear including gloves and eye protection when drilling glass. Work should be performed on a flat, horizontal surface. A Ground Fault Circuit Interrupter must be used when using any type of electric tool in conjunction with water or coolant. Failure to follow any of these precautions can result in operator injury.
