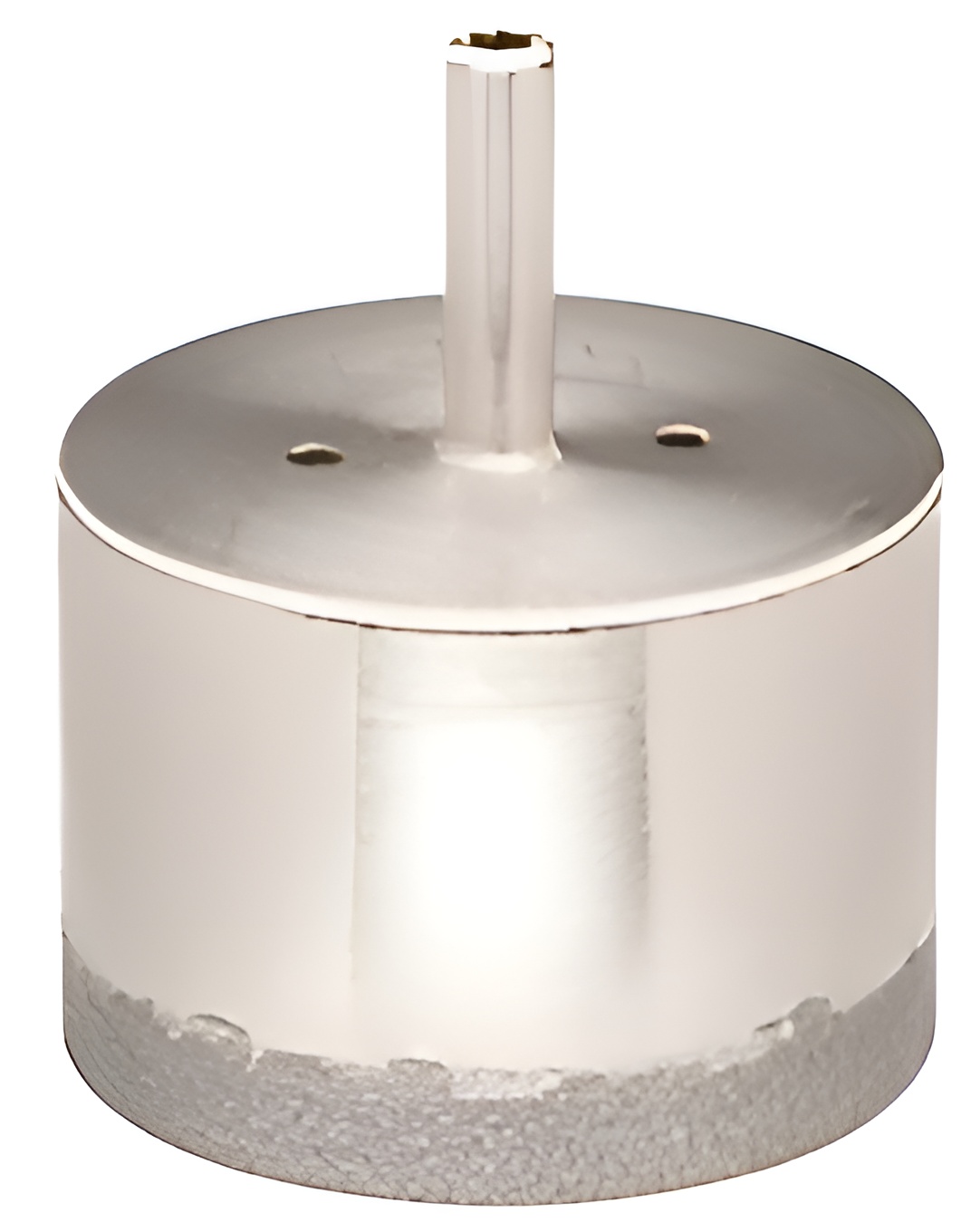

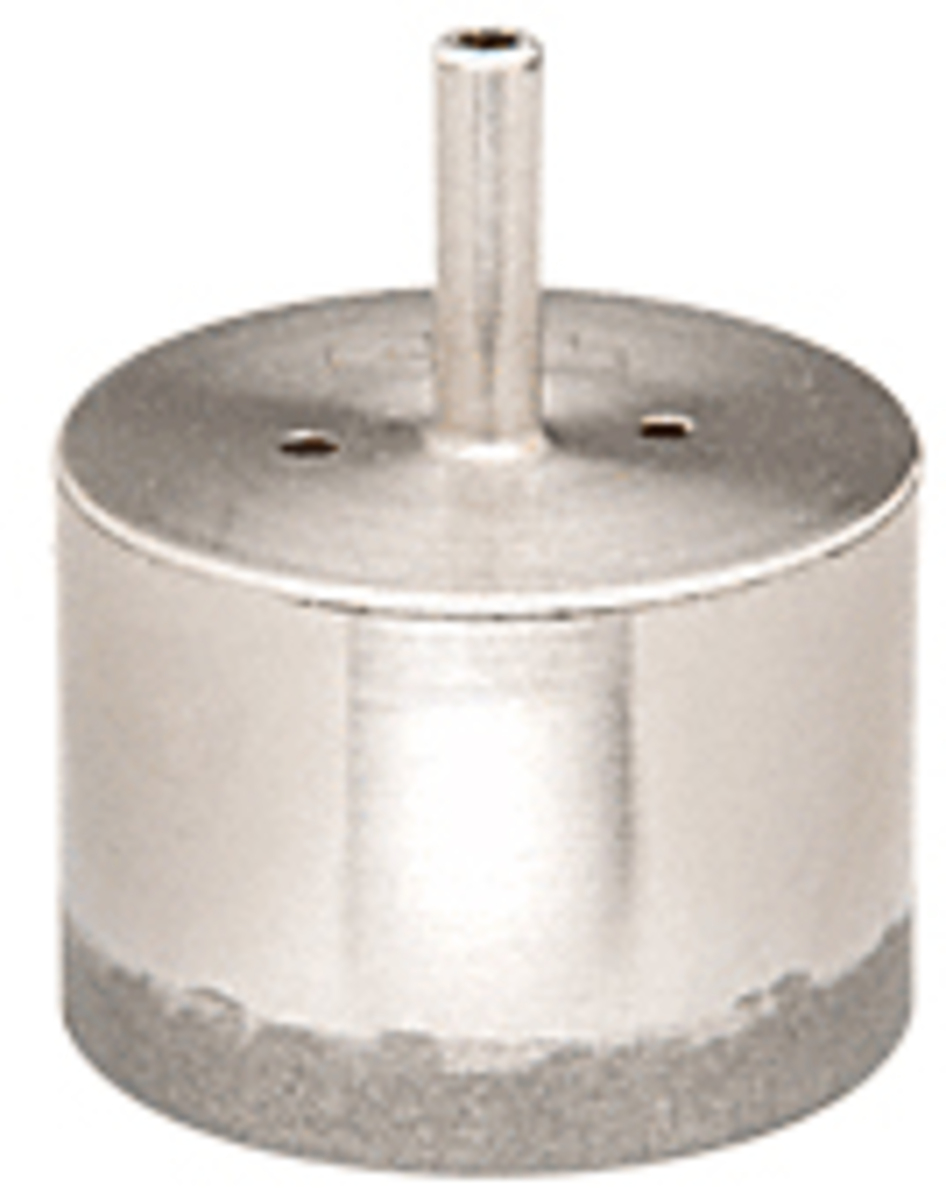

CRL DCD3 3" DCD Series Electro-Formed Diamond Drill with Straight Shank

CRL DCD3 3" DCD Series Electro-Formed Diamond Drill with Straight Shank

C.R. Laurence DCD3 3" DCD Series Straight Shank Electro-Formed Diamond Drill delivers precision and efficiency for high-production drilling tasks. Designed for fast cutting, this thin-walled drill features a 1/2" (12.7 mm) deep multi-layer of diamonds bonded for remarkable durability and performance. With an extra-long 1-3/8" x 3/8" (35 x 10 mm) diameter shank, it ensures a secure grip, making it ideal for use in precision machines. The DCD3 drill is specifically crafted for flat (plate) glass, demanding careful handling and proper application to maximize its capabilities. It is essential to use this drill in a true running, production-type drilling press, avoiding any freehand drilling to prevent damage. For optimal results, consider sharpening or "dressing" the drill before use, and always incorporate a dressing stone into your workflow. Safety is paramount; operators should wear gloves and eye protection while working on flat, horizontal surfaces. Additionally, using a Ground Fault Circuit Interrupter (GFCI) is crucial when operating electric tools with water or coolant. Trust the C.R. Laurence DCD3 to provide the reliability and quality you need for your glass drilling projects.

3" DCD Series Straight Shank Electro-Formed Diamond Drill

• For Fast Cutting, High Production Runs
• Extended Work Life
• Two Mounting Styles to Choose from Straight Shank or Belgian Type

These CRL Electro-Formed Diamond Drills are thin-walled, with a 1/2" (12.7 mm) deep multi-layer of diamonds and bonding matrix designed for high speed, high production drilling. These drills give outstanding results when exacting conditions are met. The CRL DCD Series features an extra long 1-3/8" x 3/8" (35 x 10 mm) diameter shank for a positive grip on the drill. The CRL HBT Series features Belgian style mounting threads, also known as 1/2" (12.7 mm, gas thread), which are popular choices for U.S. and European glass drilling machines.


Due to the fragile nature of these types of drills, they should be used in a precision machine, never allowing too much pressure to be applied. It is important to handle these types of diamond drills with care and use on flat surfaces only. Sharpening or "dressing" of these drills before each use will substantially increase their cutting capabilities. A dressing stone is a recommended necessity when working with an Electro-Formed Diamond Drill.

IMPORTANT NOTE: CRL DCD and HBT Series Diamond Drills have a very thin wall which makes them EXTREMELY FRAGILE. They are intended for the drilling of flat (plate) glass ONLY, in a true running, production type drilling press.

NEVER perform any type of freehand drilling. The use of a hand drill requieres a stabilization base such as a our GDB1 & GDB2 Glass Drilling Bases. Extreme care and caution should be used as the use of these drill in any other manner other than as specified may damage the bit and void warranty.

Always wear the proper safety gear including gloves and eye protection when drilling glass. Work should be performed on a flat, horizontal surface. A Ground Fault Circuit Interrupter must be used when using any type of electric tool in conjunction with water or coolant. Failure to follow any of these precautions can result in operator injury.
