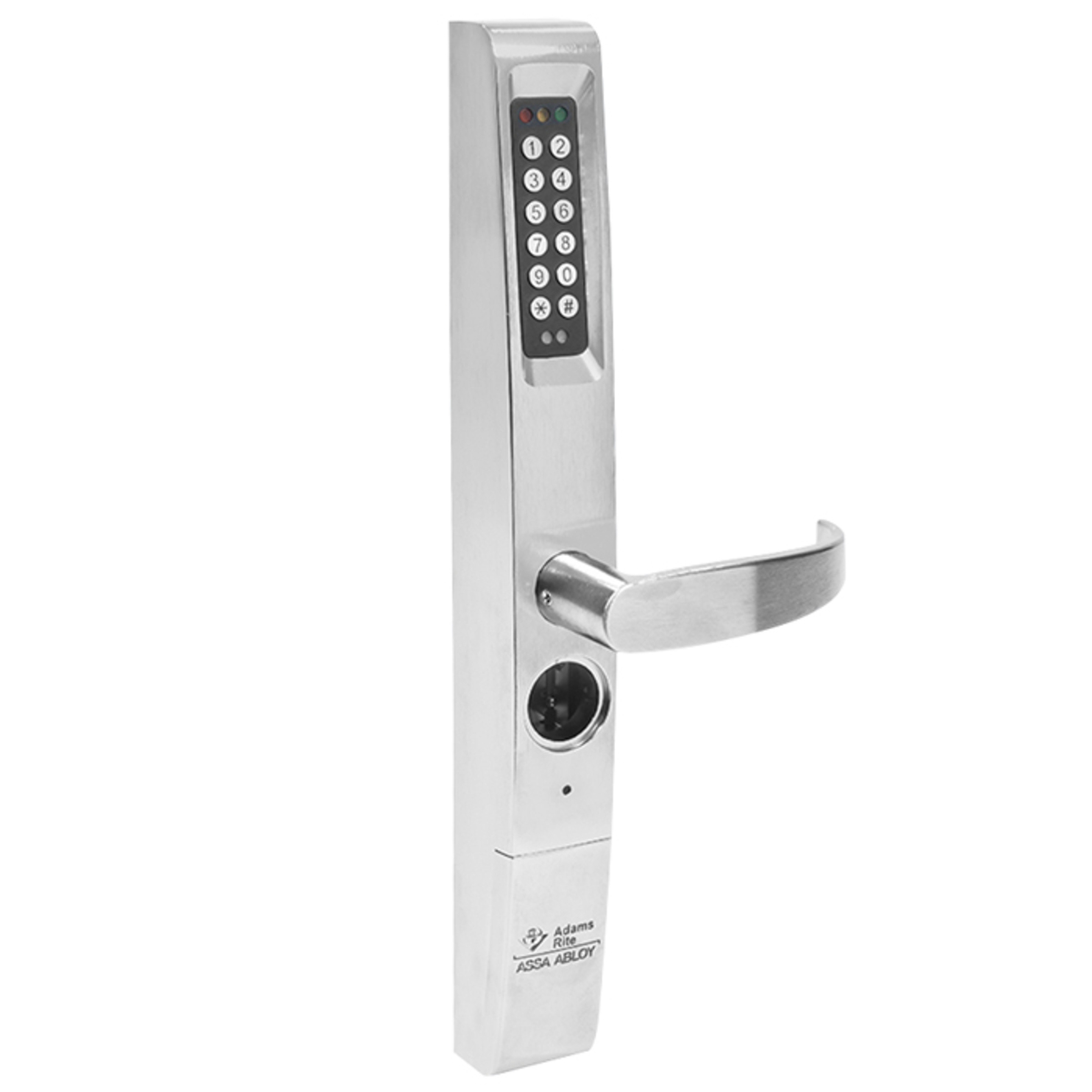

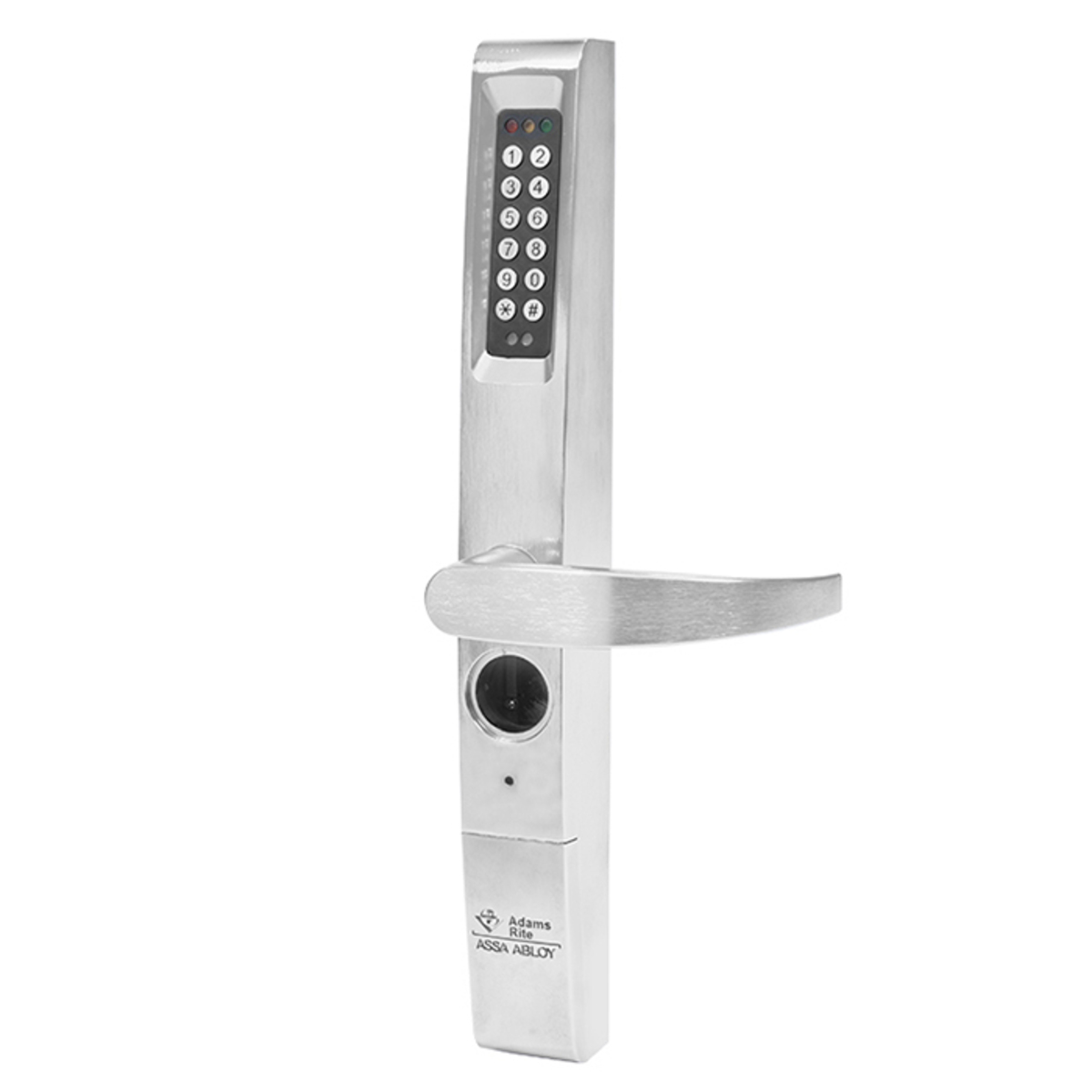

CRL DH3090AR01628 Adams Rite Clear Anodized eForce 3090 Push Button Trim

C.R. Laurence DH3090AR01628 Adams Rite Clear Anodized eForce 3090 Stand Alone Push Button Trim is a cutting-edge solution for keyless entry, designed specifically for Adams Rite deadlocks, deadlatches, and exit devices. This battery-operated control simplifies access with its ability to accommodate up to 150 users, including master and emergency users, along with two one-time codes for added flexibility. The eForce 3090-150 operates in three distinct modes: Standard, Passage, and Lockout, all programmable via an intuitive keypad. User-friendly operation is confirmed through a visual LED light and an audible alert from a Piezo horn. The device is surface mounted and features concealed fasteners, making it suitable for door thicknesses ranging from 1-3/4" to 2-1/4". In standard mode, users can unlock or unlatch the device by entering a programmed 2 to 7-digit code followed by the star (*) key, and simply rotating the lever downwards. The adjustable hold open time, ranging from 1 to 9 seconds, enhances convenience for busy environments. Designed for compatibility with aluminum and hollow metal doors, the eForce 3090-150 accepts any standard mortise cylinder with MS® cam, allowing for seamless integration into existing systems.

Adams Rite Clear Anodized eForce 3090 Stand Alone Push Button Trim

• Battery-operated keyless entry control
• Two finishes
• Can accommodate up to 150 users
• FCC Part 15 compliant
• Surface mounted with concealed fasteners. Suitable for 1-3/4" [44.5 mm]to 2-1/4" [57.2 mm] door thickness.

The eForce 3090-150 Keyless Entry is a battery-operated keyless entry control for Adams Rite deadlocks, deadlatches and exit devices, that is compatible with aluminum and hollow metal door applications. The device can accommodate up to 150 users, including master, supervisor, emergency users plus two one-time codes. The eForce 3090-150 can operate in three modes: Standard, Passage, and Lockout. All programming is accomplished via the keypad. Device operation is confirmed by both a visual LED light indicator and an audible sound generated by a Piezo horn. In the standard mode of operation, a programmed 2 to 7-digit character followedby a star (*) key allows for one entry when used with Adams Rite deadlatches or exit devices. When an authorized code is entered, rotate lever downward 90° to unlock or unlatch locking device. When released, lever returns to horizontal. The MS Deadlocks must always be relocked manually when used with the eForce 3090-150. Hold open time is adjustable from 1 to 9 seconds. eForce 3090-150 accepts any standard mortise cylinder with MS® cam, available separately.
