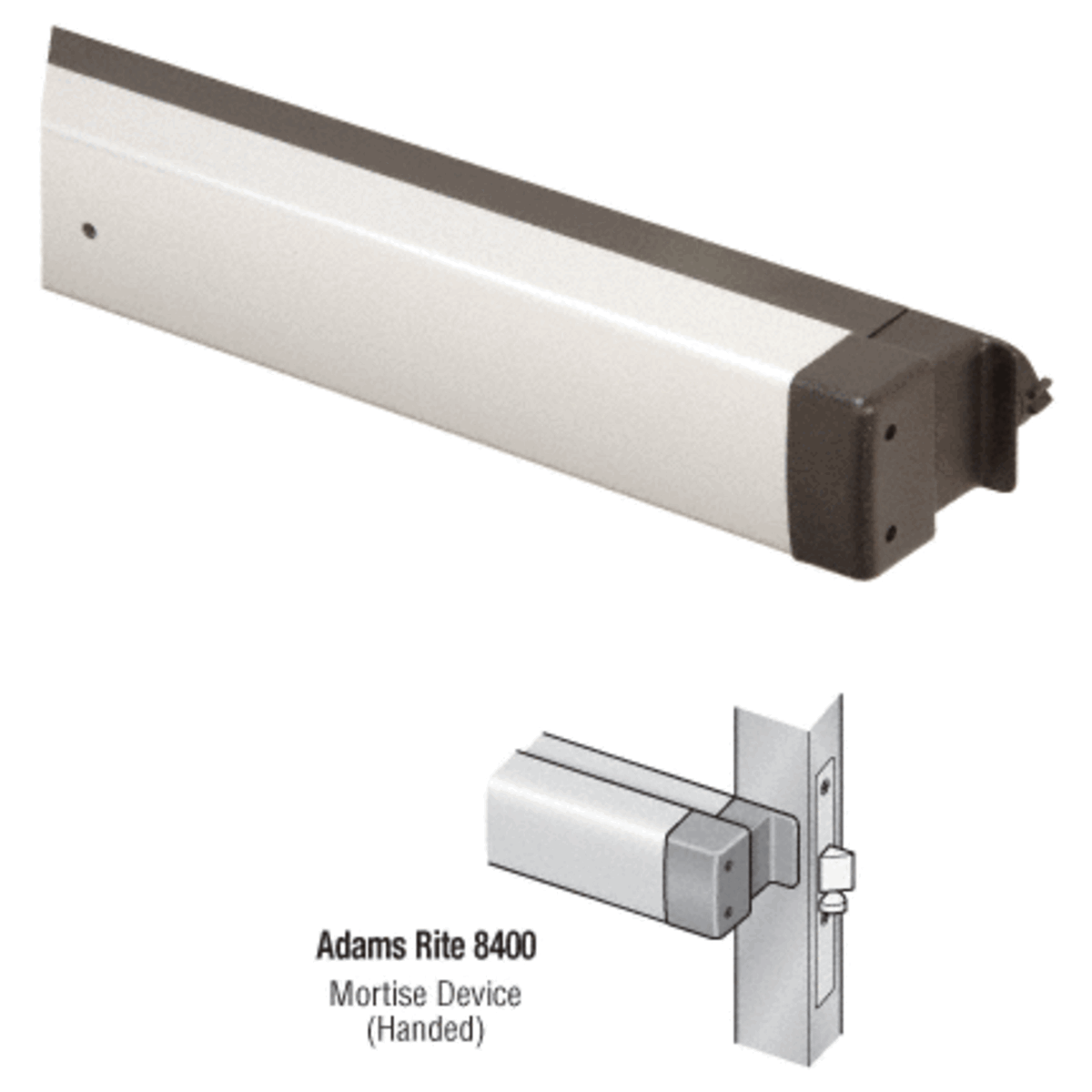

C.R. Laurence DH84111L048 Adams Rite Clear Anodized 8400 Series Panic Mortise Only Left Hand 48" is the ideal solution for narrow stile aluminum applications requiring a reliable life-safety exit device. This mortise locking solution is UL Listed and tested to ANSI A156.3, Grade 1, ensuring both durability and security. It is designed specifically for single door applications and fits door stiles as narrow as 2 inches (51 mm). Installation is straightforward, making it accessible for professionals and knowledgeable homeowners alike. The device features a standard hex key dogging mechanism, enhancing its ease of use during emergencies. Crafted from high-quality aluminum with a clear anodized finish, it combines aesthetic appeal with functionality. The panic bar has a base height of 2-3/4 inches and a projection of 2-5/8 inches, while the push pad width measures 29-1/4 inches, ensuring swift operation when needed. Recommended for various door types, including aluminum, wood, and hollow metal, the 8400 Series is a versatile choice for any building project. Mounting hardware is included for added convenience. Invest in safety and reliability with the C.R. Laurence DH84111L048 – a trusted choice for your architectural needs.
Adams Rite Clear Anodized 8400 Series Panic Mortise Only Left Hand 48"
The 8400 Series Narrow Stile Mortise Exit Device is designed for narrow stile aluminum applications that require a life-safety exit device with mortise locking solution. Designed for use in single door applications.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Ship via: No UPS - Common Carrier Only
Brand: Adams Rite
Certification: ANSI A156.3 Grade 1
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Height: 96
Door Thickness: 1-3/4
Door Width: 48
Finish/ Color:: Clear Anodized
Handing: Left Hand, Right Hand Reverse Bevel
Includes: Mounting Hardware
Material: Aluminum
Minimum Stile Width: 2
Model: 84111
Panic Bar Base Height: 2-3/4
Panic Bar Projection: 2-5/8
Panic Dogging: Standard Hex Key Dogging
Panic Type: Mortise Exit Devise
Push Pad Width: 29-1/4
Recommended Door Type: Aluminum, Wood, Hollow Metal
Replacement Parts: DL2170SCKDDU, DL2170Y8KDDU, Special Order
Series: 8400
Shipping Limitations: UPS Oversize Rate
UL Listed: Yes
