C.R. Laurence DH84122R048 Adams Rite 8400 Series Panic Mortise Only Right Hand 48" is expertly crafted for narrow stile aluminum door applications requiring a reliable life-safety exit solution. This device is designed for single door use, ensuring compliance with safety standards as it is UL Listed and meets ANSI A156.3, Grade 1 specifications. With a minimum stile width of just 2 inches, this exit device is adaptable to various door types, including aluminum, wood, and hollow metal. The sleek dark bronze anodized finish not only enhances its aesthetic appeal but also delivers durability for long-lasting performance. Installation is straightforward, making it a practical choice for building professionals and knowledgeable homeowners alike. Measuring 48 inches in width, the DH84122R048 features standard hex key dogging and a panic bar projection of 2-5/8 inches, providing ease of operation in emergency situations. The push pad width of 29-1/4 inches ensures comfortable access for all users. This device includes essential mounting hardware, offering a complete solution for your exit device needs. Trust in C.R. Laurence for quality and functionality in architectural hardware.

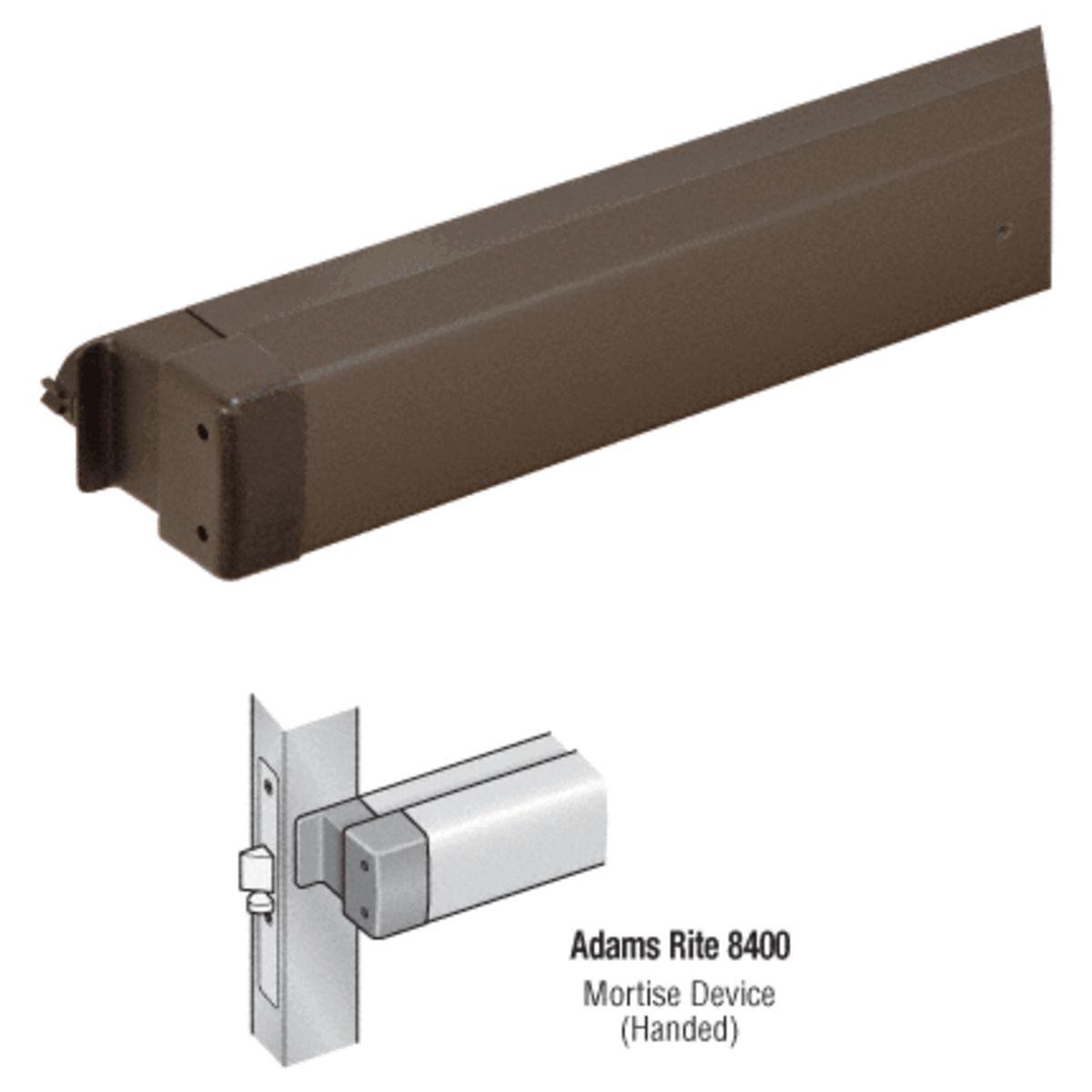

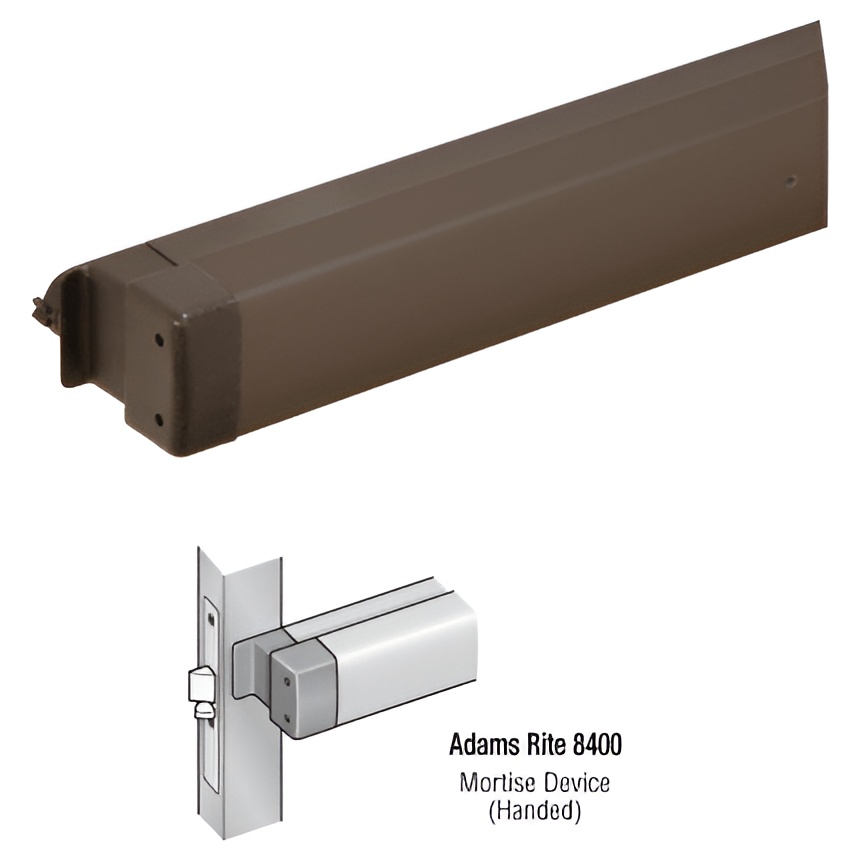

Adams Rite 8400 Series Panic Mortise Only Right Hand 48", Dark Bronze Anodized
The 8400 Series Narrow Stile Mortise Exit Device is designed for narrow stile aluminum applications that require a life-safety exit device with mortise locking solution. Designed for use in single door applications.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Ship via: No UPS - Common Carrier Only
Brand: Adams Rite
Certification: ANSI A156.3 Grade 1
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Height: 96
Door Thickness: 1-3/4
Door Width: 48
Finish/ Color:: Dark Bronze
Handing: Right Hand, Left Hand Reverse Bevel
Includes: Mounting Hardware
Material: Aluminum
Minimum Stile Width: 2
Model: 84222
Panic Bar Base Height: 2-3/4
Panic Bar Projection: 2-5/8
Panic Dogging: Standard Hex Key Dogging
Panic Type: Mortise Exit Device
Push Pad Width: 29-1/4
Recommended Door Type: Aluminum, Wood, Hollow Metal
Replacement Parts: DL2170SCKDDU, DL2170Y8KDDU, Special Order
Series: 8400
Shipping Limitations: UPS Oversize Rate
UL Listed: Yes
