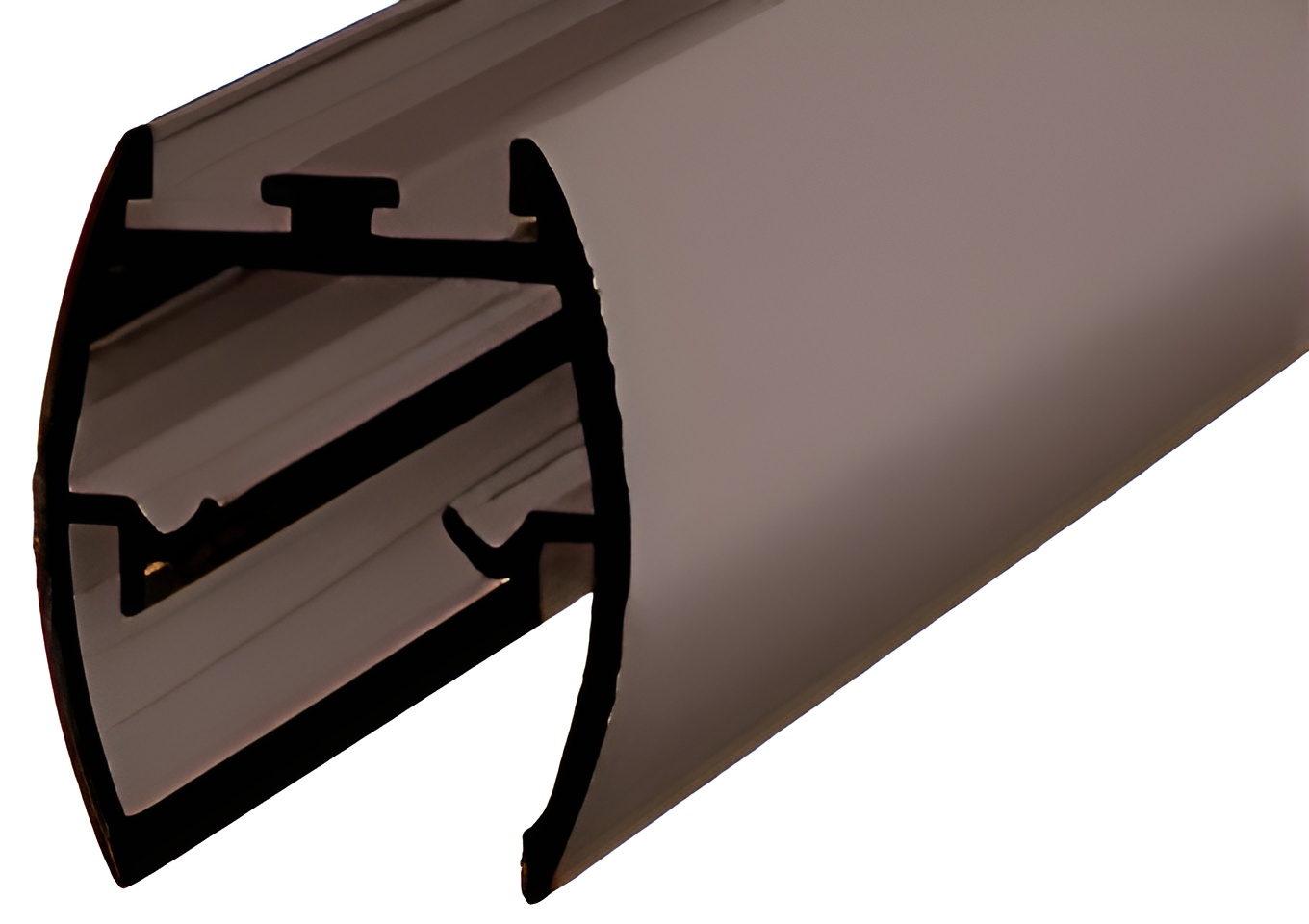

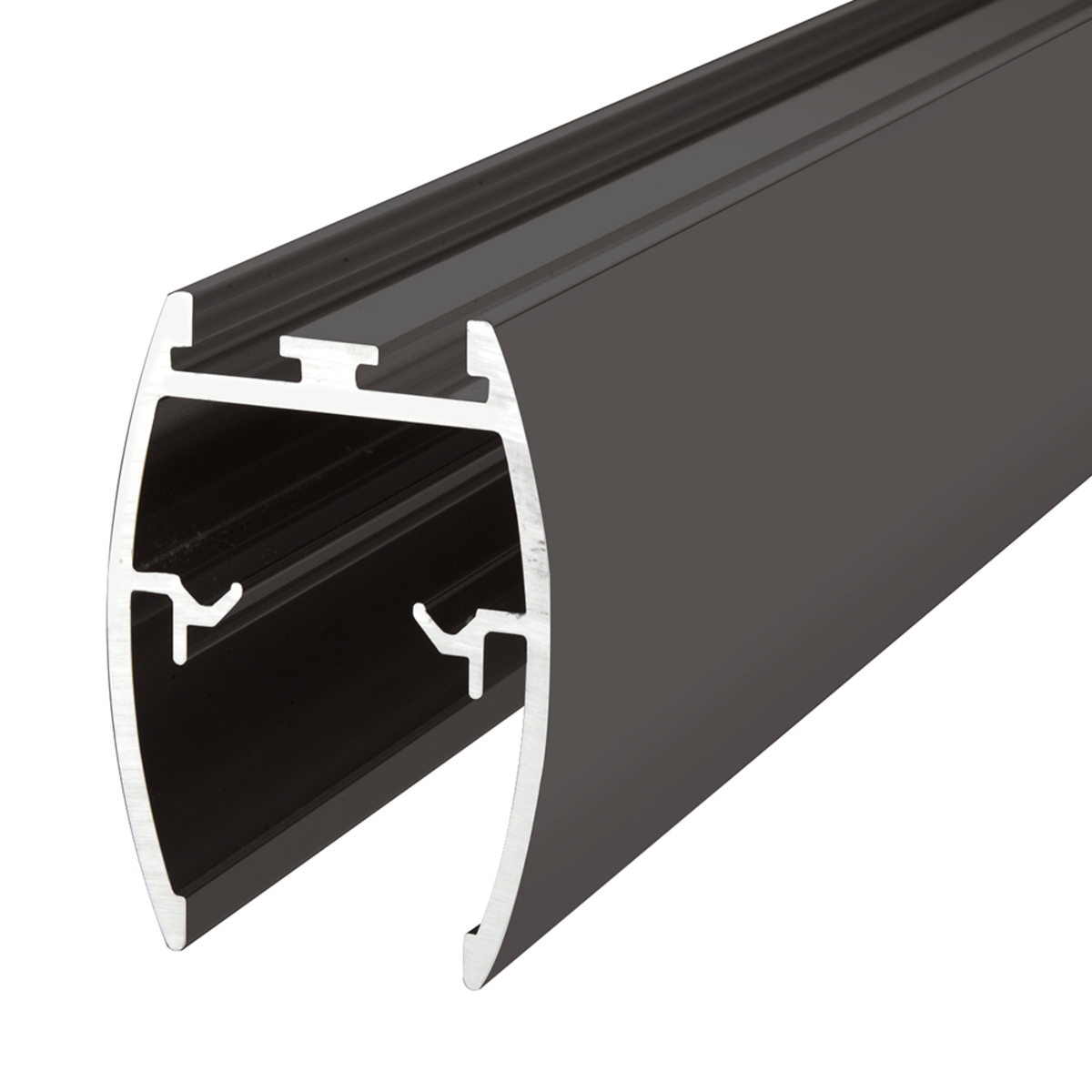

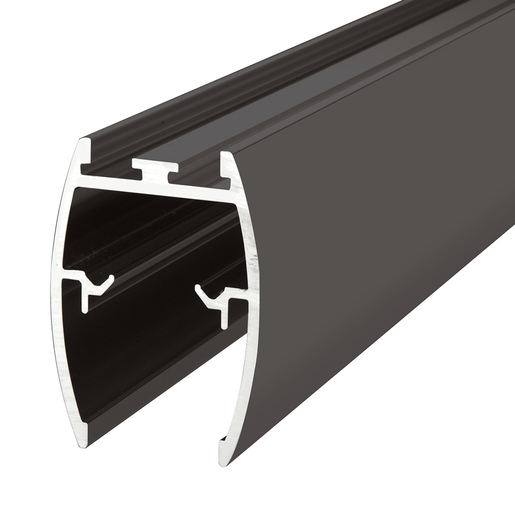

CRL DK610RB Oil Rubbed Bronze 72" Header for CK/DK Cottage Sliders

CRL DK610RB Oil Rubbed Bronze 72" Header for CK/DK Cottage Sliders

C.R. Laurence DK610RB Oil Rubbed Bronze 72" Header for CK/DK Cottage Series Sliders enhances the versatility of your frameless shower door installation. Designed specifically for the Cottage Series, this top header extrusion serves as a crown, creating a sleek and finished look while accommodating a range of configurations. With finishes available in Brite Anodized, Brite Gold Anodized, Brushed Nickel, and Oil Rubbed Bronze, it seamlessly matches existing shower kits. This header allows for the conversion of frameless shower door kits into angled enclosures or wider inline units, providing flexibility in design. You can easily customize your unit by combining individual supplementary extrusions and hardware components, or send a drawing to CRL for a tailored solution. Each custom kit includes all necessary components for installation, except for glass and silicone. The DK610RB is compatible with monolithic tempered glass, recommended in thicknesses of either 1/4" (6 mm) or 3/8" (10 mm). For optimal performance, the maximum slider sizes are specified, ensuring your installation meets your design requirements. Installation instructions are included for ease, making this product an ideal choice for both DIY enthusiasts and professionals looking for quality and reliability in their glazing projects.

Oil Rubbed Bronze 72" Header for CK/DK Cottage Series Sliders

• Individual Supplementary Extrusions and Hardware Components to Convert Our Frameless Shower Door Kits Into Angled Enclosures or Wider Inline Units
• Top Header Extrusion Acts as a Crown, and is Used in All Cottage Series Applications
• Brite Anodized, Brite Gold Anodized, Brushed Nickel, and Oil Rubbed Bronze Finishes to Match Our Kits
• Do It Yourself, or You Can Send Us a Drawing to Customize a Unit for You
• Use Monolithic Tempered Glass

DK Cottage Series components were especially designed by CRL to add versatility to our Frameless Sliding Shower Door Kits. They allow the option of adding additional panels to create a designer enclosure, or simply construct your own sliding unit by combining the various parts. Stock lengths of Headers, Header Fillers, Side Jambs, Bottom Sills, Sidelite Sills, and Clear Polycarbonate Vertical Jambs, along with Top Hangers and other accessory items round out the items available. Use these components to build the enclosure you require, or we can assist with your design. Email or fax us a drawing (with dimensions) of the shower opening and we will put together a customized kit for you that will include everything you will need (except the glass and the silicone). Installation instructions are included in each custom kit.


NOTE: All fixed panels of glass must be 3/8" (10 mm) thick.

SPECIFICATIONS:
Material: Extrusions (Aluminum), Towel Bar (Brass Tubing), Knob (Solid Brass)
Glass Thickness: 1/4" or 3/8" (6 or 10 mm) (Glass not included)
Recommended Maximum Slider Sizes: 1/4" (6 mm) Glass: 60" W x 72" H (1.52 x 1.83 m) or 72" W x 60" H (1.83 x 1.52 m); 3/8" (10 mm) Glass: 72" W x 80" H (1.83 x 2.03 m)
Glass Fabrication: Towel Bar – Two 1/2" (12 mm) Diameter Holes, 24" (610 mm) Center-to-Center; Knob – One 1/2" (12 mm) Diameter Hole; Top Hangers – Four 1/2" (12 mm) Diameter Holes (two per glass panel)


Product Warning:

Hardware Package includes Corners and Header Bracket required to convert Inline Shower Door Kit into an angled enclosure when used with the appropriate extrusions from above. Must be ordered separately. Polycarbonates are translucent in color.
