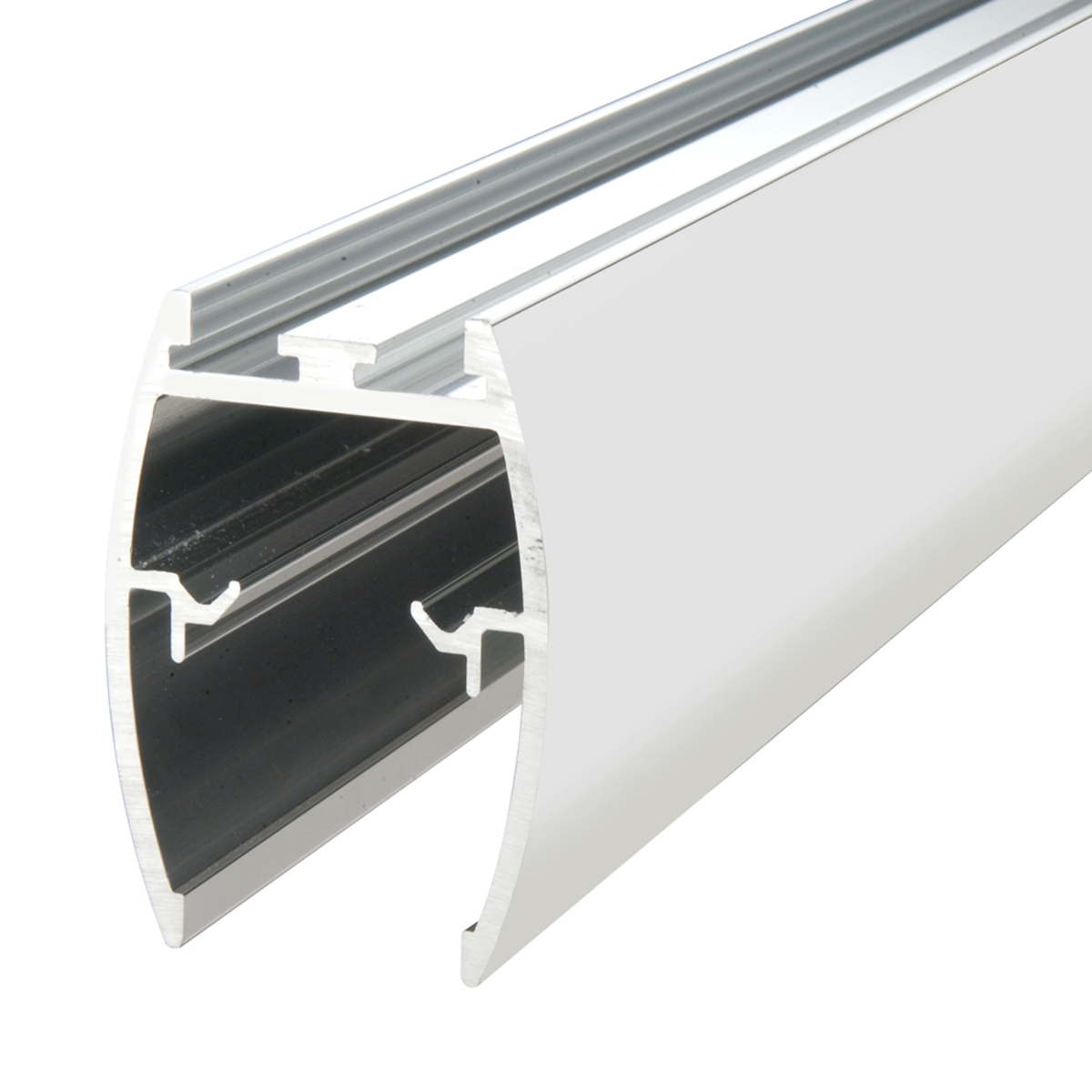

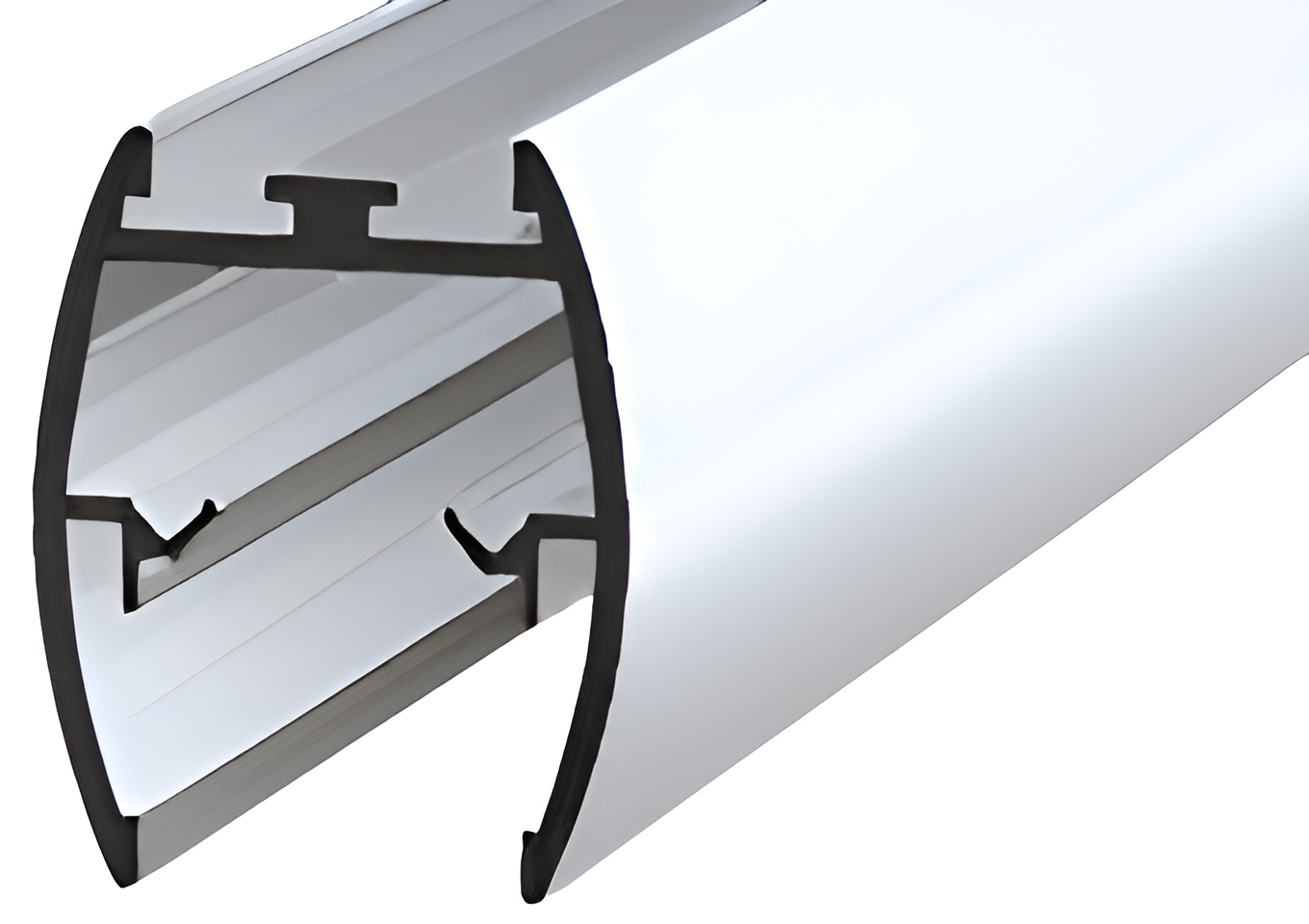

CRL DK61BA Brite Anodized 72" Header for CK/DK Cottage Sliders

CRL DK61BA Brite Anodized 72" Header for CK/DK Cottage Sliders

C.R. Laurence DK61BA Brite Anodized 72" Header for CK/DK Cottage Series Sliders is designed to enhance the versatility of frameless sliding shower door kits. This header extrusion serves as a crown element, seamlessly integrating into all Cottage Series applications. Crafted from high-quality aluminum, it is available in multiple finishes, including Brite Anodized, Brite Gold Anodized, Brushed Nickel, and Oil Rubbed Bronze, allowing for a cohesive look with your existing fixtures. The DK61BA header is not just about aesthetics; it provides the structural support necessary for creating custom shower enclosures. Whether you're looking to add angled enclosures or wider inline units, this product allows for endless configurations. The recommended glass thickness for optimal performance is 3/8" (10 mm), ensuring durability and safety. For those who prefer a hands-on approach, this product is designed for DIY installation, but C.R. Laurence also offers custom solutions. Simply send in your design requirements, and they will provide a comprehensive kit with all necessary components, excluding glass and silicone. Elevate your shower design possibilities with the C.R. Laurence DK61BA Header, a blend of functionality and style perfect for both professionals and discerning homeowners.

Brite Anodized 72" Header for CK/DK Cottage Series Sliders

• Individual Supplementary Extrusions and Hardware Components to Convert Our Frameless Shower Door Kits Into Angled Enclosures or Wider Inline Units
• Top Header Extrusion Acts as a Crown, and is Used in All Cottage Series Applications
• Brite Anodized, Brite Gold Anodized, Brushed Nickel, and Oil Rubbed Bronze Finishes to Match Our Kits
• Do It Yourself, or You Can Send Us a Drawing to Customize a Unit for You
• Use Monolithic Tempered Glass

DK Cottage Series components were especially designed by CRL to add versatility to our Frameless Sliding Shower Door Kits. They allow the option of adding additional panels to create a designer enclosure, or simply construct your own sliding unit by combining the various parts. Stock lengths of Headers, Header Fillers, Side Jambs, Bottom Sills, Sidelite Sills, and Clear Polycarbonate Vertical Jambs, along with Top Hangers and other accessory items round out the items available. Use these components to build the enclosure you require, or we can assist with your design. Email or fax us a drawing (with dimensions) of the shower opening and we will put together a customized kit for you that will include everything you will need (except the glass and the silicone). Installation instructions are included in each custom kit.


NOTE: All fixed panels of glass must be 3/8" (10 mm) thick.

SPECIFICATIONS:
Material: Extrusions (Aluminum), Jamb Seals (Polycarbonate), Towel Bar (Brass Tubing), Knob (Solid Brass)
Glass Thickness: 1/4" or 3/8" (6 or 10 mm) (Glass Not Included)
Recommended Maximum Slider Sizes: 1/4" (6 mm) Glass: 60" W x 72" H (1.52 x 1.83 m) or 72" W x 60" H (1.83 x 1.52 m); 3/8" (10 mm) Glass: 72" W x 80" H (1.83 x 2.03 m)
Glass Fabrication: Towel Bar – Two 1/2" (12 mm) Diameter Holes, 24" (610 mm) Center-to-Center; Knob – One 1/2" (12 mm) Diameter Hole; Top Hangers – Four 1/2" (12 mm) Diameter Holes (Two Per Glass Panel)


Product Warning:

Hardware Package includes Corners and Header Bracket required to convert Inline Shower Door Kit into an angled enclosure when used with the appropriate extrusions from above. Must be ordered separately. Polycarbonates are translucent in color.
