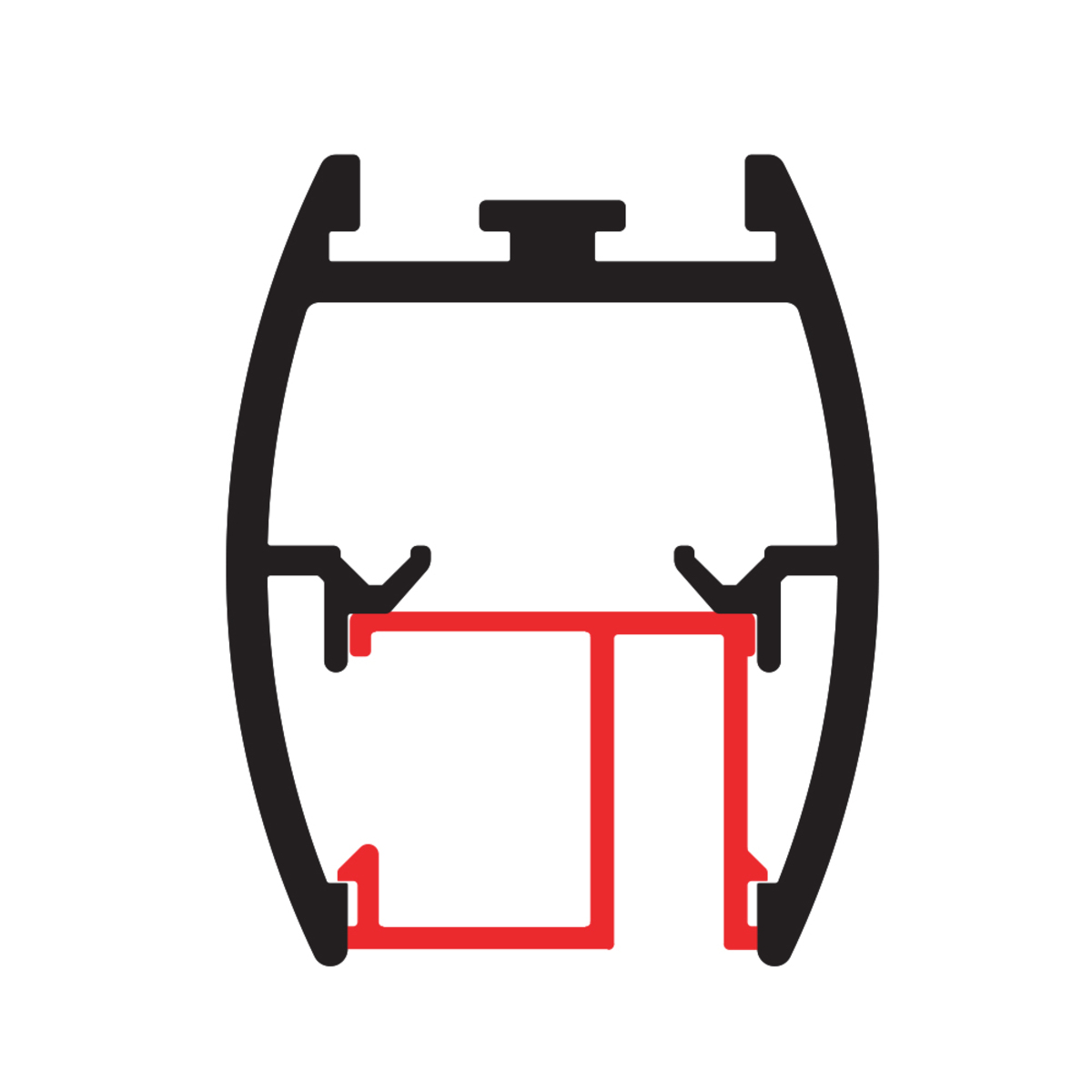

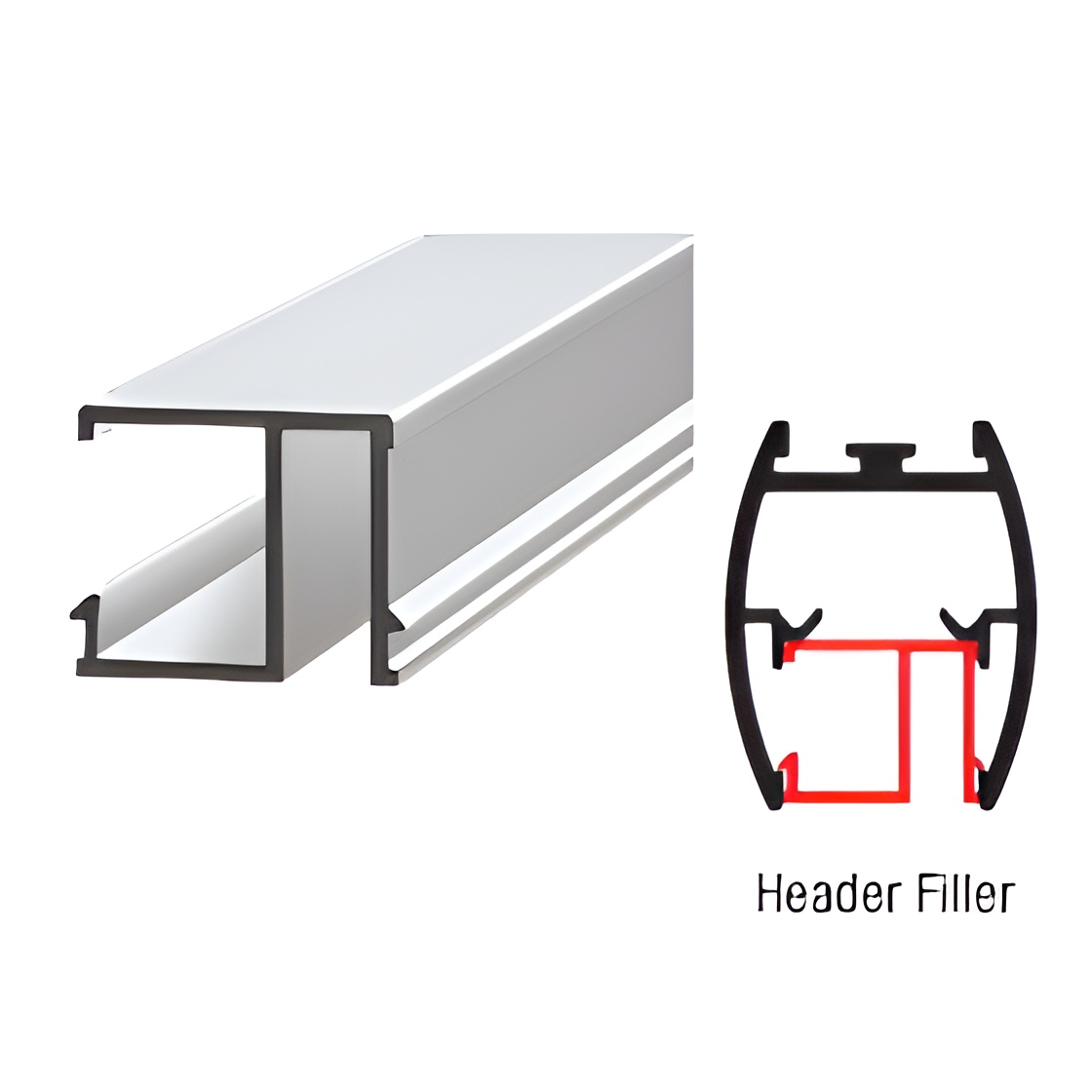

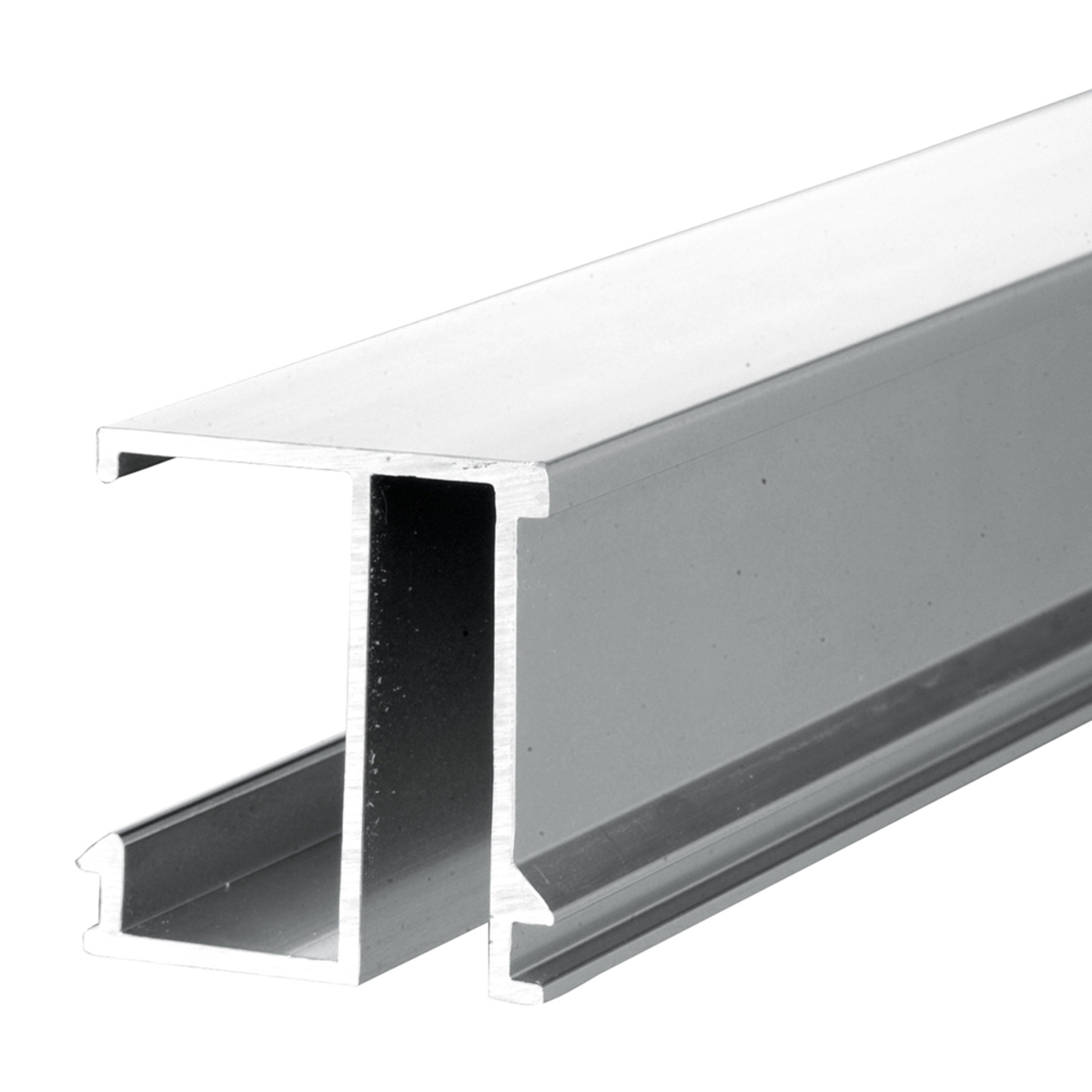

CRL DK62BA Brite Anodized 72" Header Filler for CK/DK Cottage Sliders

CRL DK62BA Brite Anodized 72" Header Filler for CK/DK Cottage Sliders

C.R. Laurence DK62BA Brite Anodized 72" Header Filler for CK/DK Cottage Series Sliders is an essential component designed to enhance the versatility of frameless sliding shower door kits. This header filler is specifically used in conjunction with fixed panels, allowing for the creation of stylish angled enclosures or wider inline units. The product is available in an attractive Brite Anodized finish, as well as Brite Gold Anodized, Brushed Nickel, and Oil Rubbed Bronze options, ensuring a perfect match with your existing hardware. Crafted from durable aluminum extrusions, this header filler is suitable for glass thicknesses of 1/4" or 3/8". It is designed to accommodate substantial slider sizes, with recommended maximum dimensions of up to 72" W x 80" H for 3/8" glass. For ease of installation, it includes comprehensive instructions and the option to customize your kit by sending a drawing of your shower opening. Whether you're a DIY enthusiast or a building professional, the DK62BA Header Filler provides the flexibility to create a bespoke shower enclosure that meets your design aspirations. Please note that all fixed glass panels must be 3/8" thick.

Brite Anodized 72" Header Filler for CK/DK Cottage Series Sliders

• Individual Supplementary Extrusions and Hardware Components to Convert Our Frameless Shower Door Kits Into Angled Enclosures or Wider Inline Units
• Header Filler Used Where Fixed Panels are Located
• Brite Anodized, Brite Gold Anodized, Brushed Nickel, and Oil Rubbed Bronze Finishes to Match Our Kits
• Do It Yourself, or You Can Send Us a Drawing to Customize a Unit for You
• Use Monolithic Tempered Glass

CRL Header Filler for CK/DK Cottage Series Sliders components add versatility to our Frameless Sliding Shower Door Kits, and allows you the option of adding additional panels to create a designer enclosure, or simply construct your own sliding unit by combining the various parts. Stock lengths of Headers, Header Fillers, Bottom Sills, Sidelite Sills, Side Jambs, Top Hangers and other accessory items complete the selection.


Use these components to build the enclosure you require, or we can assist with your design. Email or fax us a drawing (with dimensions) of the shower opening and we will put together a customized kit for you that will include everything you will need (except the glass and the silicone). Installation instructions are included in each custom kit.

NOTE: All fixed panels of glass must be 3/8" (10 mm) thick.

SPECIFICATIONS:
Material: Extrusions (Aluminum), Towel Bar (Brass Tubing), Knob (Solid Brass)
Glass Thickness: 1/4" or 3/8" (6 or 10 mm) (Glass not included)
Recommended Maximum Slider Sizes: 1/4" (6 mm) Glass: 60" W x 72" H (1.52 x 1.83 m) or 72" W x 60" H (1.83 x 1.52 m); 3/8" (10 mm) Glass: 72" W x 80" H (1.83 x 2.03 m)
Glass Fabrication: Towel Bar – Two 1/2" (12 mm) Diameter Holes, 24" (610 mm) Center-to-Center; Knob – One 1/2" (12 mm) Diameter Hole; Top Hangers – Four 1/2" (12 mm) Diameter Holes (two per glass panel)


Product Warning:

Hardware Package includes Corners and Header Bracket required to convert Inline Shower Door Kit into an angled enclosure when used with the appropriate extrusions from above. Must be ordered separately. Polycarbonates are translucent in color.
